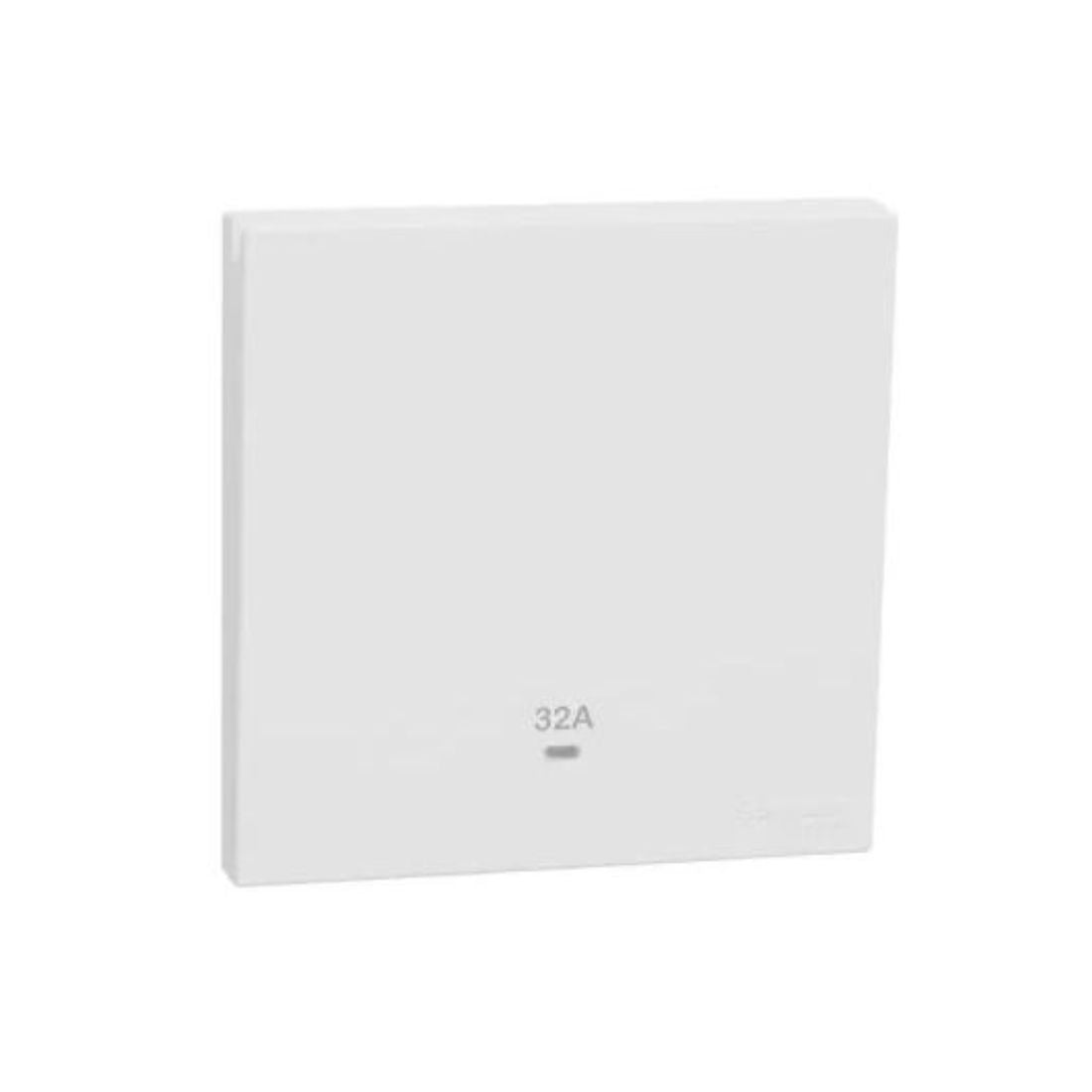

Schneider Electric Momentary Switch 32A 250V 1G E8731D32N_WE - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Momentary Switch
Description
Schneider Electric E8731D32N_WE Momentary Switch is a type of electrical switch that is designed to be activated only for a brief moment when it is pressed or held down. When pressing the button, it makes an electrical connection, and when it releases, the connection is broken. This is in contrast to a toggle switch, which maintains its state (on or off) until it is manually switched to the opposite state.
32A is the switch that can handle a maximum current of 32 amperes. This is a relatively high current rating, indicating it can be used for heavy-duty applications. 250V is the maximum voltage that the switch is rated for, which is suitable for standard household or industrial electrical systems. 1G is the number of gangs or poles the switch has. A 1G switch typically means it has a single gang or pole, which means it controls a single electrical circuit.
Overall, the Schneider Electric E8731D32N_WE Momentary Switch is designed for applications that require a high current capacity of 32A and can handle up to 250V. It's a single-pole (1G) switch, and it's white in color, which is a standard color for switches in many environments.
Features
- Control a single electrical circuit
- Surface, flush-mounted
- Single-pole switch
Brand | Schneider Electric |
Item Name | Momentary Switch |
Model | E8731D32N_WE |
Color | White |
Depth | 35mm |
Device Application | Control |
Device Mounting | Flush, Surface |
Embedding Depth | 21.2mm |
Height | 86mm |
IP Degree Of Protection | IP20 |
Material | PC (Polycarbonate) |
Number Of Gangs | 1 Gangs |
Number Of Rocker | 1 |
Range | AvatarOn |
Range Of Product | AvatarOn C |
Switch Function | 2-Pole |
Width | 86 mm |
Local Signalling | With Light Indicator, LED |
Connections - Terminals | Screw Terminal |
Quantity | 1 Pcs |
