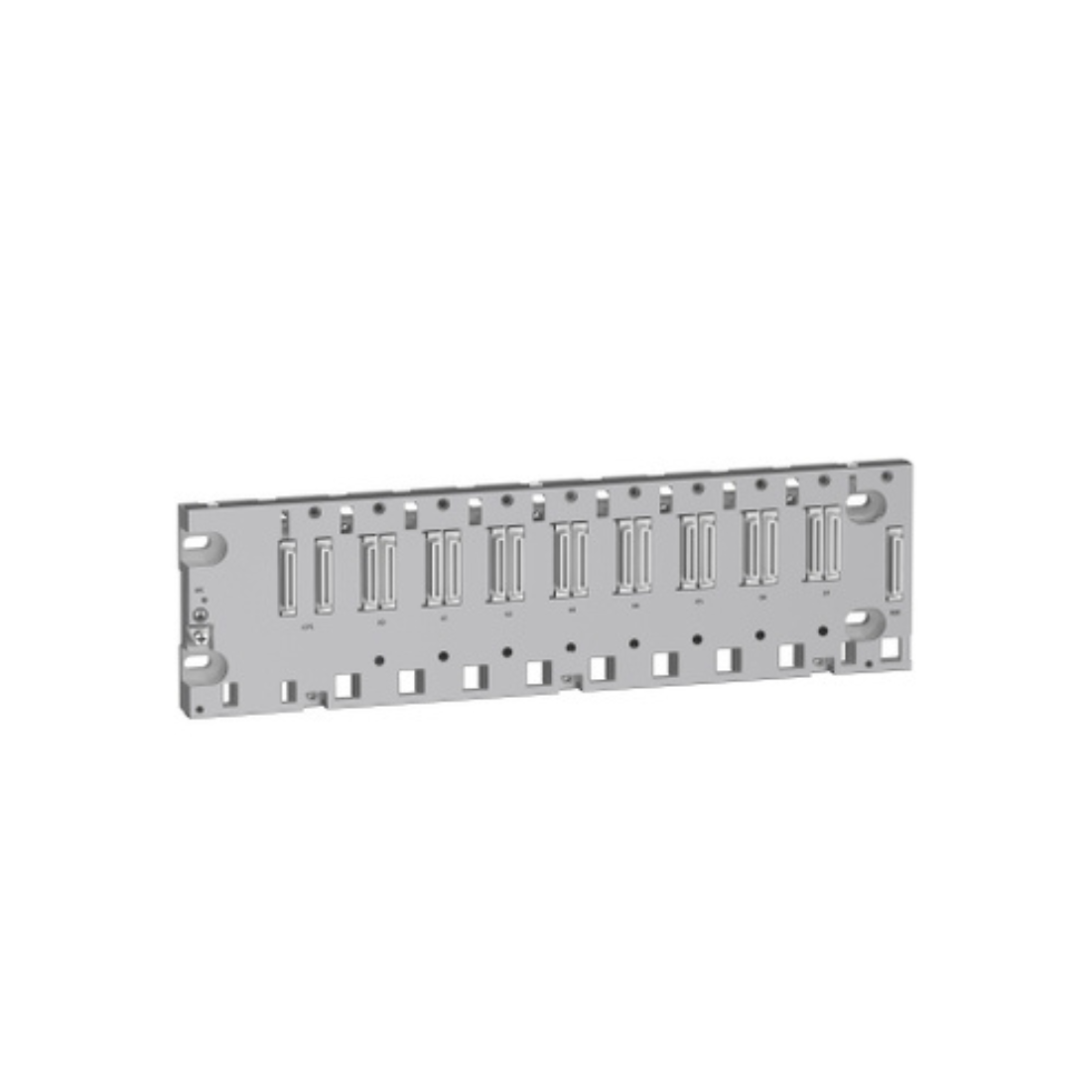

Schneider Electric Modicon X80 Ruggedized Rack 8 Slots Ethernet Backplane BMEXBP0800H
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Ruggedized Rack
Description
Schneider Electric BMEXBP0800H Ruggedized Rack is part of the Modicon X80 series, a common module platform for the Modicon M580 and M340 programmable automation controllers (PACs). This Ethernet backplane rack is an accessory for programmable automation controllers. This 8-slot dual Ethernet and X-Bus backplane provides 8 slots with 8 Ethernet and X-Bus ports for mixed modules. It can be used in harsher environments and can operate in an extended temperature range of -25°C to +70°C. This is an Ethernet rack backplane with a current of 164 mA at 24 V DC and 64 mA at 3.3 V DC.
Schneider Electric BMEXBP0800H Modicon X80 Ruggedized Rack is equipped with a connector expansion module (XBE) for electrical connection. It offers 1700000 hours MTBF. It has an IP20 certification. Suitable for harsh environments and medium to large process applications. Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. This Ethernet backplane rack supports application-specific modules, I/O modules, BMXCPS power supplies, BMX processors, and BME processors.
Modicon X80 consists of a common platform with compatible modules that reduces maintenance and training costs with the same spare parts in stock and unique training for multiple programmable automation controllers (PACs).
Features
- Used in harsher environments and can operate in an extended temperature range of -25°C to +70°C.
- IP20 certification
- Provides 8 slots with 8 Ethernet and X-Bus ports for mixed modules.
| Brand | Schneider Electric |
| Item Name | Ruggedized Rack |
| Model | BMEXBP0800H |
| Accessory / Separate Part Type | Ruggedized Rack |
| Current Consumption | 64 mA at 3.3 V DC, 164 mA at 24 V DC |
| Fixing Mode | By 4 screws - diameter: 4.32-6.35 mm, mounting on panel, by 4 M6 screws, mounting on plate, by clips, mounting on 35 mm symmetrical DIN rail |
| IP Degree Of Protection | IP20 |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Protective Treatment | Conformal Coating |
| Range Of Product | Modicon X80 |
| Number Of Slots | 8 bus X + Ethernet |
| Relative Humidity | 5-95 % without condensation |
| MTBF Reliability | 1700000 H |
| Ambient Air Temperature For Operation | -25-70 °C |
| Compatibility | I/O module, BMX processor, specific application module, BMXCPS power supply, BME processor |
| Electrical Connection | 1 connector (XBE) expansion module |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0 |
| Environmental Characteristic | Gas resistant class Gx conforming to ISA S71.04, gas resistant class 3C4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, sand resistant class 3S4 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, mold growth resistant class 3B2 conforming to IEC 60721-3-3, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, hazardous location class I division 2 |
| Weight | 1.06 kg |
