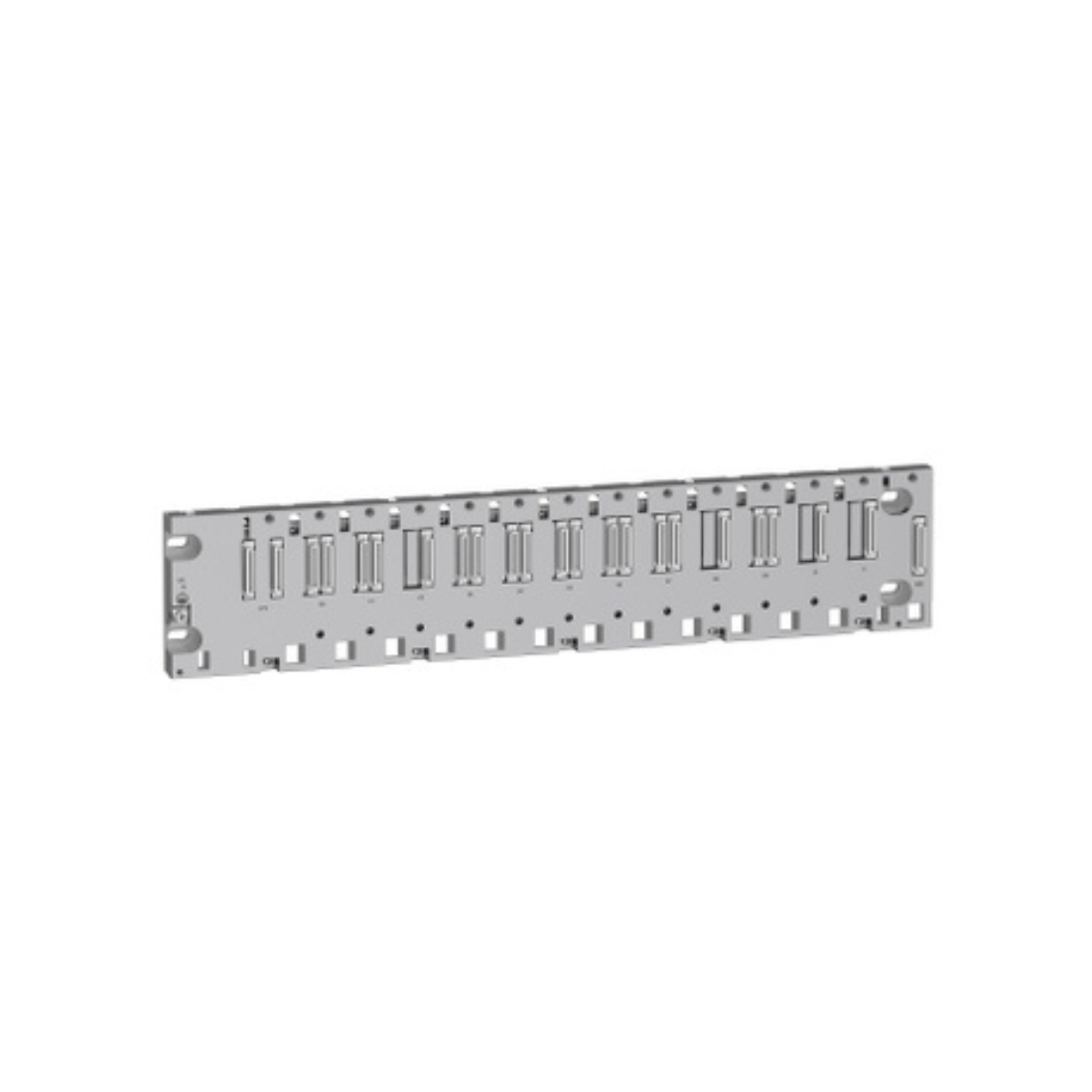

Schneider Electric Modicon X80 Ruggedized Rack 12 Slots Ethernet Backplane BMEXBP1200H

Name: Schneider Electric Modicon X80 Ruggedized Rack 12 Slots Ethernet Backplane BMEXBP1200H
Brand: Schneider Electric
Price: 4285.09 AED
Availability: InStock

AED 4,285.09

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Ruggedized Rack

Description

Schneider Electric BMEXBP1200H Ruggedized Rack is part of the Modicon X80 series, a common module platform for the Modicon M580 and M340 programmable automation controllers (PACs). This Ethernet backplane rack is an accessory for programmable automation controllers. This 12-slot dual Ethernet and X-Bus backplane provides 12 slots with 8 Ethernet and X-Bus ports for mixed modules and 4 X-Bus ports for X-Bus modules. It can be used in harsher environments and can operate in an extended temperature range of -25°C to +70°C.

Schneider Electric BMEXBP1200H Modicon X80 Ruggedized Rack is an Ethernet rack backplane with a current of 164 mA at 24 V DC and 86 mA at 3.3 V DC. It is equipped with a connector expansion module (XBE) for electrical connection. It offers 1500000 hours MTBF and it has an IP20 certification. Suitable for harsh environments and medium to large process applications. Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack supports application-specific modules, I/O modules, BMXCPS power supplies, BMX processors, and BME processors.

Modicon X80 consists of a compatible modules common platform that reduces maintenance and training costs with the same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Features

Used in harsher environments and can operate in an extended temperature range of -25°C to +70°C.
IP20 certification
Provides 12 slots with 8 Ethernet and X-Bus ports for mixed modules and 4 X-Bus ports for X-Bus modules.

Specifications

Brand : Schneider Electric

Item Name : Ruggedized Rack

Model : BMEXBP1200H

Accessory / Separate Part Type : Ruggedized Rack

Current Consumption : 164 mA at 24 V DC, 86 mA at 3.3 V DC

Fixing Mode : By 4 M6 screws, mounting on plate, by 4 screws - diameter: 4.32-6.35 mm, mounting on panel

IP Degree Of Protection : IP20

Certifications : CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22

Protective Treatment : Conformal Coating

Range Of Product : Modicon X80

Number Of Slots : 8 bus X + Ethernet, 4 bus X

Relative Humidity : 5-95 % without condensation

MTBF Reliability : 1500000 H

Ambient Air Temperature For Operation : -25-70 °C

Compatibility : I/O module, BMX processor, specific application module, BMXCPS power supply, BME processor

Electrical Connection : 1 connector (XBE) expansion module

Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive

Standards : EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0

Environmental Characteristic : Gas resistant class Gx conforming to ISA S71.04, gas resistant class 3C4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, sand resistant class 3S4 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, mold growth resistant class 3B2 conforming to IEC 60721-3-3, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, hazardous location class I division 2

Weight : 1.377 kg
