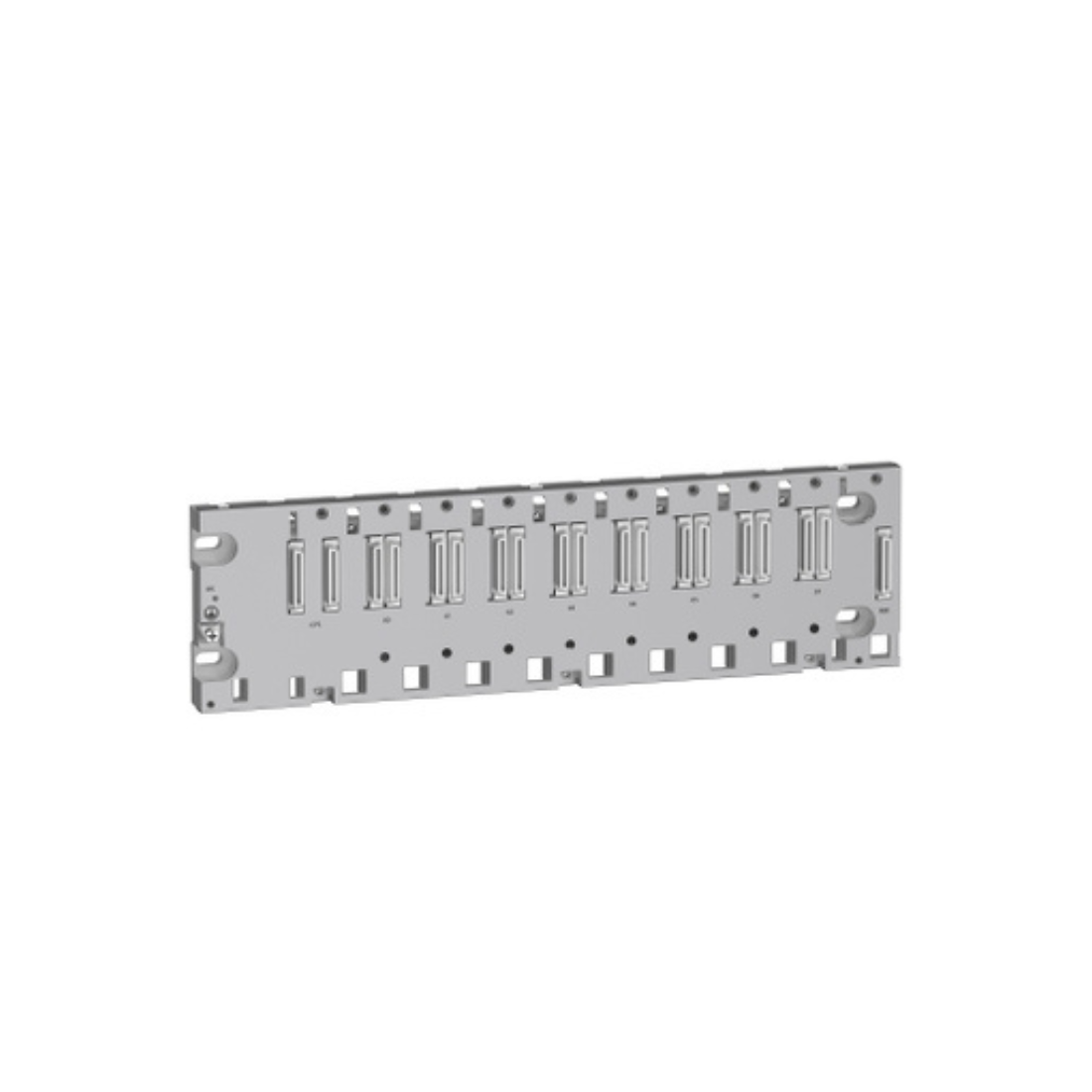

Schneider Electric Modicon X80 Rack 8 Slots Ethernet Backplane BMEXBP0800

AED 3,383.37

(Price Includes VAT)

Delivery truck icon

Order Now & Get it by 2 days

Shop logo

Sold by: Marketplace

Free delivery inside Dubai on all orders with no order limit. Pay in 4 interest-free installments for Dubai orders using Tabby.
Cash on delivery payment method icon
Cash on Delivery
7 Days Returnable icon
7 Days Returnable
15+ Years Of Trust icon
15+ Years Of Trust
15+ Branches icon
15+ Branches
Quantity

Brand : Schneider Electric

Type : Rack

Collections

Description

Schneider Electric BMEXBP0800 Modicon X80 Rack is part of the Modicon X80 series, a common module platform for the Modicon M580 and M340 programmable automation controllers (PACs). This Ethernet backplane rack is an accessory for programmable automation controllers. This 8-slot dual Ethernet and X-Bus backplane provides 8 slots with 8 Ethernet and X-Bus ports for mixed modules. It is robust, high quality, and based on the latest innovative technology. This is an Ethernet rack backplane with a current of 164 mA at 24 V DC and 64 mA at 3.3 V DC.

Schneider Electric BMEXBP0800 Modicon X80 Rack is equipped with a connector expansion module (XBE) for electrical connection. It offers 1700000 hours MTBF. It has an IP20 certification. It is suitable for medium and large process applications. Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. This Ethernet backplane rack supports application-specific modules, I/O modules, BMXCPS power supplies, BMX processors, and BME processors.

Modicon X80 consists of a common platform with compatible modules that reduces maintenance and training costs with the same spare parts in stock, as well as unique training for multiple programmable automation controllers (PACs).

Features
  • It is robust, high quality, and based on the latest innovative technology.
  • IP20 certification
  • It has a current of 164 mA at 24 V DC and 64 mA at 3.3 V DC.
Specifications
Brand Schneider Electric
Item Name Rack
Model BMEXBP0800
Accessory / Separate Part Type Rack
Current Consumption 64 mA at 3.3 V DC, 164 mA at 24 V DC
Fixing Mode By 4 screws - diameter: 4.32-6.35 mm, mounting on panel, by 4 M6 screws, mounting on plate, by clips, mounting on 35 mm symmetrical DIN rail
IP Degree Of Protection IP20
Range Of Product Modicon X80
Number Of Slots 8 bus X + Ethernet
Relative Humidity 5-95 % without condensation
MTBF Reliability 1500000 H
Ambient Air Temperature For Operation 0-60 °C
Compatibility I/O module, BMX processor, specific application module, BMXCPS power supply, BME processor
Electrical Connection 1 connector (XBE) expansion module
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Weight 1.06 kg
