Schneider Electric Modicon X80 Rack 12 Slots Ethernet Backplane BMEXBP1200
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Rack
Description

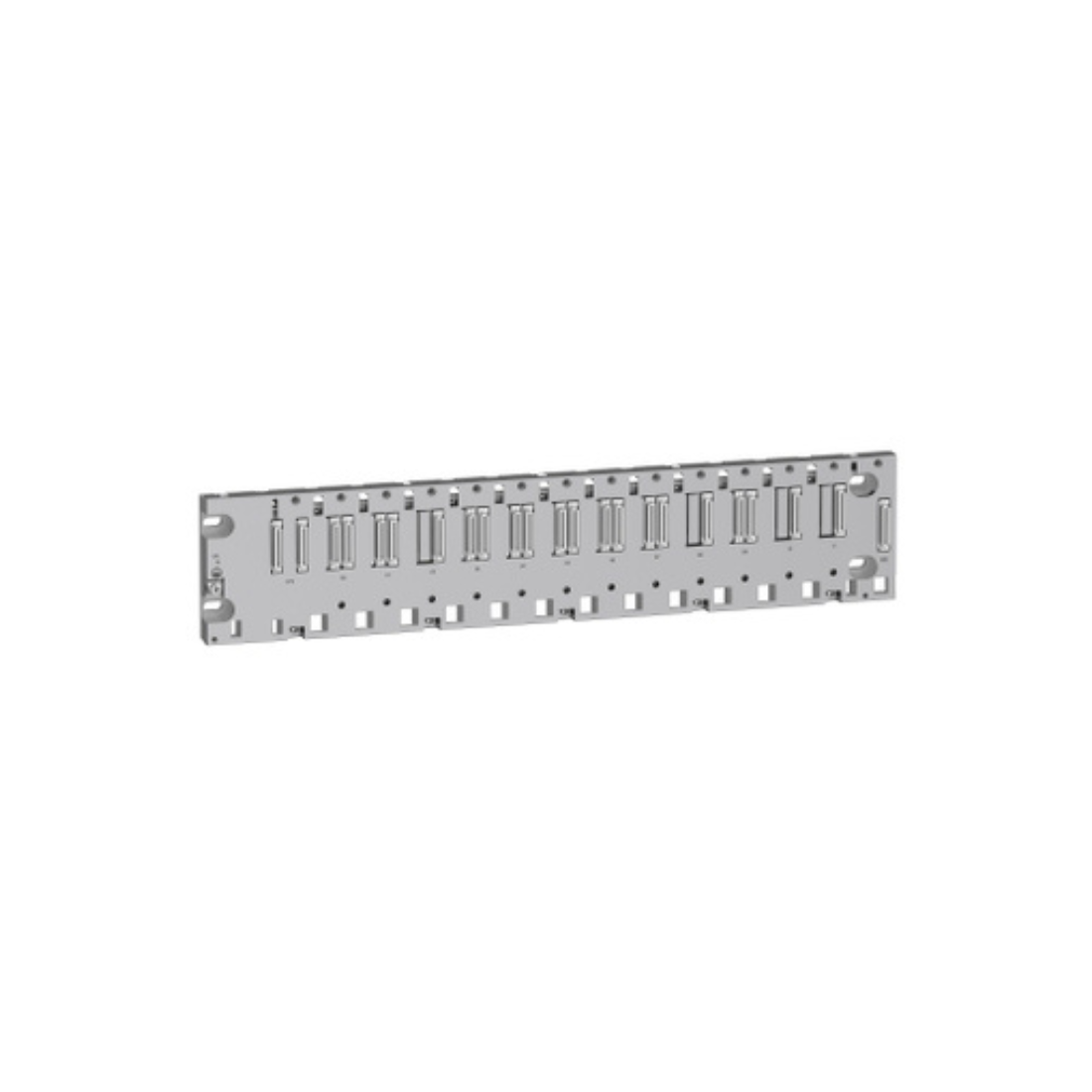

Schneider Electric BMEXBP1200 Rack is part of the Modicon X80 series, a common module platform for the Modicon M580 and M340 programmable automation controllers (PACs). This Ethernet backplane rack is an accessory for programmable automation controllers. This 12-slot dual Ethernet and X-Bus backplane provides 12 slots with 8 Ethernet and X-Bus ports for mixed modules and 4 X-Bus ports for X-Bus modules. It is robust, high quality, and based on the latest innovative technology. This is an Ethernet rack backplane with a current of 164 mA at 24 V DC and 86 mA at 3.3 V DC.
Schneider Electric BMEXBP1200 Modicon X80 Rack is equipped with a connector expansion module (XBE) for electrical connection. It offers 1500000 hours MTBF. It has an IP20 certification. It is suitable for medium and large process applications. Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. This Ethernet backplane rack supports application-specific modules, I/O modules, BMXCPS power supplies, BMX processors, and BME processors.
Modicon X80 consists of a common platform with compatible modules that reduces maintenance and training costs with the same spare parts in stock, as well as unique training for multiple programmable automation controllers (PACs).
Features
- It is robust, high quality, and based on the latest innovative technology.
- IP20 certification
- It has a current of 164 mA at 24 V DC and 86 mA at 3.3 V DC
| Brand | Schneider Electric |
| Item Name | Rack |
| Model | BMEXBP1200 |
| Accessory / Separate Part Type | Rack |
| Current Consumption | 164 mA at 24 V DC, 86 mA at 3.3 V DC |
| Fixing Mode | By 4 M6 screws, mounting on plate, by 4 screws - diameter: 4.32-6.35 mm, mounting on panel |
| IP Degree Of Protection | IP20 |
| Range Of Product | Modicon X80 |
| Number Of Slots | 8 bus X + Ethernet, 4 bus X |
| Relative Humidity | 5-95 % without condensation |
| MTBF Reliability | 1500000 H |
| Ambient Air Temperature For Operation | 0-60 °C |
| Compatibility | I/O module, specific application module, BMXCPS power supply, BMX processor, BME processor |
| Electrical Connection | 1 connector (XBE) expansion module |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Weight | 1.377 kg |
