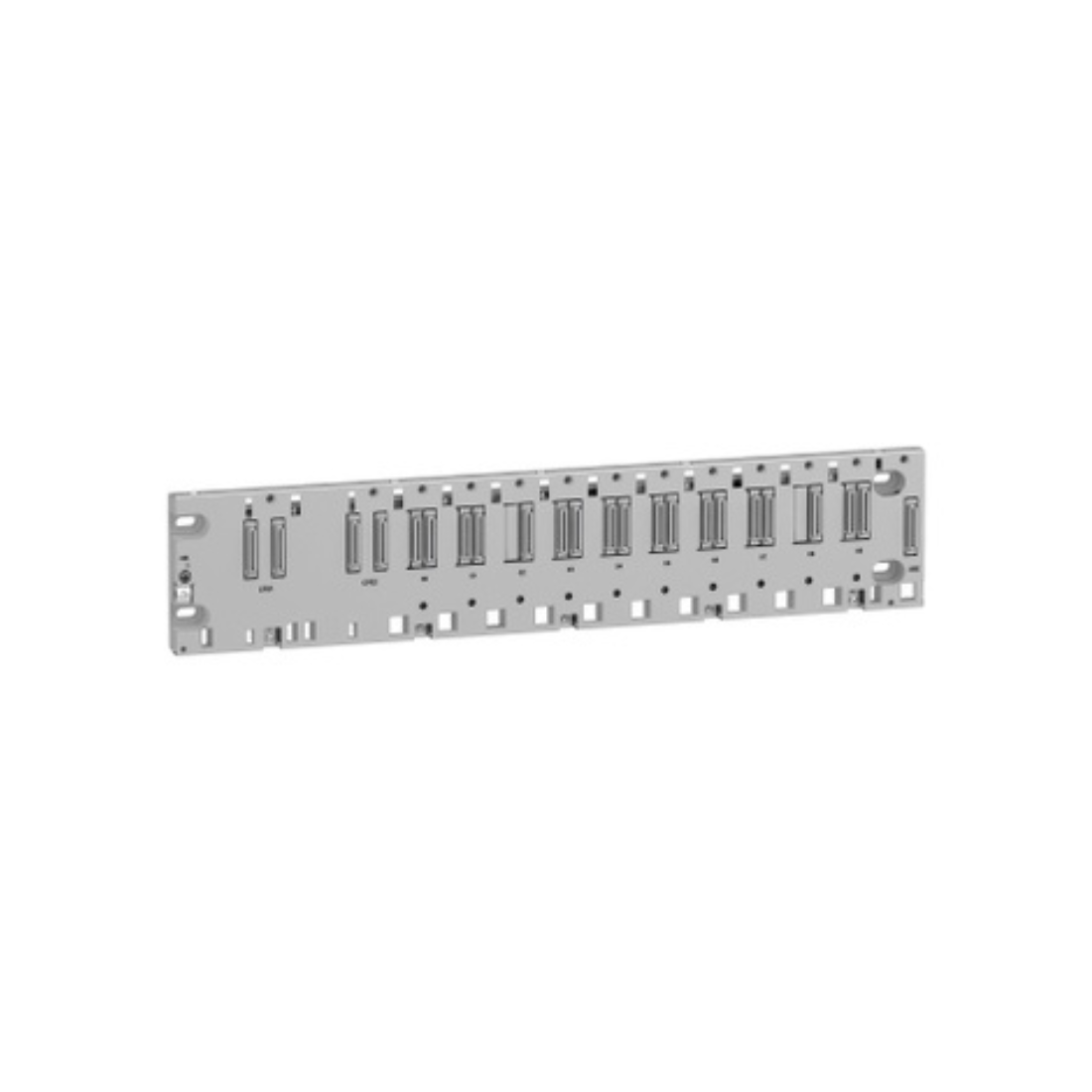

Schneider Electric Modicon X80 Rack 10 Slots Redundant PS Ethernet Backplane BMEXBP1002
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Rack
Description
Schneider Electric BMEXBP1002 Rack is part of the Modicon X80 series, a common module platform for the Modicon M580 and M340 programmable automation controllers (PACs). This Ethernet backplane rack is an accessory for programmable automation controllers. This 10-slot dual Ethernet and X-Bus backplane provides 10 slots with 8 Ethernet and X-Bus ports for mixed modules and 2 X-Bus ports for X-Bus modules. It is robust, high quality, and based on the latest innovative technology. This is an Ethernet rack backplane with a current of 162 mA at 24 V DC and 76 mA at 3.3 V DC.
Schneider Electric BMEXBP1002 Modicon X80 Rack is equipped with a connector expansion module (XBE) for electrical connection. It offers 1770000 MTBF hours. It has an IP20 certification. It weighs 1.37 kg. It is suitable for medium and large process applications. Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. This Ethernet backplane rack supports application-specific modules, I/O modules, BMXCPS4002, BMX processors, and BME processors.
Modicon X80 consists of a compatible modules common platform that reduces maintenance and training costs with the same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Features
- Suitable for medium and large process applications.
- IP20 certification
- Provides 10 slots with 8 Ethernet and X-Bus ports for mixed modules and 2 X-Bus ports for X-Bus modules.
| Brand | Schneider Electric |
| Item Name | Rack |
| Model | BMEXBP1002 |
| Accessory / Separate Part Type | Rack |
| Current Consumption | 162 mA at 24 V DC, 76 mA at 3.3 V DC |
| Fixing Mode | By 4 M6 screws, mounting on plate, by 4 screws - diameter: 4.32-6.35 mm, mounting on panel |
| IP Degree Of Protection | IP20 |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Protective Treatment | Conformal Coating |
| Range Of Product | Modicon X80 |
| Number Of Slots | 8 bus X + Ethernet, 2 bus X |
| Relative Humidity | 5-95 % without condensation |
| MTBF Reliability | 1770000 H |
| Ambient Air Temperature For Operation | 0-60 °C |
| Compatibility | Specific application module, I/O module, BMXCPS4002, BMX processor, BME processor |
| Electrical Connection | 1 connector (XBE) expansion module |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Weight | 1.37 kg |
