Schneider Electric Modicon X80 Power Supply Module X80 24-48V Isolated DC Severe Environments BMXCPS3020H
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Power Supply Module
Description

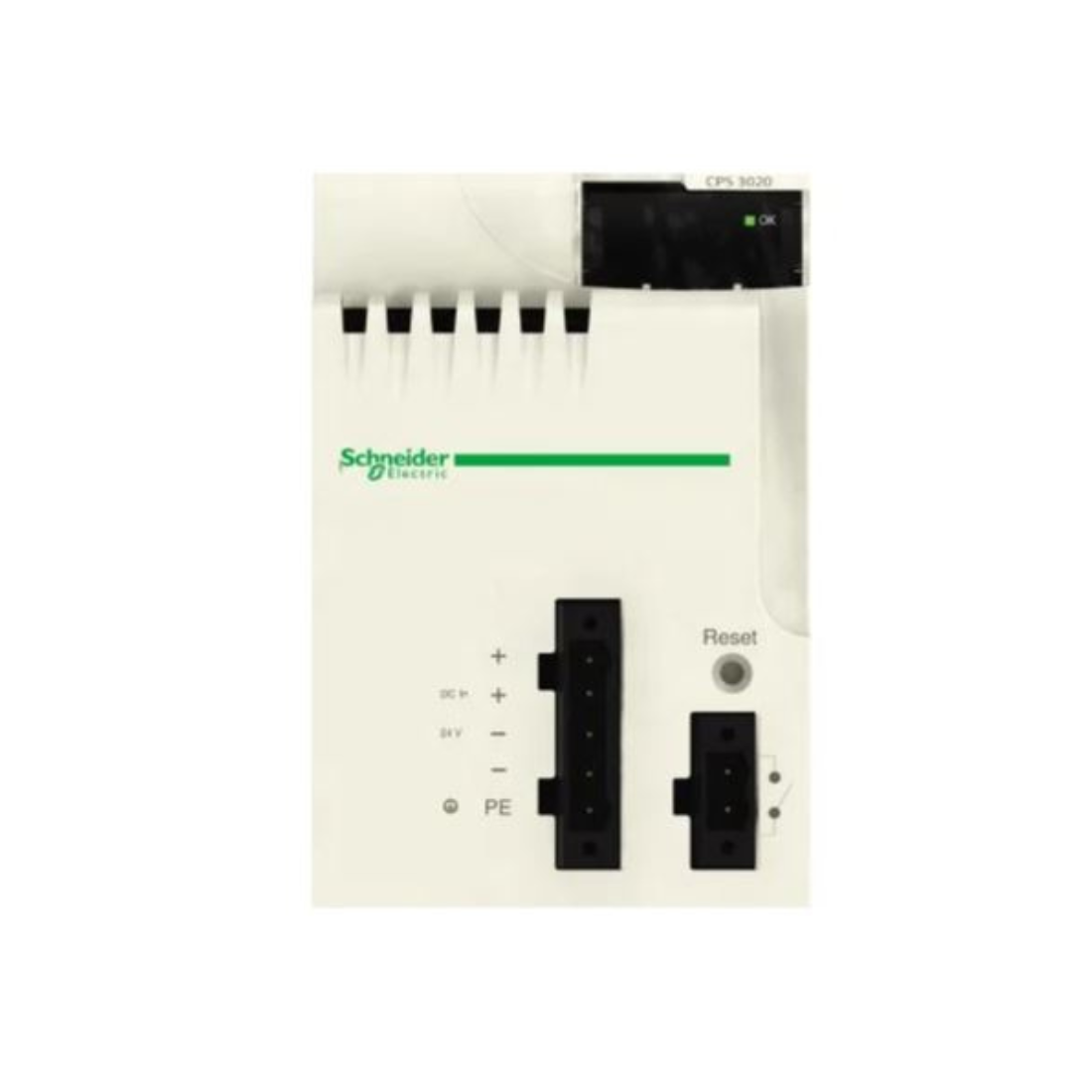

Schneider Electric BMXCPS3020H Power Supply Module is part of the Modicon X80 series, a common module platform for the Modicon M580 and M340 programmable automation controllers (PACs). This power supply module features an isolated primary voltage of 24V to 48V DC. It is a power supply module with a secondary power of 31.2 W at 24 V DC, a current at a secondary voltage of 4.5 A at 3.3 V DC, and a maximum power dissipation of 8.5 W.
Schneider Electric BMXCPS3020H Power Supply Module can be used in harsher environments and operates in an expanded temperature range of -25°C to +70°C. It is equipped with a 2-pin connection for the alarm relay, a 5-pin connection for the mains, and a protective conductor for the electrical connection. It has an IP20 certification and it is suitable for medium and large process applications.
The power Supply Module is certified according to ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, and UL. Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. Modicon X80 consists of a common platform with compatible modules that reduces maintenance and training costs with the same spare parts in stock, as well as unique training for multiple programmable automation controllers (PACs).
Features
- Robust, high quality, and based on the latest innovative technology
- Equipped with a 2-pin connection for the alarm relay, a 5-pin connection for the mains, and a protective conductor for the electrical connection.
- IP20 certification
| Brand | Schneider Electric |
| Item Name | Power Supply Module |
| Model | BMXCPS3020H |
| Control Type | RESET push-button cold restart |
| Dielectric Strength | 1500 V primary/ground, 1500 V primary/secondary |
| Inrush Current | 30 A 24 V, 60 A 48 V |
| IP Degree Of Protection | IP20 |
| Range Of Product | Modicon X80 |
| Immunity To Microbreaks | 1 ms |
| MTBF Reliability | 4600000 H |
| Maximum Cable Distance Between Devices | 10 m power supply cable copper 1.5 mm², 15 m power supply cable copper 2.5 mm² |
| Maximum Power Dissipation in W | 8.5 W |
| Primary Voltage | 24...48 V |
| Primary Voltage Limit | 18...62.4 V |
| It On Activation | 0.2 A.s 24 V, 0.3 A.s 48 V |
| I²t On Activation | 1 A².s 24 V, 3 A².s 48 V |
| Input Current | 0.83 A 48 V, 1.65 A 24 V |
| Current At Secondary Voltage | 1.3 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply |
| Secondary Power | 15 W 3.3 V DC at 0-60 °C I/O module logic power supply, 31.2 W 24 V DC at 0-60 °C I/O module power supply and processor, 11.3 W 3.3 V DC at -25-70 °C I/O module logic power supply, 23.4 W 24 V DC at -25-70 °C I/O module power supply and processor |
| Vibration Resistance | 3 gn |
| Supply Circuit Type | DC |
| Status LED | 1 LED (green) rack voltage OK |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0 |
| Environmental Characteristic | Gas resistant class Gx conforming to ISA S71.04, gas resistant class 3C4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, sand resistant class 3S4 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, mold growth resistant class 3B2 conforming to IEC 60721-3-3, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, hazardous location class I division 2 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Insulation Resistance | >= 10 MOhm primary/ground, >= 10 MOhm primary/secondary |
| Electrical Connection | 1 connector 2 pin(s)alarm relay, 1 connector 5 pin(s)line supply, protective earth |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Ambient Air Temperature For Storage | -40-85 °C |
| Weight | 0.34 kg |
