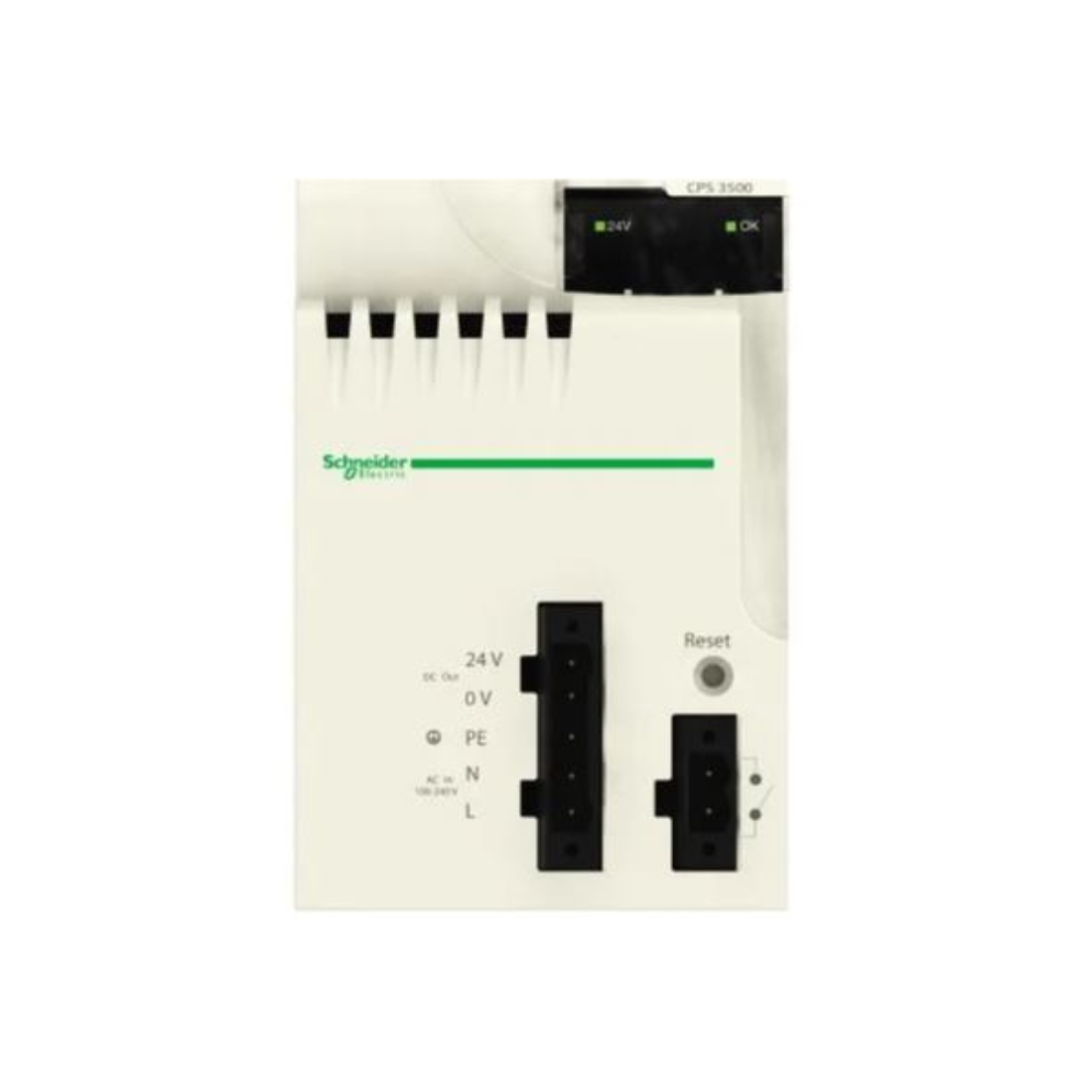

Schneider Electric Modicon X80 Power Supply Module X80 100-240V AC 36W BMXCPS3500

Name: Schneider Electric Modicon X80 Power Supply Module X80 100-240V AC 36W BMXCPS3500
Brand: Schneider Electric
Price: 2755.25 AED
Availability: InStock

AED 2,755.25

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Power Supply Module

Description

Schneider Electric BMXCPS3500 Power Supply Module is part of the Modicon X80 series, a common module platform for the Modicon M580 and M340 programmable automation controllers (PACs). This power supply module has a primary voltage of 100V to 240V AC. This is a power module with a secondary power of 31.2 W at 24 V DC, a secondary voltage current of 4.5 A at 3.3 V DC, and a maximum power dissipation of 8.5 W.

The power Supply Module is robust, high quality, and is based on the latest innovative technology. It is equipped with a 2-pin connection for the alarm relay, a 5-pin connection for the mains, and a protective conductor for the electrical connection. It has an IP20 certification and it is suitable for medium and large process applications.

Schneider Electric BMXCPS3500 Power Supply Module X80 is certified by CE, RCM, Merchant Navy, CSA, EAC, and UL. Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduces maintenance and training costs with the same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Features

Robust, high quality, and based on the latest innovative technology
Equipped with a 2-pin connection for the alarm relay, a 5-pin connection for the mains, and a protective conductor for the electrical connection.
IP20 certification

Specifications

Brand : Schneider Electric

Item Name : Power Supply Module

Model : BMXCPS3500

Control Type : RESET push-button cold restart

Dielectric Strength : 1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor, 2300 V primary/secondary sensor power supply, 1500 V primary/ground, 500 V 24 V sensor output/ground

Inrush Current : 30 A 120 V, 60 A 240 V

IP Degree Of Protection : IP20

Range Of Product : Modicon X80

Network Frequency : 50/60 Hz

Operating Altitude : 0...2000 m, 2000...5000 m with derating factor

Protective Treatment : TC

Relative Humidity : 5-95 % at 55-55 °C without condensation

Shock Resistance : 30 gn

Immunity To Microbreaks : 1 ms

MTBF Reliability : 4300000 H

Network Frequency Limits : 47-63 Hz

Maximum Power Dissipation in W : 8.5 W

Apparent Power : 0.12 kVA

Primary Voltage : 100...240 V

Primary Voltage Limit : 85...264 V

It On Activation : 0.05 A.s 120 V, 0.07 A.s 240 V

I²t On Activation : 1 A².s 120 V, 3 A².s 240 V

Input Current : 0.52 A 240 V, 1.04 A 115 V

Current At Secondary Voltage : 0.9 A 24 V DC sensor power supply, 1.3 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply

Secondary Power : 15 W 3.3 V DC I/O module logic power supply, 31.2 W 24 V DC I/O module power supply and processor, 21.6 W 24 V DC sensor power supply

Vibration Resistance : 3 gn

Supply Circuit Type : AC

Status LED : 1 LED (green) rack voltage OK, 1 LED (green) sensor voltage

Compatibility : Not compatible with BMEXBP..02

Ambient Air Temperature For Operation : 0-60 °C

Insulation Resistance : >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary

Electrical Connection : 1 connector 2 pin(s)alarm relay, 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor

Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility

Weight : 0.36 kg
