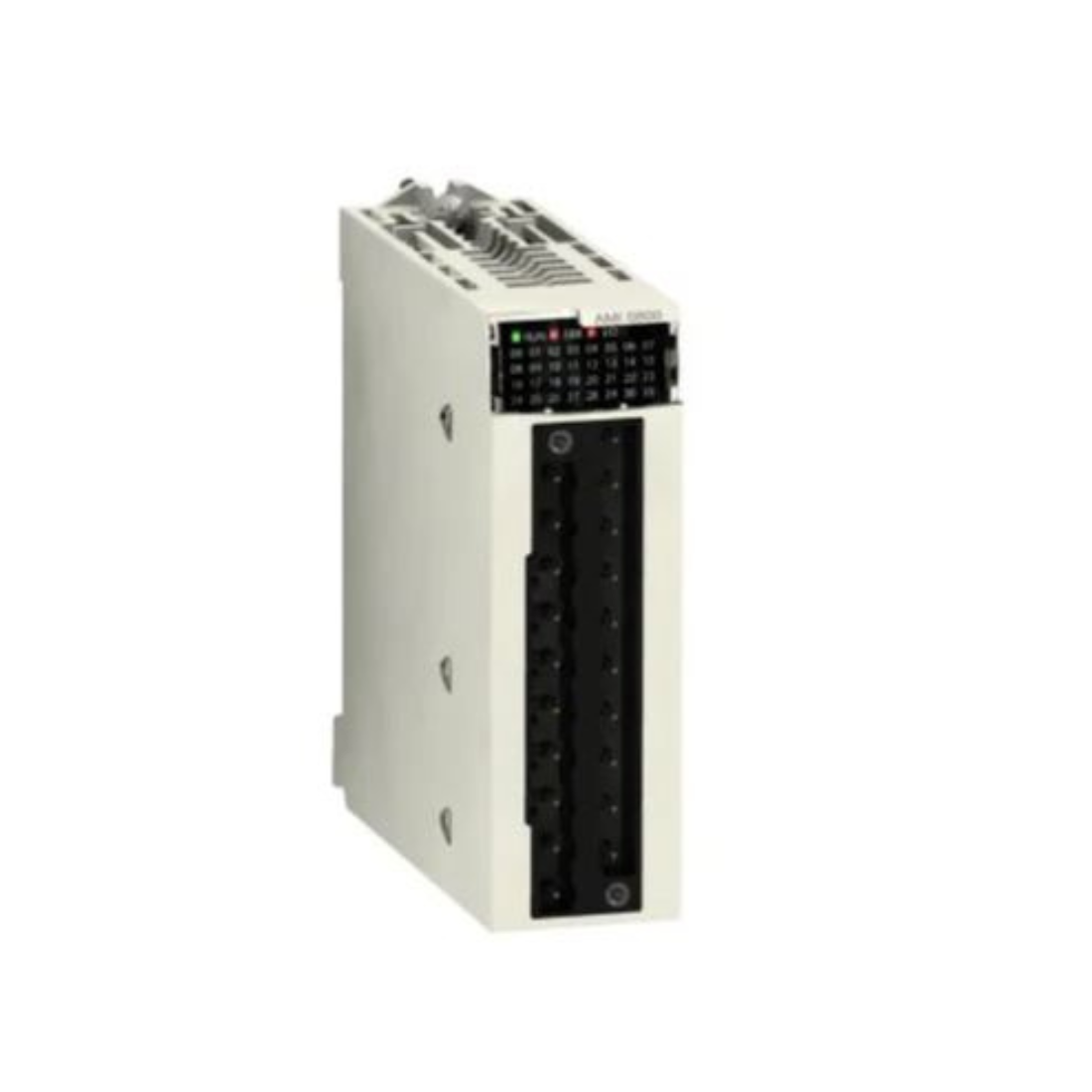

Schneider Electric Modicon X80 Non-Isolated Analog Input Module X80 8 Inputs Fast Speed BMXAMI0800
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Analog Input Module
Description
Schneider Electric BMXAMI0800 Non-isolated Analog Input Module is part of the Modicon X80 series, a common module platform for the Modicon M580 and M340 programmable automation controllers (PACs). This analog input module has 8 inputs with an input resolution of 15 bits + sign. It is an analog input module with a power consumption of 1.04 W at 24 V DC. It is is robust, high quality and based on the latest innovative technology. There is no isolation between channels.
Schneider Electric BMXAMI0800 Non-isolated Analog Input Module is equipped with a 28-pin connector for electrical connection. It has an IP20 certification. It weighs 0.165 kg. It is suitable for medium and large process applications. It is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. Complies with IEC 61131-2, CSA C22.2 No. 142, CSA C22.2 No. 213 and UL 508 standards.
Modicon X80 consists of a common platform with compatible modules that reduces maintenance and training costs with the same spare parts in stock, as well as a unique training course for several programmable automation controllers (PACs).
Features
- Robust, high quality, and based on the latest innovative technology
- Equipped with a 28-pin connector for electrical connection.
- IP20 certification
| Brand | Schneider Electric |
| Item Name | Analog Input Module |
| Model | BMXAMI0800 |
| Measurement Resolution | 0.36 mV +/- 10 V, 0.36 mV 0...10 V, 0.36 mV 0...5 V, 0.36 mV 1...5 V, 0.36 mV +/- 5 V, 1.4 µA +/- 20 mA, 1.4 µA 0...20 mA, 1.4 µA 4...20 mA |
| IP Degree Of Protection | IP20 |
| Operating Altitude | 0...2000 m, 2000...5000 m with derating factor |
| Certifications | CE, RCM, CSA, EAC, Merchant Navy, UL |
| Range Of Product | Modicon X80 |
| Relative Humidity | 5-95 % at 55-55 °C without condensation |
| Shock Resistance | 30 gn |
| Immunity To Microbreaks | 1 ms |
| Isolation Voltage | 1400 V DC between channels and ground, 1400 V DC between channels and bus, 50 V DC between channels |
| MTBF Reliability | 1700000 H |
| Measurement Error | <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, 0.15 % of full scale +/- 20 mA 25 °C, 0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale 4...20 mA 25 °C, 0.075 % of full scale +/- 10 V 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 1...5 V 25 °C, 0.075 % of full scale +/- 5 V 25 °C |
| Maximum Conversion Value | +/- 11.4 V +/- 10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V, 0...30 mA +/- 20 mA, 0...30 mA 0...20 mA, 0...30 mA 4...20 mA, 0...30 mA +/- 5 V |
| Type of filter first order digital filtering | |
| Temperature drift 30 ppm/°C +/- 10 V, 30 ppm/°C +/- 5 V, 30 ppm/°C 0...10 V, 30 ppm/°C 0...5 V, 30 ppm/°C 1...5 V, 50 ppm/°C +/- 20 mA, 50 ppm/°C 0...20 mA, 50 ppm/°C 4...20 mA | |
| Recalibration Factory | Calibrated |
| Analogue Input Resolution | 15 bits + sign |
| Input Level | High Level |
| Input Output Isolation | Non Isolated |
| Analogue Input Number | 8 |
| Nominal Read Cycle Time | 9 ms for 8 channels |
| Analog/digital Conversion | 16 Bits |
| Analogue Input Type | Current +/- 20 mA, current 0...20 mA, current 4...20 mA, voltage +/- 10 V, voltage +/- 5 V, voltage 0...10 V, voltage 0...5 V, voltage 1...5 V |
| Permitted Overload On Inputs | +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 mA +/- 20 mA |
| Precision Of Internal Conversion Resistor | 0.1 % - 15 ppm/°C |
| Minimum Crosstalk Attenuation | 80 dB |
| Fast Read Cycle Time | 1 ms + 1 ms x number of channels used |
| Digital Value Format | - 32768 to + 32767 in maximum user scale, +/- 10000 by default |
| Vibration Rresistance | 3 gn |
| Status LED | 1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O |
| Ambient Air Temperature For Operation | 0-60 °C |
| Standards | EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
| Electrical Connection | 28 ways 1 connector |
| Input Impedance | 10 MOhm in voltage mode, 250 Ohm in current mode |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Common Mode Rejection | 100 dB |
| Weight | 0.165 kg |
