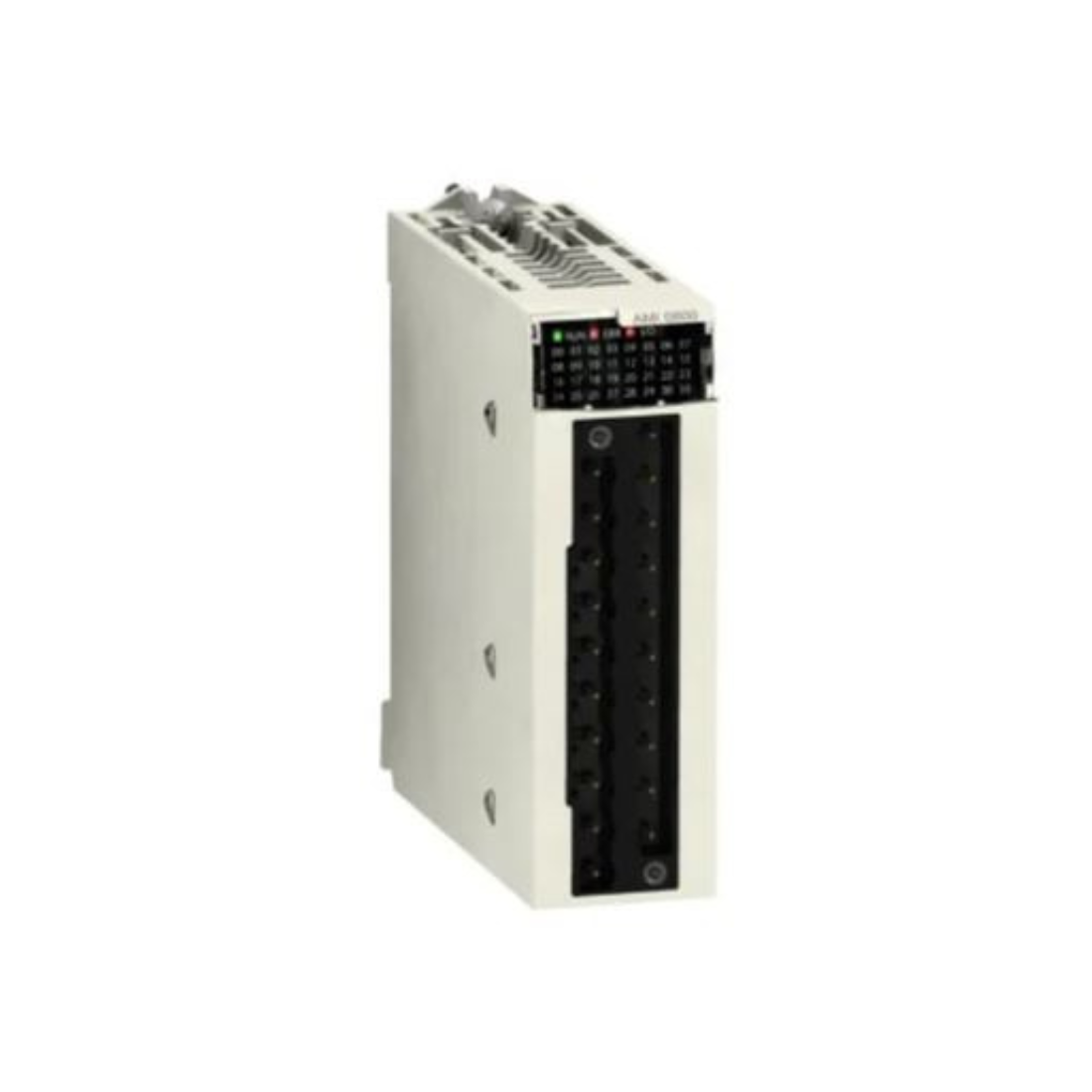

Schneider Electric Modicon X80 Isolated Analog Input Module 8 Inputs High Speed Severe BMXAMI0810H
(Price Includes VAT)
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
During Ramadan, customer care and delivery services are available from 7:30 AM to 3:30 PM. You can place orders on the website anytime — we’ll process them within service hours.
Brand : Schneider Electric
Type : Isolated Analog Input Module
Description
Schneider Electric BMXAMI0810H Isolated Analog Input Module is part of the Modicon X80 series, a common module platform for the Modicon M580 and M340 programmable automation controllers (PACs). This analog input module has 8 inputs with an input resolution of 15 bits + sign. It is an input module with a power consumption of 1.54 W at 24 V DC. This robust can be used in harsher environments and can operate in an extended temperature range of -25°C to +70°C.
Schneider Electric BMXAMI0810H Modicon X80 Isolated Analog Input Module is equipped with a 28-pin connector for electrical connection. It has an IP20 certification. It is suitable for medium to large-sized processes and applications in demanding environments. It is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, and CE. Complies with IEC 61131-2, CSA C22.2 No. 142, CSA C22.2 No. 213, and UL 508 standards.
Modicon X80 consists of a common platform with compatible modules that reduce maintenance and training costs with the same spare parts in stock. , as well as a unique training course for several programmable automation controllers (PACs).
Features
- It has 8 inputs with an input resolution of 15 bits + sign
- IP20 certification
- It is an input module with a power consumption of 1.54 W at 24 V DC.
| Brand | Schneider Electric |
| Item Name | Analog Input Module |
| Model | BMXAMI0810H |
| Measurement Resolution | 0.36 mV +/- 10 V, 0.36 mV 0...10 V, 0.36 mV 0...5 V, 0.36 mV 1...5 V, 0.36 mV +/- 5 V, 1.4 µA +/- 20 mA, 1.4 µA 0...20 mA, 1.4 µA 4...20 mA |
| IP Degree Of Protection | IP20 |
| Operating Altitude | 0...2000 m, 2000...5000 m with derating factor |
| Certifications | CE, RCM, CSA, EAC, Merchant Navy, UL |
| Range Of Product | Modicon X80 |
| Protective Treatment | Conformal coating |
| Relative Humidity | 5-95 % at 55-55 °C without condensation |
| Shock Resistance | 30 gn |
| Isolation Voltage | 300 V DC between channels, 1400 V DC between channels and ground, 1400 V DC between channels and bus |
| MTBF Reliability | 900000 H |
| Measurement Error | 0.15 % of full scale +/- 20 mA 25 °C, 0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale 4...20 mA 25 °C, 0.075 % of full scale +/- 10 V 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 1...5 V 25 °C, 0.075 % of full scale +/- 5 V 25 °C, <= 0.2 % of full scale +/- 10 V - 25...70 °C, <= 0.2 % of full scale +/- 5 V - 25...70 °C, <= 0.2 % of full scale 0...10 V - 25...70 °C, <= 0.2 % of full scale 0...5 V - 25...70 °C, <= 0.2 % of full scale 1...5 V - 25...70 °C, <= 0.55 % of full scale +/- 20 mA - 25...70 °C, <= 0.55 % of full scale 0...20 mA - 25...70 °C, <= 0.55 % of full scale 4...20 mA - 25...70 °C |
| Maximum Conversion Value | +/- 11.4 V +/- 10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V, 0...30 mA +/- 20 mA, 0...30 mA 0...20 mA, 0...30 mA 4...20 mA, 0...30 mA +/- 5 V |
| Type Of Filter | First order digital filtering |
| Temperature Drift | 30 ppm/°C +/- 10 V, 30 ppm/°C +/- 5 V, 30 ppm/°C 0...10 V, 30 ppm/°C 0...5 V, 30 ppm/°C 1...5 V, 50 ppm/°C +/- 20 mA, 50 ppm/°C 0...20 mA, 50 ppm/°C 4...20 mA |
| Analogue Input Resolution | 15 bits + sign |
| Input Level | High Level |
| Input Output Isolation | Isolated |
| Analogue Input Number | 8 |
| Nominal Read Cycle Time | 9 ms for 8 channels |
| Analog/digital Conversion | 16 Bits |
| Analogue Input Type | Current +/- 20 mA, current 0...20 mA, current 4...20 mA, voltage +/- 10 V, voltage +/- 5 V, voltage 0...10 V, voltage 0...5 V, voltage 1...5 V |
| Permitted Overload On Inputs | +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 mA +/- 20 mA |
| Precision Of Internal Conversion Resistor | 0.1 % - 15 ppm/°C |
| Minimum Crosstalk Attenuation | 80 dB |
| Fast Read Cycle Time | 1 ms + 1 ms x number of channels used |
| Digital Value Format | - 32768 to + 32767 in maximum user scale, +/- 10000 by default |
| Vibration Rresistance | 3 gn |
| Status LED | 1 LED (green) RUN, 1 LED per channel (green) channel diagnostic, 1 LED (red) ERR, 1 LED (red) I/O |
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-85 °C |
| Standards | EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
| Electrical Connection | 28 ways 1 connector |
| Input Impedance | 10 MOhm in voltage mode, 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Common Mode Rejection | 80 dB |
| Weight | 0.175 kg |
