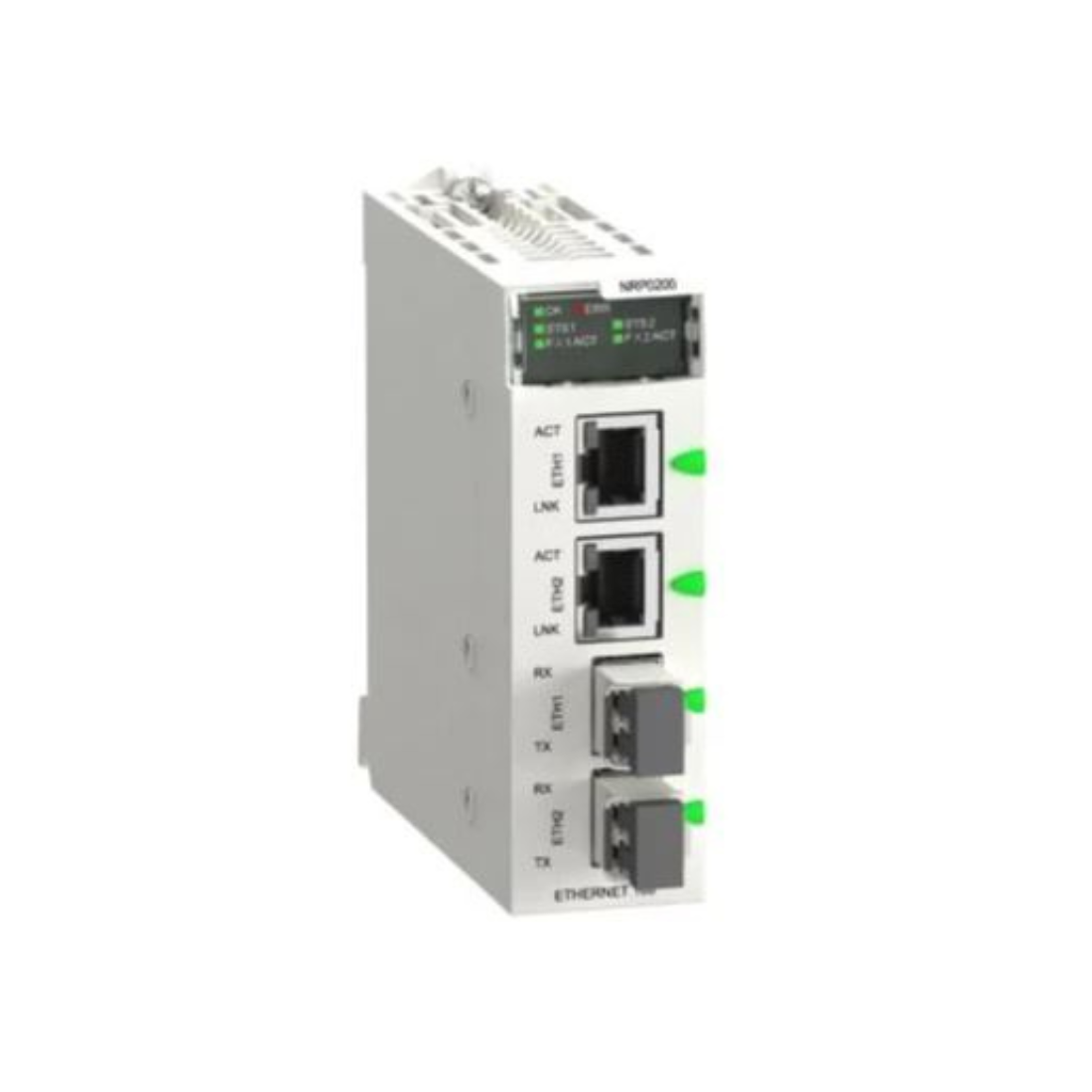

Schneider Electric Modicon X80 Fiber Converter MM/LC 2CH 100Mb BMXNRP0200

Name: Schneider Electric Modicon X80 Fiber Converter MM/LC 2CH 100Mb BMXNRP0200
Brand: Schneider Electric
Price: 4435.38 AED
Availability: InStock

AED 4,435.38

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Fiber Optic Repeater

Description

Schneider Electric BMXNRP0200 Modicon X80 Fiber Converter is part of the Modicon X80 series, a common module platform for the Modicon M580 and M340 programmable automation controllers (PACs). Supports multi-mode and hot-swap functions. It is a fiber optic repeater with a current of 200 mA and a nominal voltage of 24 V. It offers a wavelength of 1310 nm. It is robust, high quality, and based on the latest innovative technology.

Schneider Electric BMXNRP0200 Modicon X80 Fiber Converter has 2 RJ45 with 100BASE-TX ports, 2 fiber optic with 100BASE-FX port, and Ethernet ports with an operating distance of 0m to 2000m, it is IP20 certified. It is suitable for medium and large process applications. This product is CE, Merchant Marine, GOST, and C-Tick certified. Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. It is compatible with the entire range of Modicon controllers. The repeater is connected to CRA drop adapters using Ethernet patch cables.

Features

Robust, high quality, and based on the latest innovative technology.
IP20 certification
Supports multi-mode and hot-swap functions.
Suitable for medium and large process applications.

Specifications

Brand : Schneider Electric

Item Name : Fiber Optic Repeater

Model : BMXNRP0200

Current Consumption : 140 mA typical, 200 mA maximum

Ambient Air Temperature For Storage : -40-70 °C

Depth : 86 mm

Dielectric Strength : 1400 V DC between field and bus, 500 V DC between channels

Height : 100 mm

IP Degree Of Protection : IP20

Marking : CE

Operating Altitude : 0...4000 m

Certifications : CE, RCM, CSA, EAC, Merchant Navy, UL

Range Of Product : Modicon X80

Relative Humidity : 0-95 %

Width : 32 mm

Operating Distance : 0...2000 m

Number Of Port : 2 RJ45 with 100BASE-TX port Ethernet conforming to IEEE 802.3u, 2 fiber optic with 100BASE-FX port Ethernet conforming to IEEE 802.3u

Rise/fall Time : 3 ns

Optic Fiber Type : Multi mode

Receiver Sensitivity : - 31...- 14 dBm

Wavelength : 1310 nm

Ambient Air Temperature For Operation : -0-60 °C

Standards : EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201

Local Signalling : 1 LED (green) for power supply status, 1 LED (red) for error condition (ERR), 2 LEDs (green) for link status, 2 LEDs (green) for fiber port state and activity

Function Available : Hot swap

Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility

Weight : 203 g
