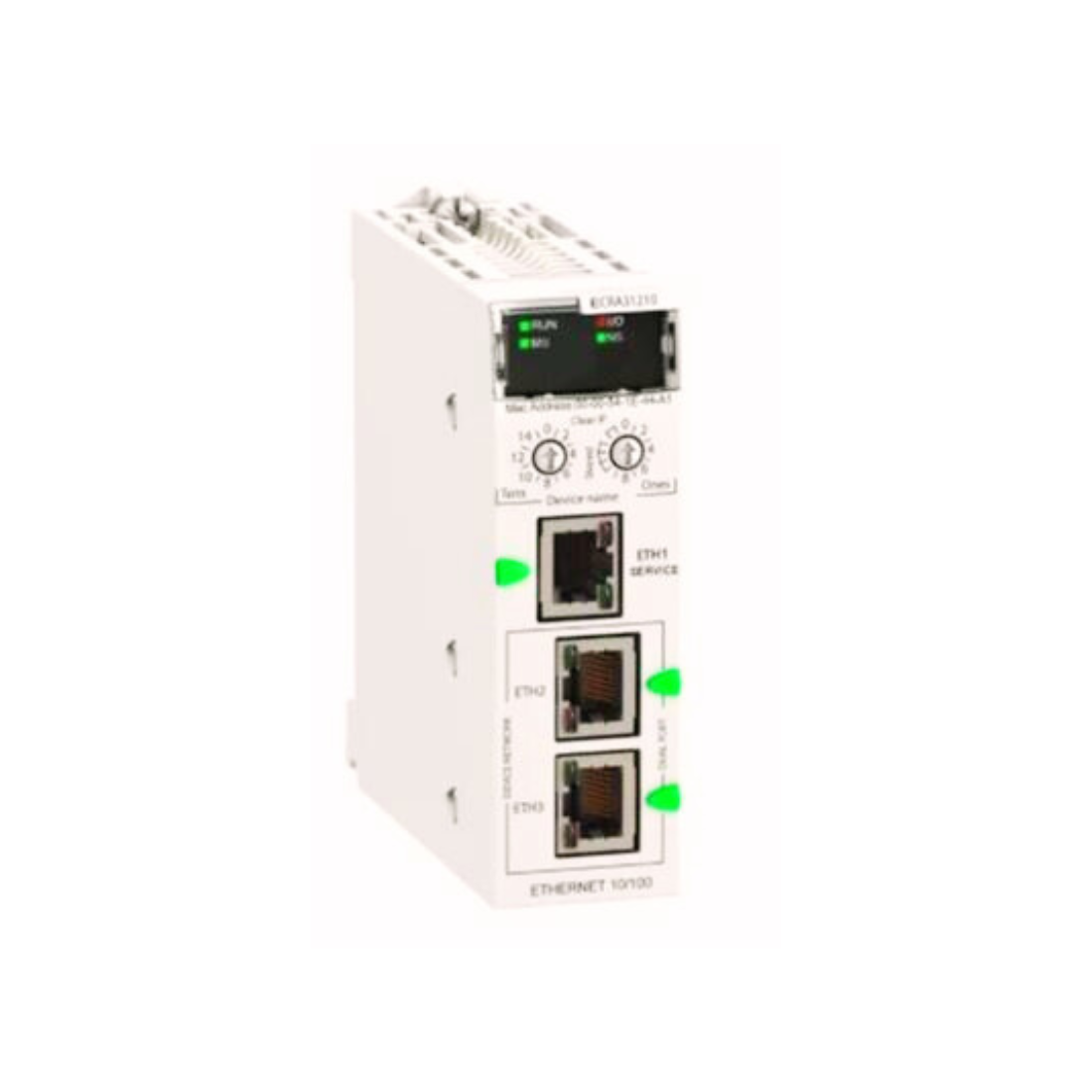

Schneider Electric Modicon X80 EIO Drop Adapter with Ethernet Backplane BMECRA31210
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Backplane Expander
Description
Schneider Electric BMECRA31210 EIO Drop Adapter With Ethernet Backplane is part of the Modicon X80 series, a common module platform for the Modicon M580 and M340 programmable automation controllers (PACs). This Ethernet Remote Input Output (RIO) drop adapter has 3 ports with an Ethernet backplane. The built-in ports are EtherNet/IP for the device network and EtherNet/IP for the service port. It is robust, high quality, and based on the latest innovative technology.
Input data is collected and published to the remote I/O head adapter and the output modules are updated with the data received from the remote I/O head adapter. It has an IP20 certification. It is suitable for medium and large process applications. Schneider Electric BMECRA31210 Modicon X80 EIO Drop Adapter With Ethernet Backplane is CE, Merchant Marine, GOST, and C-Tick certified. Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards.
This adapter supports the BMXERT multifunction input module, BMXNOM Ethernet module, BMXEHC counter module, 0 to 1024 discrete channels, 0 to 256 analog channels, BMEAH HART module, and PMESWT weighing module. Modicon X80 consists of a compatible modules common platform that reduces maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Features
- Robust, high quality, and based on the latest innovative technology.
- IP20 certification
- It has 3 ports with an Ethernet backplane
- Suitable for medium and large process applications.
| Brand | Schneider Electric |
| Item Name | Backplane Expander |
| Model | BMECRA31210 |
| Current Consumption | 1800 mA |
| Ambient Air Temperature For Storage | -40-85 °C |
| Depth | 87.5 mm |
| Device Application | X80 Ethernet RIO drop adaptor |
| Operating Altitude | <= 2000 m |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Range Of Product | Modicon X80 |
| Relative Humidity | 95-95 % without condensation |
| Width | 32 mm |
| Maximum Altitude Transport | 3000 m |
| Number Of Port | 3 |
| Transmission Rate | 10/100 Mbit/s |
| Port Ethernet | 10/100BASE-TX |
| Module Format | Standard |
| Communication Service | Ethernet/IP adapter, RSTP (Ring topology support), Ethernet RIO network, Quality of Service (QoS), CIP Explicit messaging (server), Modbus TCP server for module diagnostics, DHCP client, TFTP client, FTP client, FDR client, SNTP client, SNMP agent |
| Bus Type | Bus X across the remote backplane, Ethernet across the remote backplane |
| Data Recording | 10 ms time stamps |
| Cybersecurity | Enable/disable communication ports, Syslog protocol support |
| Exchange Mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Ambient Air Temperature For Operation | -0-60 °C |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G |
| Compatibility | 0-1024 discrete channel, 0-256 analog channel, counter module, time-stamping module, SSI encoder interface module, motion control module, frequency input module, AS-Interface module, serial link module, fiber converter modules, HART module, weighing module, CANopen master module (standalone CPU only), PROFIBUS module (standalone CPU only), Ethernet switch module |
| Communication Port Protocol | EtherNet/IP |
| Connector Type | 3 RJ45 |
| Communication Network Type | IPv4 (internet protocol) |
| Topology | Ring |
| Range Compatibility | Modicon M580 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
