Schneider Electric Modicon X80 Discrete Output Module X80 16 Outputs Solid State 24V DC Positive BMXDDO1602
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Discrete Output Module
Description

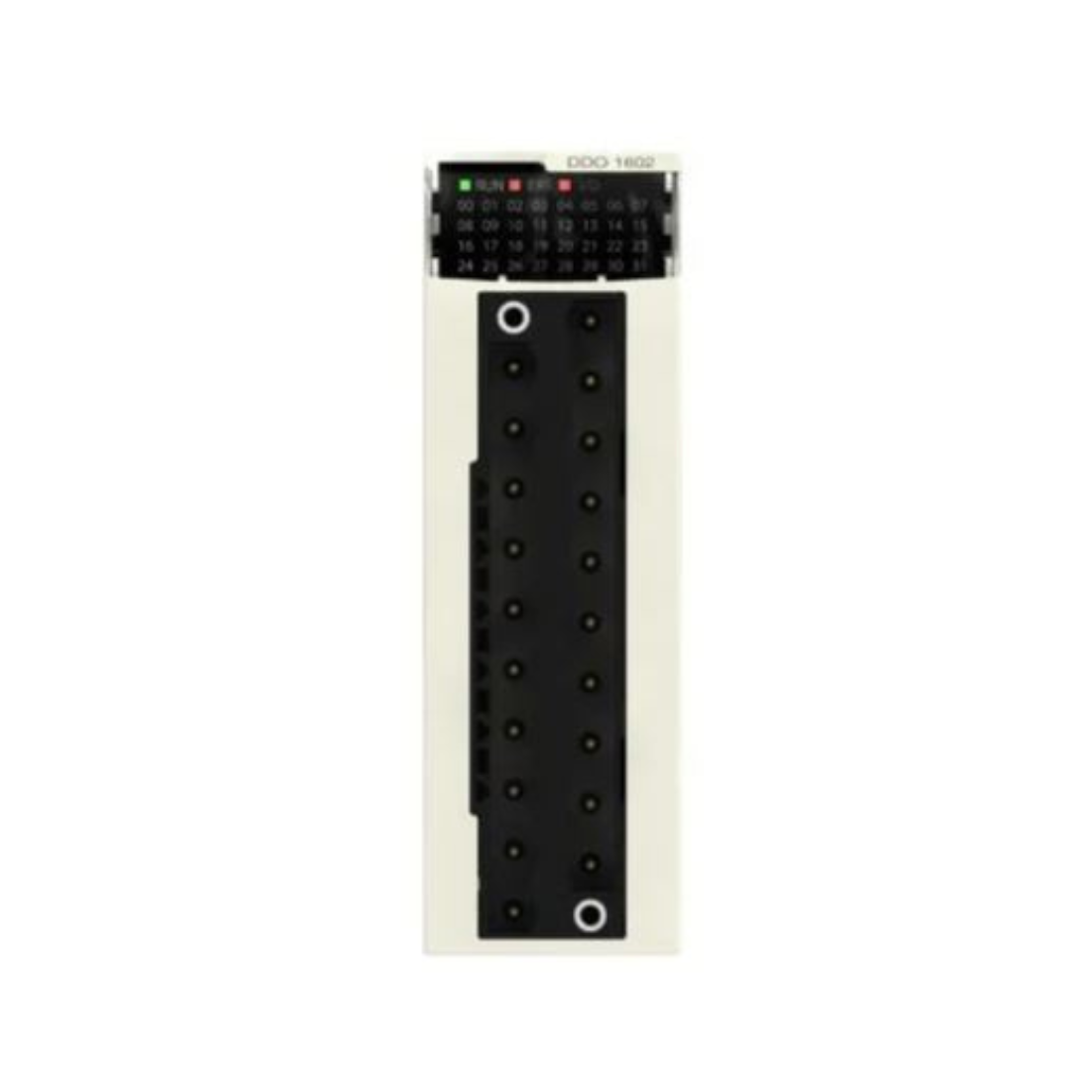

Schneider Electric BMXDDO1602 Discrete Output Module is part of the Modicon X80 modules. It has 16 outputs protected by transistors, 24V DC. This module connects via a removable 20-pin terminal block. It occupies a single slot in the rack and has a casing that guarantees IP20 protection for the electronics.
Features
- It has 16 outputs protected by transistors, 24V DC.
- IP20 protection
| Brand | Schneider Electric |
| Item Name | Discrete Output Module |
| Model | BMXDDO1602 |
| Dielectric Strength | 1500 V AC at 50/60 Hz 1 minute, output/ground, 1500 V AC at 50/60 Hz 1 minute, output/internal logic |
| IP Degree Of Protection | IP20 |
| Operating Altitude | 0...2000 m, 2000...5000 m with derating factor |
| Power Dissipation in W | 4 W |
| Protective Treatment | Conformal Coating |
| Range Of Product | Modicon X80 |
| Relative Humidity | 5-95 % at 55-55 °C without condensation |
| Shock Resistance | 30 gn |
| Discrete Output Current | 0.5 A |
| MTBF Reliability | 410000 H |
| Voltage Detection Threshold | < 14 V DC preactuator fault, > 18 V DC preactuator at state 0 |
| Typical Current Consumption | 79 mA at 3.3 V DC |
| Discrete Output Type | Solid State |
| Reverse Polarity Protection | Reverse mounted diode |
| Discrete Output Number | 16 conforming to EN/IEC 61131-2 |
| Maximum Voltage Drop | <1.2 V at state 1 |
| Maximum Tungsten Load | 6 W |
| Maximum Leakage Current | 0.5 mA at state 0 |
| Discrete Output Logic | Positive |
| Discrete Output Voltage | 24 V 19...30 V DC |
| Load Impedance | > 48 Ohm |
| Paralleling of Outputs | Yes : 2 maximum |
| Maximum Current Per Module | 10:00 AM |
| Current Per Channel | 0.625 A |
| Output Overvoltage Protection | With transil diode |
| Output Short-circuit Protection | With 2 A external fuse |
| Output Overload Protection | With electronic circuit breaker 1.5 In < Id < 2 In, with current limite |
| Response Time On Output | 1.2 ms |
| Vibration Resistance | 3 gn |
| Status LED | 1 LED (green) module operating (RUN), 1 LED per channel (green) channel diagnostic, 1 LED (red) module error (ERR), 1 LED (red) module I/O |
| Ambient Air Temperature For Operation | 0-60 °C |
| Insulation Resistance | > 10 MOhm 500 V DC |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Ambient Air Temperature For Storage | -40-85 °C |
| Switching Frequency | 0.5/LI² Hz |
| Weight | 0.12 kg |
