Schneider Electric Modicon X80 Discrete Input Module X80 32 Inputs 24V DC Positive BMXDDI3202K in Dubai, UAE
Schneider Electric Modicon X80 Discrete Input Module X80 32 Inputs 24V DC Positive BMXDDI3202K in Dubai, UAE

Schneider Electric Modicon X80 Discrete Input Module X80 32 Inputs 24V DC Positive BMXDDI3202K

Regular price AED 1,714.81
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Discrete Input Module
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

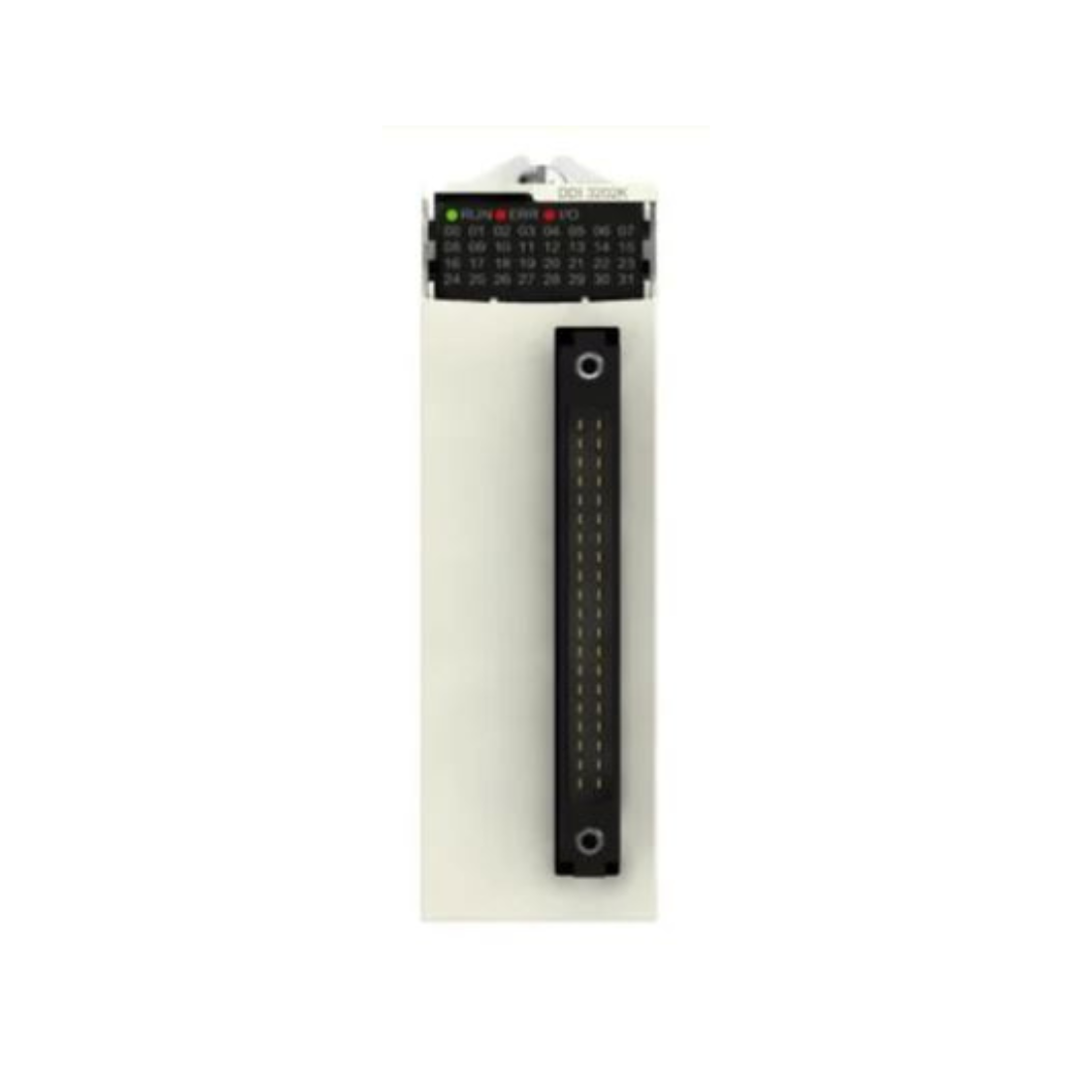

    Schneider Electric BMXDDI3202K Discrete Input Module is part of the Modicon X80 modules. It has 32 isolated inputs and is powered at 24V DC. This input module with 40-pin connectors is designed to be used in conjunction with the TeSys Quickfit mounting system. It occupies a single slot in the rack and has a casing that guarantees IP20 protection for the electronics.

    Features
    • It has 32 isolated inputs and is powered at 24V DC
    • IP20 protection
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Discrete Input Module

    Model : BMXDDI3202K

    Dielectric Strength : 1500 V AC at 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of channels

    IP Degree Of Protection : IP20

    Operating Altitude : 0...2000 m, 2000...5000 m with derating factor

    Power Dissipation in W : 3.9 W

    Range Of Product : Modicon X80

    Relative Humidity : 5-95 % at 55-55 °C without condensation

    Shock Resistance : 30 gn

    Discrete Input Current : 2.5 mA

    Current State 1 Guaranteed : >= 2 mA

    Discrete Input Voltage : 24 V DC, discrete input logic: positive

    Current State 0 Guaranteed : <= 0.5 mA

    Discrete Input Number : 32

    Voltage Range : 19...30 V

    Input Type : Current Sink (logic positive)

    Paralleling Of Inputs : No

    DC Typical Filtering Time : 4 ms

    MTBF Reliability : 905000 H

    Voltage Detection Threshold : < 14 V DC sensor fault, > 18 V DC sensor OK

    Input Compatibility : With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2, with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 1

    Typical Current Consumption : 121 mA at 3.3 V DC

    Discrete Input Type : Isolated

    DC Maximum Filtering Time : 7 ms

    Vibration Resistance : 3 gn

    Status LED : 1 LED (green) module operating (RUN), 1 LED per channel (green) channel diagnostic, 1 LED (red) module error (ERR), 1 LED (red) module I/O

    Ambient Air Temperature For Operation : 0-60 °C

    Insulation Resistance : > 10 MOhm 500 V DC

    Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility

    Ambient Air Temperature For Storage : -40-85 °C

    Input Impedance : 9600 Ohm

    Weight : 0.112 kg
