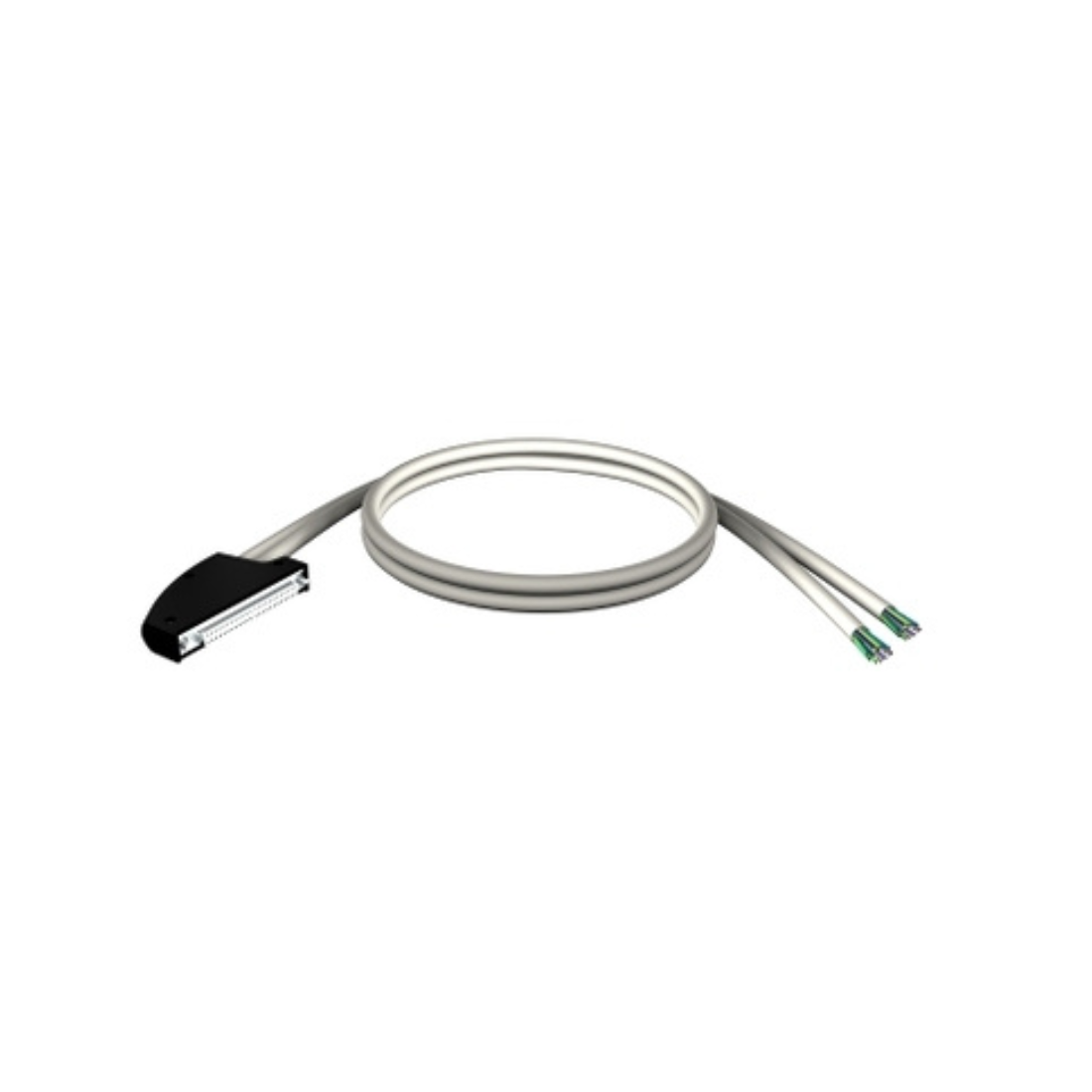

Schneider Electric Modicon X80 Cord Set 40-Way Terminal Two Ends Flying Leads M340 for I/O 3m BMXFCW303
AED 705.19
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Schneider Electric
Type : Cord Set
Collections
Description
Schneider Electric BMXFCW303 Cord Set is part of the Modicon X80 modules. It is compatible with 32-channel modules. Allows the connection between the I/O of modules with 40-pin connectors and the sensors and preactuators.
Features
- Reliability and robustness
- 3 meters
- Equipped with a 40-pin connector and two color-coded connection cables
Brand | Schneider Electric |
Item Name | Cord Set |
Model | BMXFCW303 |
Accessory / Separate Part Type | Preformed cordset |
Range Of Product | Modicon X80 |
Accessory / Separate Part Destination | For I/O module with 40-way connectors |
Accessory / Separate Part Designation | Preformed cordset with one end with flying leads |
Wire Section | 0.324 mm² |
Total Number Of Wires | 40 |
Relative Impedance | 10 MOhm for <= 50 V, 100 MOhm for 50...250 V |
Standards | CSA C22.2 No 142, EN/IEC 61131-2, UL 508 |
Electrical Connection | 1 connector 40 ways, 2 ends with color-coded flying leads conforming to DIN 47100 |
Cable Length | 3m |
Awg Gauge | AWG 22 |
Weight | 0.9 kg |
