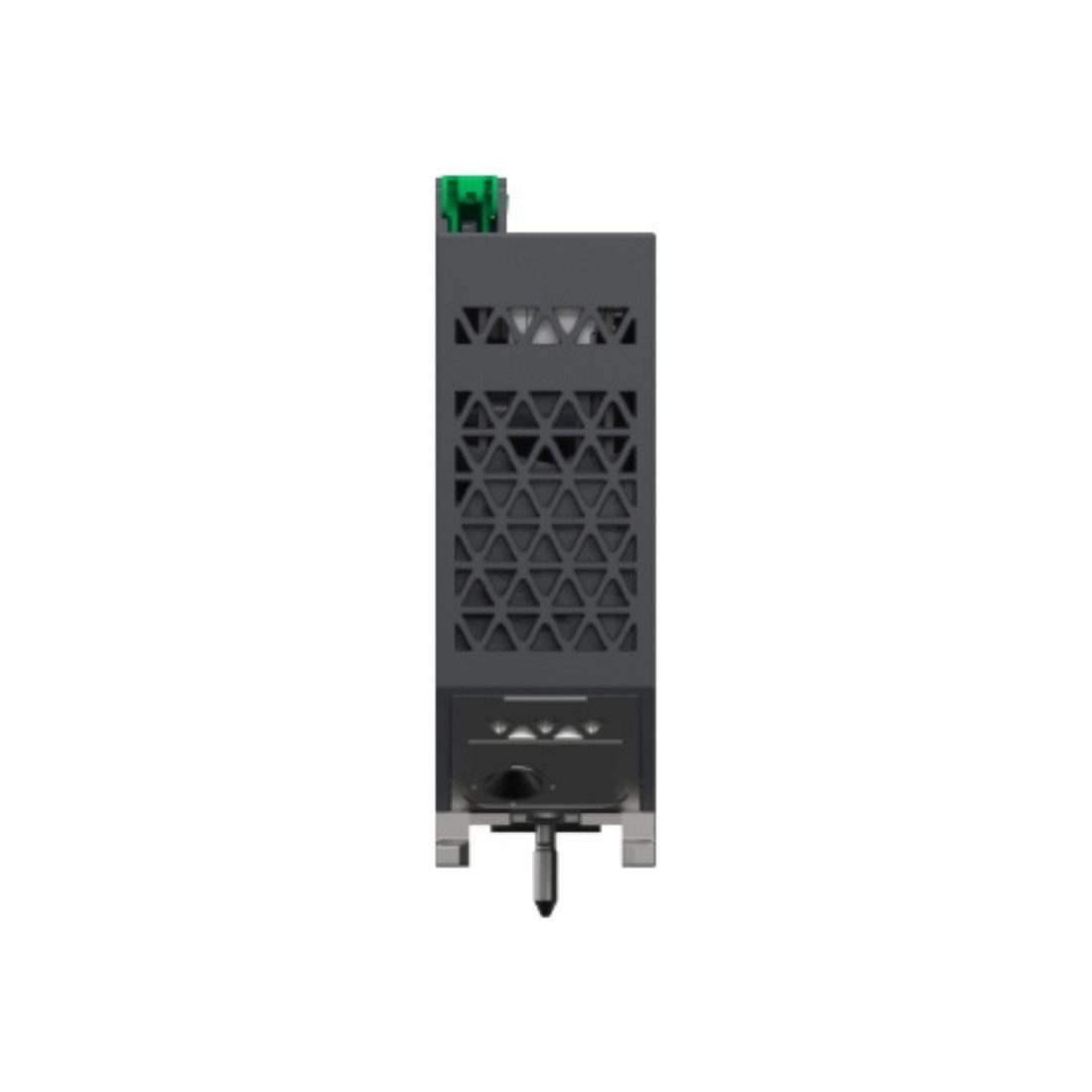

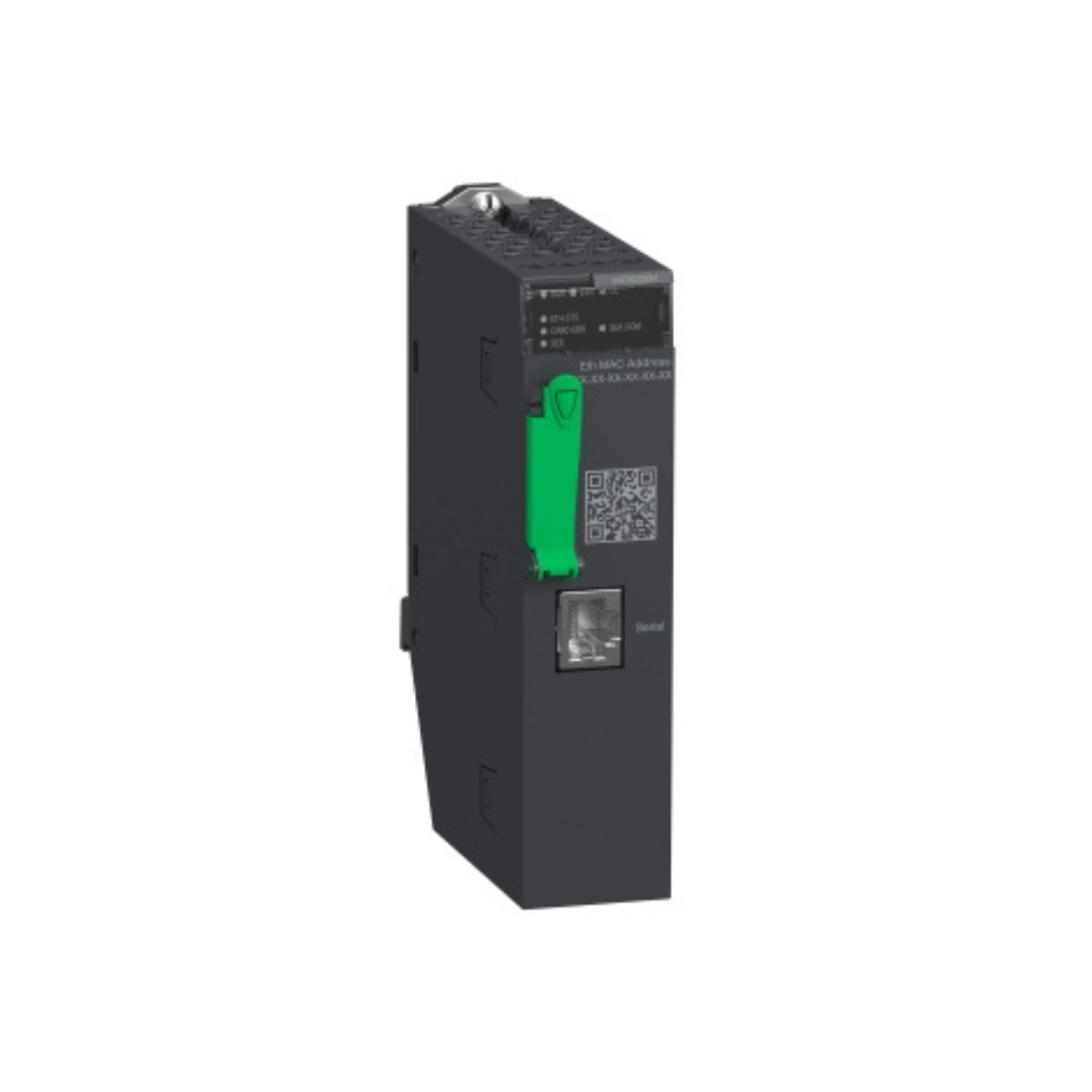

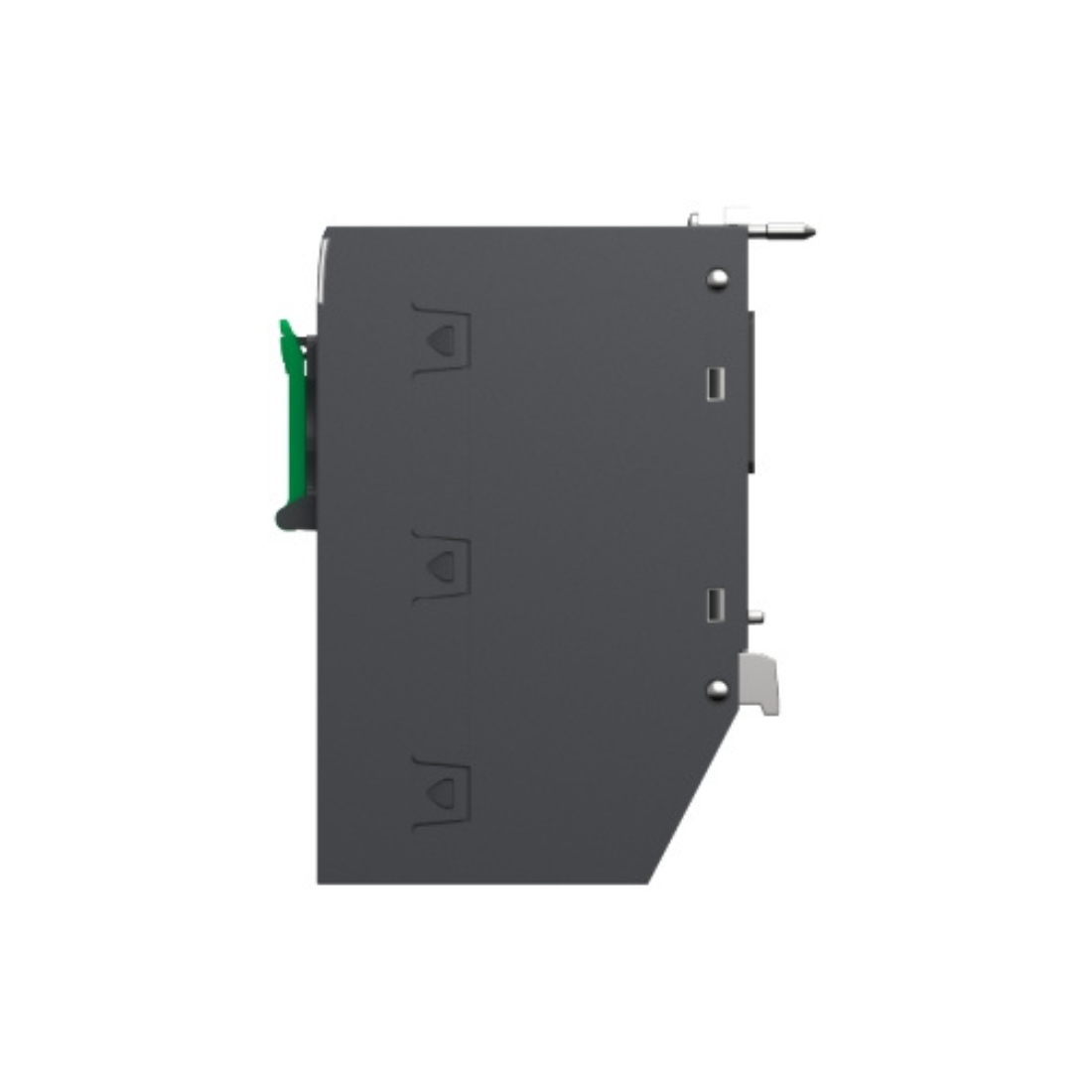

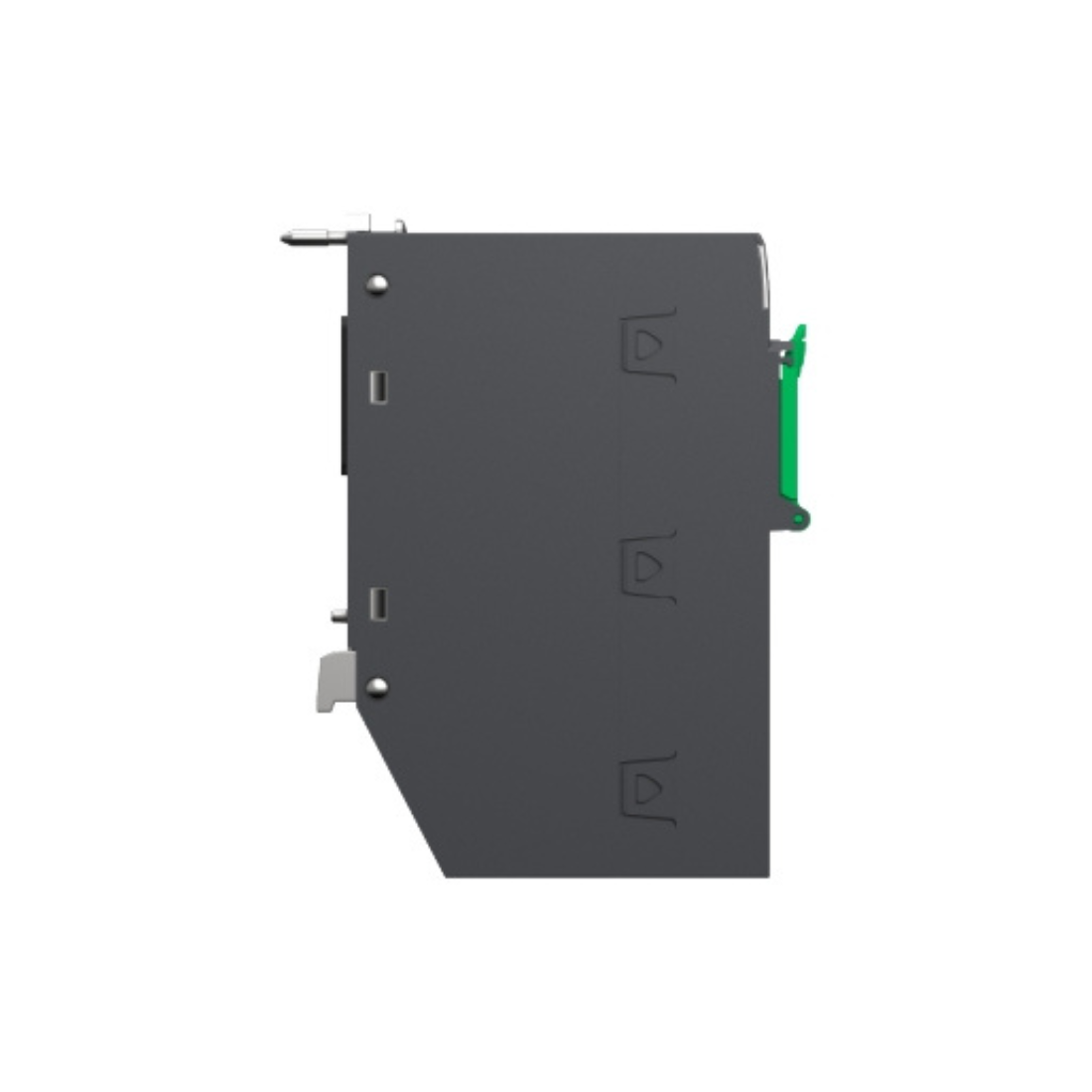

Schneider Electric Modicon X80 Advanced RTU Module Ethernet Based 1 Serial Port Hardened BMENOR2200H
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Communication Module
Description
Schneider Electric BMENOR2200H Advanced RTU Module is part of the Modicon M580 series, a range of programmable automation controllers (PAC) and programmable logic controllers (PLC) with integrated Ethernet. This communication module allows the M580 platform to exchange RTU protocols with RTU stations. Cybersecurity has improved. Corresponds to the M580 Hot Standby system. Supports up to 64 devices when the module acts as a client/master.
Schneider Electric BMENOR2200H Modicon X80 Advanced RTU Module offers enhanced cybersecurity. It complies with DNP3 NET IEC60870-5-104 RTU protocol. The module is delivered in 1 packaging unit. It occupies a slot in the frame. Modicon X80 consists of a common platform with compatible modules that reduces maintenance and training costs by stocking the same spare parts and unique training for multiple programmable automation controllers (PACs).
Features
- Cybersecurity has improved.
- It occupies a slot in the frame.
- Supports up to 64 devices when the module is a client/master.
| Brand | Schneider Electric |
| Item Name | Communication Module |
| Model | BMENOR2200H |
| Current Consumption | 110 mA at 24 V DC |
| Dielectric Strength | 1500 V DC for 1 min, between Serial port and bus/earth |
| Operating Altitude | 0...2000 m, 2000 m...5000 m with derating factor |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22, safety certification non interfering type 1, UKCA |
| Protective Treatment | Conformal coating |
| Relative Humidity | 5-95 % at 55 °C |
| Shock Resistance | 30 gn |
| Width | 32 mm |
| Memory Description | Support flash SD memory card (BMXRMS004GPF) 4 GB |
| Range Of Product | Modicon X80 |
| Supply | Internal power supply via rack |
| Communication Service | DNP3 NET server SAv2/SAv5 with pre-shared key, DNP3 NET client SAv2/SAv5 with pre-shared key, IEC 60870-5-101 server/client, IEC 60870-5-104 server/client, Modbus TCP messaging, web server (HTTPS), HTML5, FDR client, SNTP client, SNMP agent, time stamped events management, automatic events backup on power loss, transparent events routing from remote servers to SCADA, data logging service |
| Cybersecurity | Role-based access control, system hardening, secure communiction (HTTPS), Achilles certified, Syslog protocol support, Transport Layer Security for RTU protocols, SNMP logging, certificate based authentication |
| Vibration Resistance | 3 gn |
| Ambient Air Temperature For Storage | -40-85 °C |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0 |
| Compatibility | BMEXBP... - Ethernet + X-bus rack |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Length | 86mm |
