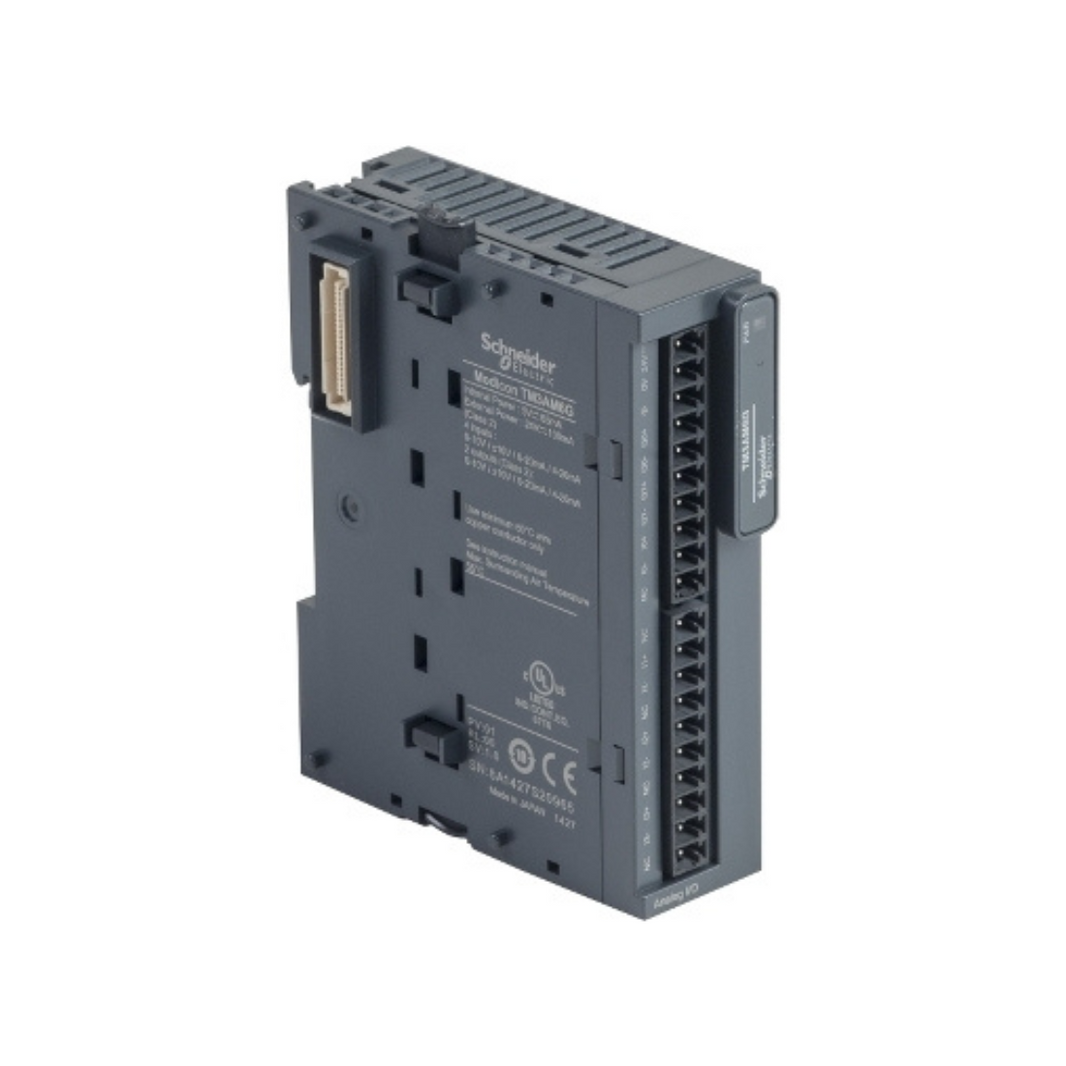

Schneider Electric Modicon TM3IO Analog Module 4 Inputs 2 Output Spring 24V DC TM3AM6G

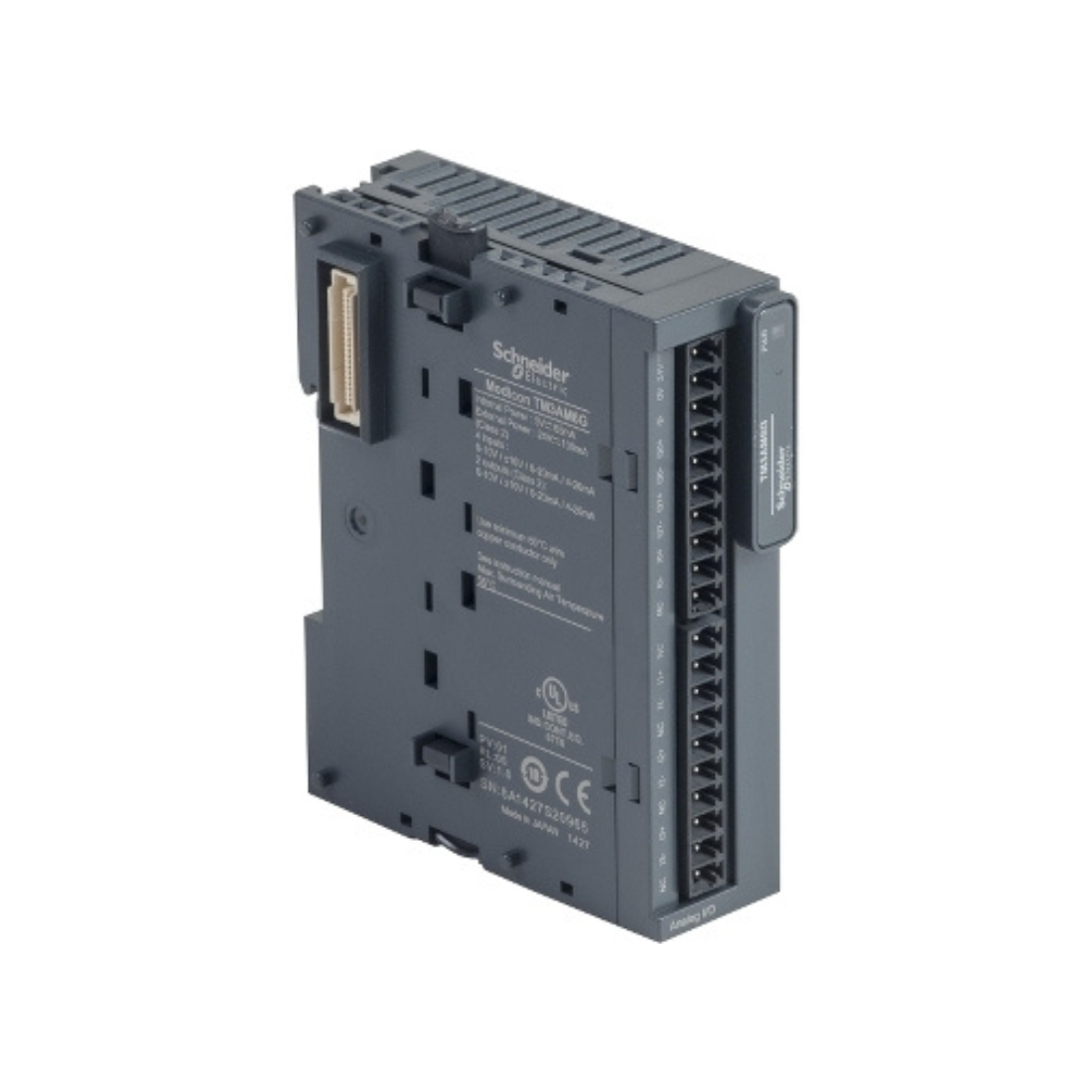

Schneider Electric Modicon TM3IO Analog Module 4 Inputs 2 Output Spring 24V DC TM3AM6G

Schneider Electric Modicon TM3IO Analog Module 4 Inputs 2 Output Spring 24V DC TM3AM6G

Regular price AED 990.15
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Analog Input/Output Module
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric TM3AM6G 4 Analog Inputs And 2 Analog Outputs Spring Module is part of the Modicon TM3 range, a range of I/O expansion modules for the Modicon M221, M241, M251 and M262. The analog I/O module offers 4 inputs and 2 outputs with 11 bits + sign and 12-bit input resolution. It is an I/O module with a nominal supply voltage of 24 VDC, current consumption of 45 mA, 55 mA at 5 VDC via bus connector, and 55 mA, and 100 mA at 24 VDC via external power. It can control variable speed drives or any device equipped with a current or voltage input.

    There is isolation between input and power at 1500 V AC, input and internal logic at 500 V AC, output and power at 1500 V AC, and output and internal logic at 500 V AC. Features a removable spring terminal for electrical connection with 3.18mm pitch adjustment for inputs and supplies. It has an IP20 certification. It has CE certification. Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. Schneider Electric TM3AM6G Modicon TM3 4 Analog Inputs And 2 Analog Outputs Spring Module is compatible with Modicon M241, Modicon M251, and Modicon M221 logic controllers.

    Supports DIN rail type TH35-15, DIN rail type TH35-7.5 according to IEC 60715, and plate or panel mounting with mounting kit. Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase the controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, and M251 logic controllers.

    Features
    • The analog I/O module offers 4 inputs and 2 outputs with 11 bits + sign and 12-bit input resolution.
    • Features a removable spring terminal for electrical connection with 3.18mm pitch adjustment for inputs and supplies.
    • IP20 protection
    • It has a simple interlocking mounting mechanism.
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Input/Output Analog Module

    Model : TM3AM6G

    Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

    Rated Supply Voltage : 24 V DC

    Current Consumption : 45 mA at 5 V DC via bus connector no load, 55 mA at 5 V DC via bus connector full load, 55 mA at 24 V DC via external supply no load, 100 mA at 24 V DC via external supply full load

    Depth : 70 mm

    Height : 90 mm

    IP Degree Of Protection : IP20

    Marking : CE

    Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit

    Operating Altitude : 0...2000 m

    Pollution Degree : 2

    Range Of Product : Modicon TM3

    Relative Humidity : 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage)

    Shock Resistance : 15 gn for 11 ms

    Supply Voltage Limits : 20.4-28.8 V

    Width : 23.6 mm

    Immunity To Microbreaks : 10 ms

    Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

    Surge Withstand : 1 kV power supply common mode conforming to EN/IEC 61000-4-5, 0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5, 1 kV I/O common mode conforming to EN/IEC 61000-4-5, 0.5 kV I/O differential mode conforming to EN/IEC 61000-4-5

    Resistance To Fast Transients : 1 kV (I/O) conforming to EN/IEC 61000-4-4

    Electromagnetic Emission : Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

    Temperature Drift : +/- 0.01 %FS/°C

    Analogue Input Resolution : 12 bits, 11 bits + sign

    Analogue Input Number : 4

    Analogue Input Type : Current 4...20 mA, current 0...20 mA, voltage 0...10 V, voltage - 10...10 V

    Repeat Accuracy : +/-0.5 %FS for input, +/-0.5 %FS for output

    LSB Value : 2.44 mV 0...10 Vvoltage, 4.88 mV - 10...10 Vvoltage, 4.88 µA 0...20 mAcurrent, 3.91 µA 4...20 mAcurrent

    Conversion Time : 1 ms + 1 ms per channel + 1 controller cycle time

    Analogue Output Number : 2

    Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

    Analogue Output Type : Current: 4...20 mA, current: 0...20 mA, voltage: 0...10 V, voltage: - 10...10 V

    Non-Linearity : +/- 0.2 %FS

    Absolute Accuracy Error : +/- 1 % of full scale, +/- 0.2 % of full scale at 25 °C

    Analogue Output Resolution : 12 bits, 11 bits + sign

    Stabilisation Time : 1 ms

    Output Ripple : 20 mV

    Cross Talk : <= 1 LSB

    Resistance to Magnetic Fields : 30 A/m conforming to EN/IEC 61000-4-8

    Load Impedance Ohmic : 1 kOhm voltage, 300 Ohm current

    Sampling Duration : 1 ms, 10 ms

    Permissible Continuous Overload : 13 V, analogue input type: voltage, 40 mA, analogue input type: current

    Vibration Resistance : 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail

    Ambient Air Temperature For Operation : -10-55 °C horizontal installation, -10-35 °C vertical installation

    Standards : EN/IEC 61131-2, EN/IEC 61010-2-201

    Local Signalling : 1 LED (green) for PWR

    Electrical Connection : 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs, 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs, outputs and supply

    Input Impedance : <= 50 Ohm current, >= 1 MOhm voltage

    Storage Altitude : 0-3000 m

    Insulation : Between input and supply at 1500 V AC, between input and internal logic at 500 V AC, between output and supply at 1500 V AC, between output and internal logic at 500 V AC

    Load Type : Resistive

    Type of Cable : Twisted shielded pairs cable <30 m for output circuit

    Range Compatibility : Modicon M221, Modicon M241, Modicon M251, Modicon M262

    Ambient Air Temperature For Storage : -25-70 °C

    Weight : 0.1 kg
