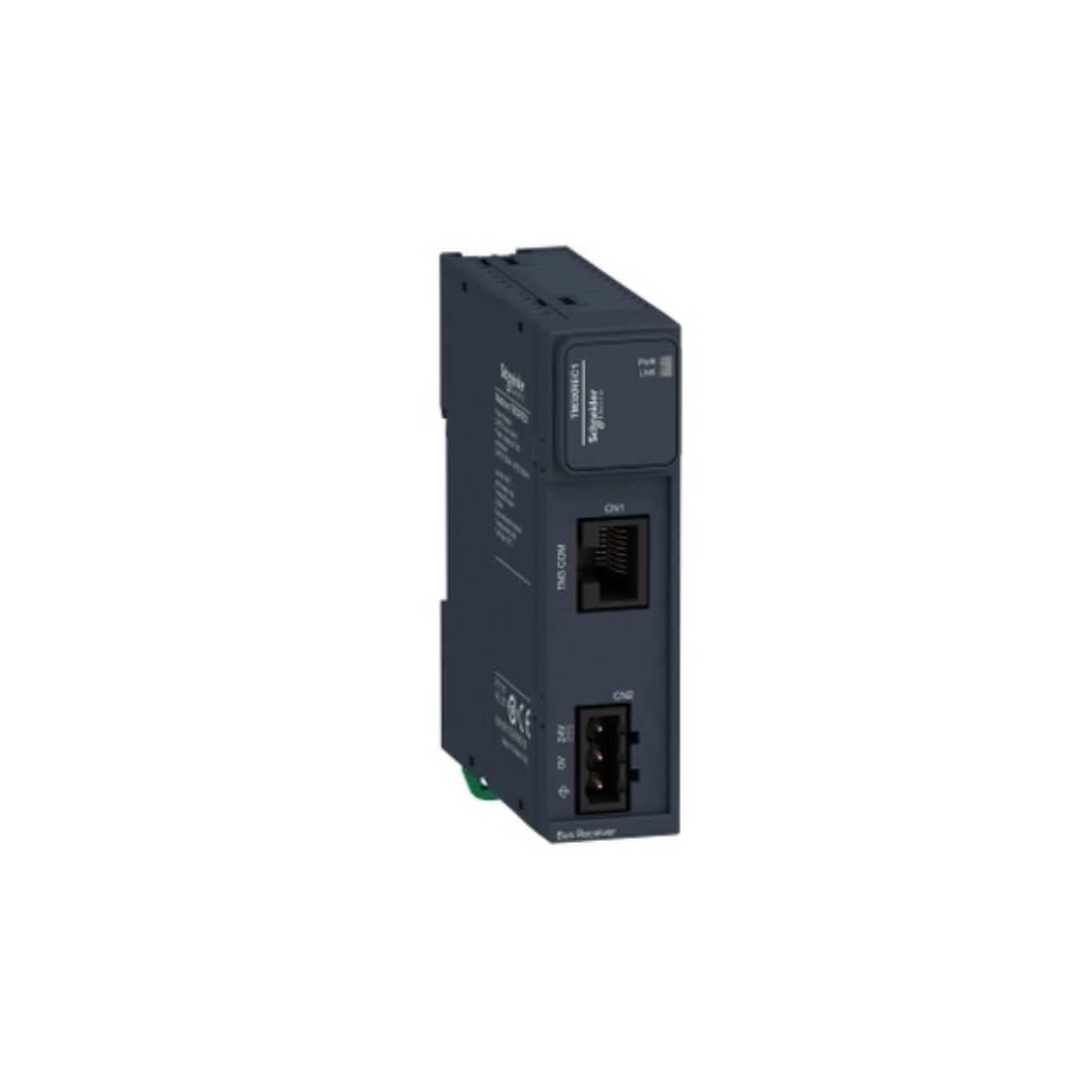

Schneider Electric Modicon TM3 Remote Receiver Module TM3XREC1
Schneider Electric Modicon TM3 Remote Receiver Module TM3XREC1

Schneider Electric Modicon TM3 Remote Receiver Module TM3XREC1

Regular price AED 504.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Remote Receiver Module
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric TM3XREC1 Remote Receiver Module is part of the Modicon TM3 range, a range of I/O expansion modules for the Modicon M221, M241, M251, and M262. The remote receiver module is physically connected via a bus extension cable and provides 7 I/O channels. It is a remote receiver module with a nominal supply voltage of 24 V DC, a power consumption of 40 mA at 24 V DC via the bus connector, and a maximum power loss of 1 W. The cable distance between the devices is 0.5mm to 5mm. Extension cable with 2 RJ45 conductors between receiver and transmitter.

    Schneider Electric TM3XREC1 Modicon TM3 Remote Receiver Module has an RJ45 connector for connecting the bus transmitter, a removable screw terminal block, and 3 terminals for electrical connection. It has an IP20 certification. It is certified by CE, Merchant Marine, GOST, CSA HazLoc, and C-Tick. Complies with Class I Division 2 Groups A/B/C/D CSA C22.2 No 213, Class I Division 2 Groups A/B/C UL 1604, CSA C22.2 No 142, IEC 61131-2 and UL 508 standards.

    This module is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers. Supports TH35-15 DIN rails according to IEC 60715, TH35-7.5 DIN rails according to IEC 60715, and plates or panels with mounting kits. Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase your controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, and M251 logic controllers.

    Features
    • Connected using a bus extension cable.
    • The cable distance between the devices is 0.5mm to 5mm.
    • IP20 certification
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Remote Transmitter Module

    Model : TM3XREC1

    Resistance To Tlectrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 6 kV on contact conforming to EN/IEC 61000-4-2

    Rated Supply Voltage : 24 V DC by external supply (- 15...20 %)

    Current Consumption : 40 mA at 24 V DC via bus connector

    Depth : 73.3 mm

    Height : 90 mm

    IP Degree Of Protection : IP20 with protective cover in place

    Marking : CE

    Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit
    Range Of Product : Modicon M340 Automation Platform

    Operating Altitude : 0...2000 m

    Pollution Degree : 2

    Power Supply Output Current : 560-560 mA 5 V for expansion bus, 560-560 mA 24 V for expansion bus

    Certifications : Merchant Navy, GOST, C-Tick, CSA HazLoc, CE, UKCA, RCM, EAC, cULus

    Range Of Product : Modicon TM3

    Relative Humidity : 5-95 % without condensation

    Shock Resistance : 15 gn for 11 ms

    Width : 23.65 mm

    Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3

    Maximum Number Of I/O Expansion Module : 7

    Electromagnetic Emission : Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

    Maximum Power Dissipation in W : 1 W

    Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

    Maximum Power Dissipation in W : 0.6 W

    Cable Distance Between Devices : 0.5-5 mm extension cable with 2 RJ45 conductor between receiver and transmitter

    Vibration Resistance : 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on panel

    Ambient Air Temperature For Operation : -10-55 °C (horizontal installation), -10-50 °C (vertical installation)

    Ambient Air Temperature For Storage : -40-70 °C

    Local Signalling : 1 LED (green) for power supply, 1 LED (green) for link status

    Standards : Class I Division 2 Groups A/B/C/D CSA C22.2 No 213, Class I Division 2 Groups A/B/C UL 1604, CSA C22.2 No 142, IEC 61131-2, UL 508

    Range Compatibility : Modicon M221, Modicon M251, Modicon M241, Modicon M262

    Electrical Connection : RJ45 connector for connecting the bus transmitter, removable screw terminal block, 3 terminal(s) for connecting the 24 V DC power supply

    Storage Altitude : 0-3000 m

    Weight : 0.075 kg
