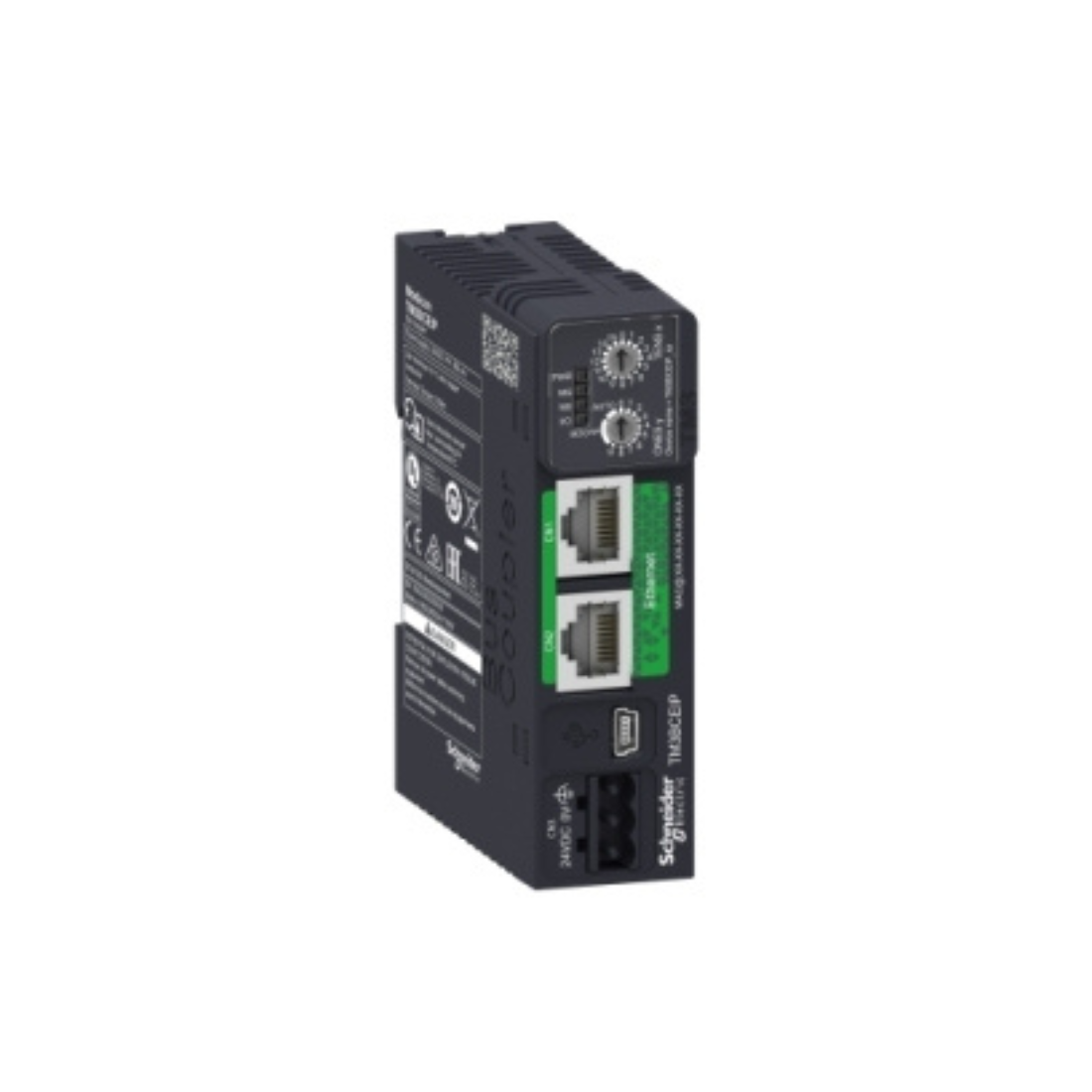

Schneider Electric Modicon TM3 Distributed IO Module IP20 Optimized Bus Coupler Ethernet Interface TM3BCEIP
Schneider Electric Modicon TM3 Distributed IO Module IP20 Optimized Bus Coupler Ethernet Interface TM3BCEIP

Schneider Electric Modicon TM3 Distributed IO Module IP20 Optimized Bus Coupler Ethernet Interface TM3BCEIP

Regular price AED 1,327.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:I/O Distributed Module
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric TM3BCEIP I/O Distributed Module is part of the Modicon TM3 range, a range of I/O expansion modules for the Modicon M221, M241, M251 and M262. The distributed I/O module supports daisy chain topology. It offers half-duplex, full-duplex, and auto-negotiation sharing modes with a data transfer rate of 10/100 Mbps. This processor provides web services such as web server, Ethernet and web server, USB. It has 1 LED for PWR (system status), 1 LED for MS (module status), 1 LED for NS (network status), and 1 LED for signaling I/O status.

    Schneider Electric TM3BCEIP Input Or Output Distributed Module has IP20 certification. Its dimensions are 27 mm (width) x 70 mm (depth) x 96.5 mm (height). It is suitable for bus coupler modules. It is compatible with logic controllers and motion controllers. Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. Increase controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, M251, and M262 logic controllers.

    Features
    • It offers half-duplex, full-duplex, and auto-negotiation sharing modes with a data transfer rate of 10/100 Mbps.
    • IP20 certification
    • Compatible with logic controllers and motion controllers.
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : I/O Distributed Module

    Model : TM3BCEIP

    Current Consumption : 0.8 A at 24 V DC internal supply maximum 7 expansion modules

    Depth : 70 mm

    Fixing Mode : By clipping locks (rail), by screws (mounting plate)

    Height : 96.5 mm

    IP Degree of Protection : IP20 conforming to IEC/EN 61010-2-201

    Operating Altitude : 0...2000 m

    Pollution Degree : 2

    Relative Humidity : 10-95 % non-condensing

    Transmission Rate : 10/100 Mbit/s

    Port Ethernet : 10/100BASE-T

    Width : 27 mm

    Range Of Product : Modicon TM3

    Communication Service : Ethernet/IP adapter, Modbus TCP/IP server, RSTP (Ring topology support), SNMP, web server, DHCP client, BOOTP, address conflict detection, FTP server

    Web Services : Web server, Ethernet, web server, USB

    Exchange Mode : Half duplex, full duplex, auto negotiation

    Vibration Resistance : 3M4 on 35 x 15 mm symmetrical DIN rail

    Ambient Air Temperature For Operation : -10-60 °C

    Local Signalling : 1 LED green/red for PWR (System Status), 1 LED green/red for MS (Module Status), 1 LED green/red for NS (Network Status), 1 LED green/red for I/O status

    Compatibility : Logic controller, motion controller

    Standards : ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-2:2007, Marine specification (LR, ABS, DNV, GL), UL 1604, UL 508

    Communication Port Protocol : Ethernet IP/Modbus TCP

    Connector Type : RJ45 2 Ethernet daisy chain isolated, USB device port Mini-B

    Control Signal Type : Ethernet IP, Modbus TCP, IPv4 (internet protocol)

    Storage Altitude : 0-3000 m

    Ambient Air Temperature For Storage : -25-70 °C

    Topology : Daisy Chain

    Weight : 0.10 kg
