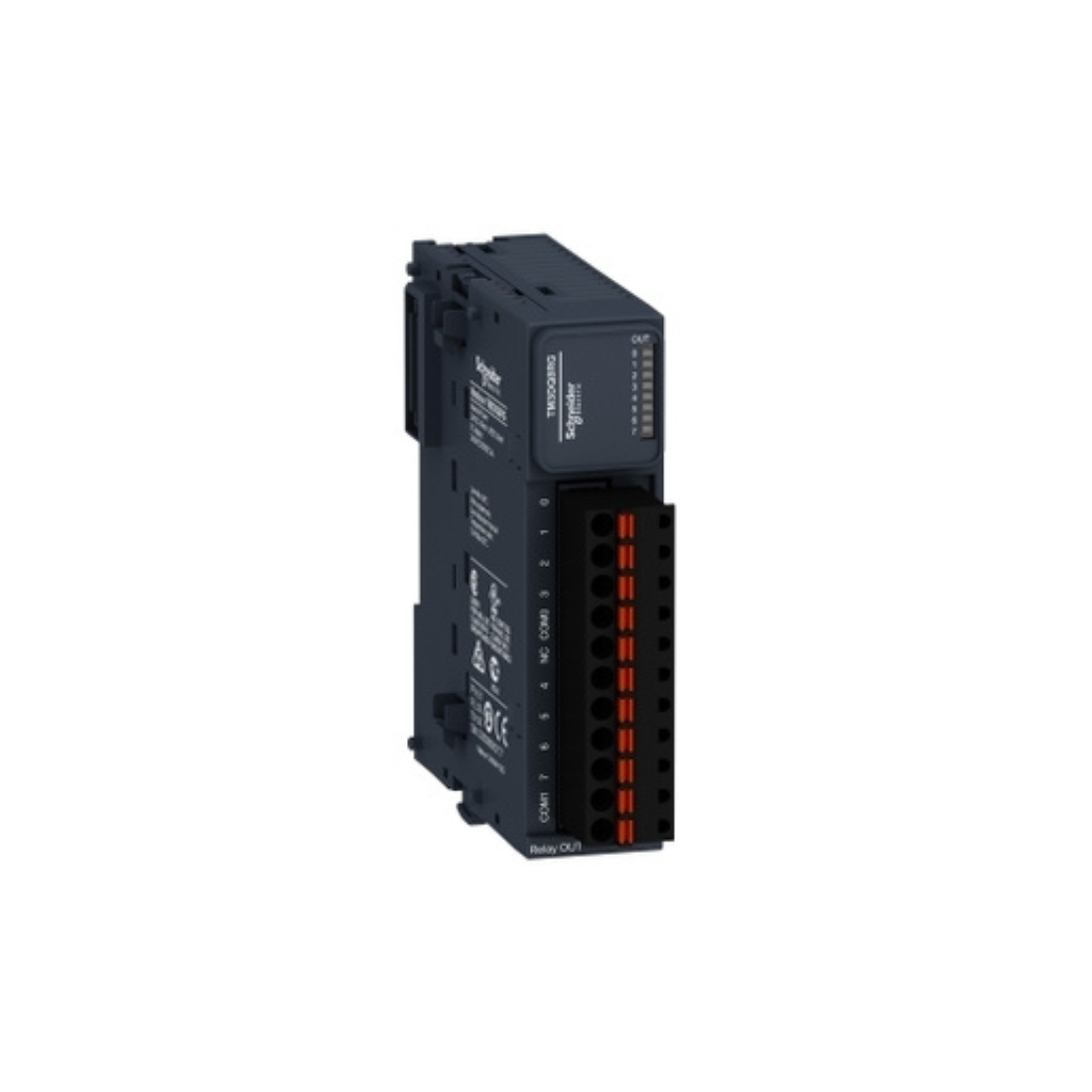

Schneider Electric Modicon TM3 Discrete Output Module 8 Relay Outputs Spring 24V DC TM3DQ8RG

Name: Schneider Electric Modicon TM3 Discrete Output Module 8 Relay Outputs Spring 24V DC TM3DQ8RG
Brand: Schneider Electric
Price: 405.3 AED
Availability: InStock

AED 405.30

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Discrete Output Module

Description

Schneider Electric TM3DQ8RG Discrete Output Module is part of the Modicon TM3 range, a range of I/O expansion modules for the Modicon M221, M241, M251 and M262. The discrete output module provides 8 relay outputs with source or sink logic (positive/negative). It is an output module with an output voltage of 240V AC, 30V DC and a current consumption of 40mA at 24V DC via bus connector. It can control variable speed drives or any device equipped with a current or voltage input. There is isolation between output and internal logic at 2300 V AC, outputs at 750 V AC, and output groups at 1500 V AC.

Schneider Electric TM3DQ8RG Modicon TM3 Discrete Output Module features a removable spring terminal for electrical connection with 5.08mm pitch adjustment for the outputs. It offers a mechanical durability of 20 million cycles and It has IP20 certification. It is CE, CULus, and C-Tick certified. Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251, and Modicon M221 logic controllers. Supports DIN rail type TH35-15, DIN rail type TH35-7.5 according to IEC 60715, and plate or panel mounting with mounting kit.

Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase your controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, and M251 logic controllers.

Features

Provides 8 relay outputs with source or sink logic
Features a removable spring terminal for electrical connection with 5.08mm pitch adjustment for the outputs.
IP20 protection
It has a simple interlocking mounting mechanism.

Specifications

Brand : Schneider Electric

Item Name : Discrete Output Module

Model : TM3DQ8RG

Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

Current Consumption : 5 mA at 5 V DC via bus connector (at state off), 0 mA at 24 V DC via bus connector (at state off), 40 mA at 24 V DC via bus connector (at state on), 30 mA at 5 V DC via bus connector (at state on)

Depth : 84.6 mm

Height : 90 mm

IP Degree Of Protection : IP20 with protective cover in place

Marking : CE

Mechanical Durability : 20000000 cycles

Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit

Operating Altitude : 0...2000 m

Pollution Degree : 2

Certifications : C-Tick, cULus

Range Of Product : Modicon TM3

Relative Humidity : 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage)

Shock Resistance : 15 gn for 11 ms

Width : 27.4 mm

Discrete Output Current : 2000 mA for relay output

Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

Surge Withstand : 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC

Resistance To Fast Transients : 2 kV for relay output conforming to EN/IEC 61000-4-4

Electromagnetic Emission : Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

Discrete Output Type : Relay normally open

Discrete Output Number : 8

Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Maximum Cable Distance : Between devices unshielded cable: <30 m for relay output

Discrete Output : Logic positive or negative

Discrete I/O Number : 8

Discrete Output Voltage : 24 V DC for relay output, 240 V AC

Resistance to Magnetic Fields : 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8

Minimum Load : 10 mA at 5 V DC for relay output

Vibration Resistance : 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on panel

Ambient Air Temperature For Operation : -10-35 °C vertical installation, -10-55 °C horizontal installation

Standards : EN/IEC 61131-2, EN/IEC 61010-2-201

Local Signalling : 1 LED per channel (green) for output status

Electrical Connection : 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs

Storage Altitude : 0-3000 m

Insulation : Between output and internal logic at 2300 V AC, between outputs at 750 V AC, between output groups at 1500 V AC

Range Compatibility : Modicon M241, Modicon M251, Modicon M221, Modicon M262

Ambient Air Temperature For Storage : -25-70 °C

Weight : 0.11 kg
