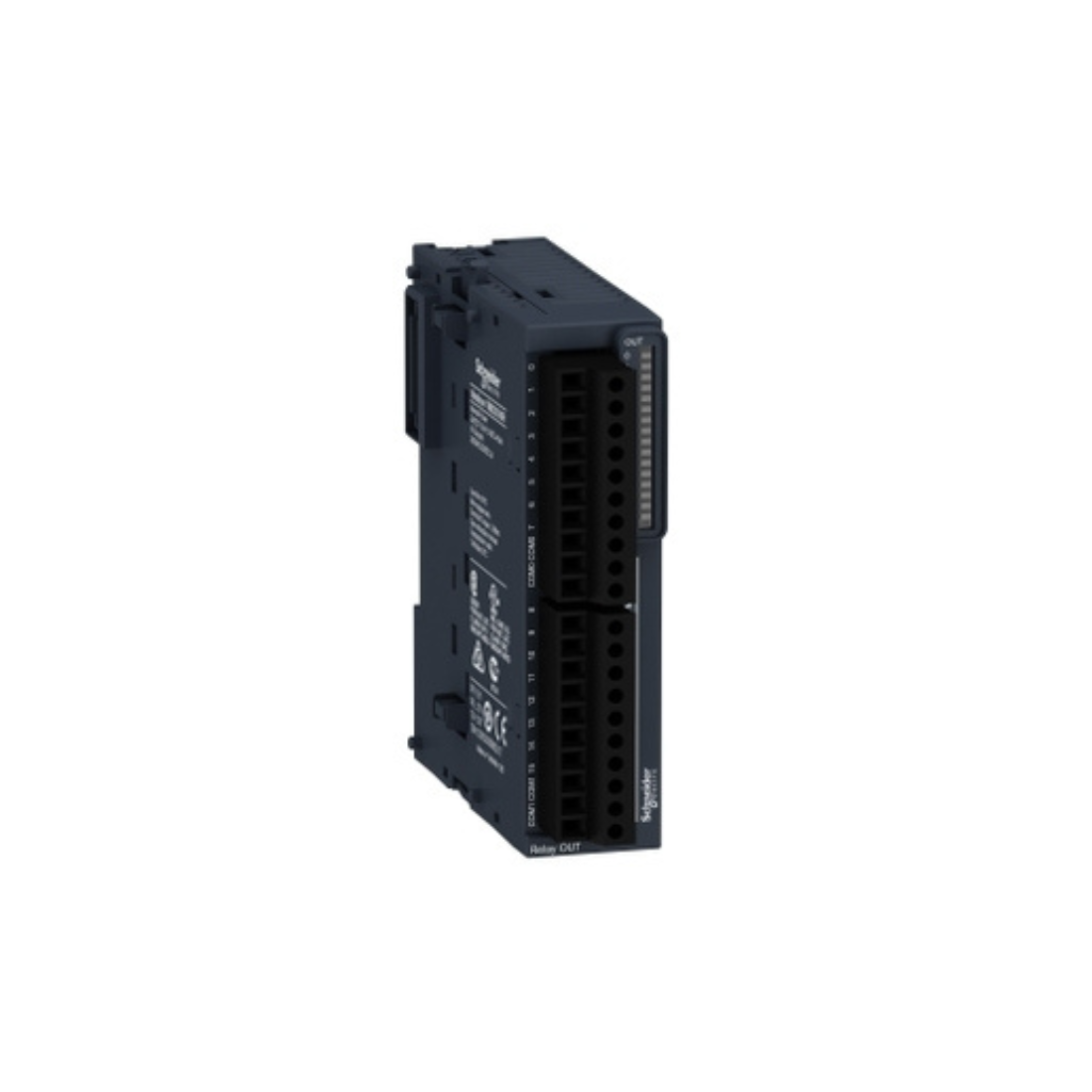

Schneider Electric Modicon TM3 Discrete Output Module 16 Relay Outputs Screw 24V DC TM3DQ16R
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Discrete Output Module
Description
Schneider Electric TM3DQ16R Discrete Output Module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers. It consists of 16 2A normally open relay outputs. It is equipped with a removable screw terminal block and can be mounted on a 35mm symmetrical DIN rail. This digital I/O module complements the integrated I/O of the Modicon M221, M221 Book, M241, and M251 logic controllers. There is isolation between output and internal logic at 2300 V AC, outputs at 750 V AC, and output groups at 1500 V AC.
Discrete Output Module features a removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs and outputs. It has an IP20 certification. Its dimensions are 23.6 mm (width) x 70 mm (depth) x 90 mm (height). It has CE certification. Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers.
Supports DIN rail type TH35-15, DIN rail type TH35-7.5 according to IEC 60715, and plate or panel mounting with mounting kit. Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase the controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, and M251 logic controllers.
Features
- 16 2A normally open relay outputs.
- Equipped with a removable screw terminal block and can be mounted on a 35mm symmetrical DIN rail.
- It features a removable spring terminal for electrical connection with a 5.08mm pitch adjustment for inputs and outputs.
- IP20 protectionÂ
| Brand | Schneider Electric |
| Item Name | Discrete Output Module |
| Model | TM3DQ16R |
| Resistance To Electrostatic Discharge | 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2 |
| Current Consumption | 0 mA at 24 V DC via bus connector (at state off), 75 mA at 24 V DC via bus connector (at state on) |
| Depth | 84.6 mm |
| Height | 90 mm |
| IP Degree Of Protection | IP20 with protective cover in place |
| Marking | CE |
| Mechanical Durability | 20000000 cycles |
| Mounting Support | Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit |
| Operating Altitude | 0...2000 m |
| Pollution Degree | 2 |
| Certifications | C-Tick, cULus |
| Range Of Product | Modicon TM3 |
| Relative Humidity | 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage) |
| Shock Resistance | 15 gn for 11 ms |
| Width | 27.4 mm |
| Discrete Output Current | 2000 mA for relay output |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| Surge Withstand | 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC |
| Resistance To Fast Transients | 2 kV for relay output conforming to EN/IEC 61000-4-4 |
| Electromagnetic Emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011 |
| Discrete Output Type | Relay normally open |
| Discrete Output Number | 16 |
| Resistance To Conducted Disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Maximum Cable Distance | Between devices unshielded cable: <30 m for relay output |
| Discrete Output | Logic positive or negative |
| Discrete I/O Number | 16 |
| Discrete Output Voltage | 240 V AC for relay output, 30 V DC for relay output |
| Resistance to Magnetic Fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| Minimum Load | 10 mA at 5 V DC for relay output |
| Vibration Resistance | 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on panel |
| Ambient Air Temperature For Operation | -10-35 °C vertical installation, -10-55 °C horizontal installation |
| Standards | EN/IEC 61010-2-201, EN/IEC 61131-2 |
| Local Signalling | 1 LED per channel (green) for output status |
| Electrical Connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs |
| Storage Altitude | 0-3000 m |
| Insulation | Between output and internal logic at 2300 V AC, between outputs at 750 V AC, between output groups at 1500 V AC |
| Range Compatibility | Modicon M241, Modicon M251, Modicon M221, Modicon M262 |
| Ambient Air Temperature For Storage | -25-70 °C |
| Weight | 0.145 kg |
