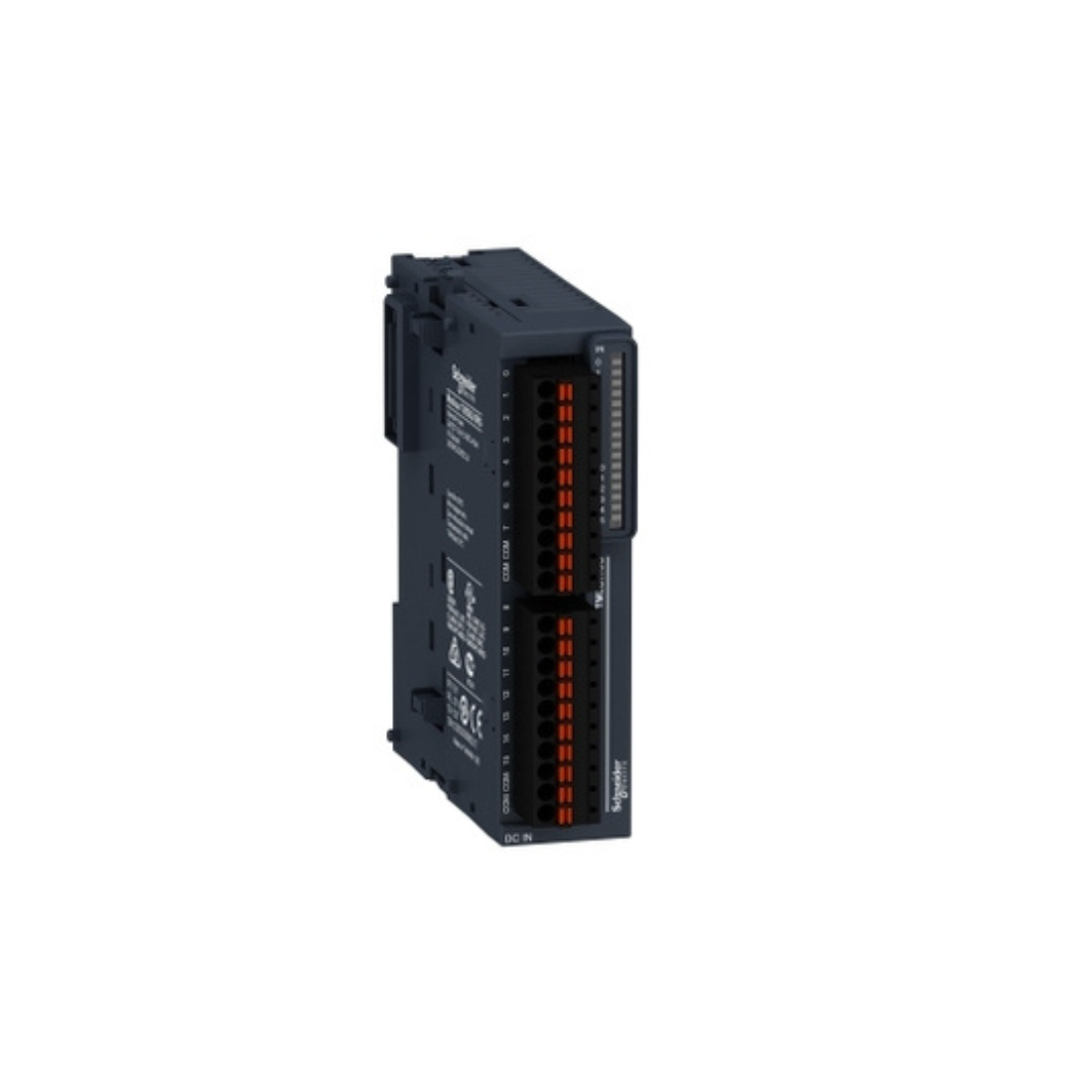

Schneider Electric Modicon TM3 Discrete Output Module 16 Outputs Relays Spring TM3DQ16RG

Name: Schneider Electric Modicon TM3 Discrete Output Module 16 Outputs Relays Spring TM3DQ16RG
Brand: Schneider Electric
Price: 571.2 AED
Availability: InStock

AED 571.20

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Discrete Output Module

Description

Schneider Electric TM3DQ16RG Discrete Output Module is part of the Modicon TM3 range, a range of I/O expansion modules for the Modicon M221, M241, M251 and M262. The discrete output module provides 16 relay outputs with positive or negative logic. It is an output module with an output voltage of 240V AC, 30V DC and a current consumption of 75mA at 24V DC via bus connector. It is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is isolation between output and internal logic at 2300 V AC, outputs at 750 V AC, output groups at 1500 V AC.

Schneider Electric TM3DQ16RG Modicon TM3 Discrete Output Module has a removable spring terminal for electrical connection with a 3.81mm pitch adjustment for the outputs. It offers a mechanical durability of 20 million cycles. It has an IP20 certification. Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controllers. Supports DIN rail type TH35-15, DIN rail type TH35-7.5 according to IEC 60715 and plate or panel mounting with mounting kit.

Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase your controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241 and M251 logic controllers.

Features

Pprovides 16 relay outputs with positive or negative logic.
It has a removable spring terminal for electrical connection with a 3.81mm pitch adjustment for the outputs.
It has an output voltage of 240V AC, 30V DC and a current consumption of 75mA at 24V DC via bus connector.
IP20 protection

Specifications

Brand : Schneider Electric

Item Name : Discrete Output Module

Model : TM3DQ16RG

Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

Current Consumption : 0 mA at 24 V DC via bus connector (at state off), 75 mA at 24 V DC via bus connector (at state on)

Depth : 84.6 mm

Height : 90 mm

IP Degree Of Protection : IP20 with protective cover in place

Marking : CE

Mechanical Durability : 20000000 cycles

Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit

Operating Altitude : 0...2000 m

Pollution Degree : 2

Certifications : C-Tick, cULus

Range Of Product : Modicon TM3

Relative Humidity : 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage)

Shock Resistance : 15 gn for 11 ms

Width : 27.4 mm

Discrete Output Current : 2000 mA for relay output

Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

Surge Withstand : 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC

Resistance To Fast Transients : 2 kV for relay output conforming to EN/IEC 61000-4-4

Electromagnetic Emission : Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

Discrete Output Type : Relay normally open

Discrete Output Number : 16

Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Maximum Cable Distance Between Devices : Unshielded cable: <30 m for relay output

Discrete Output : Logic positive or negative

Discrete I/O Number : 16

Discrete Output Voltage : 240 V AC for relay output, 30 V DC for relay output

Resistance to Magnetic Fields : 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8

Minimum Load : 10 mA at 5 V DC for relay output

Vibration Resistance : 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on panel

Ambient Air Temperature For Operation : -10-35 °C vertical installation, -10-55 °C horizontal installation

Standards : EN/IEC 61131-2, EN/IEC 61010-2-201

Local Signalling : 1 LED per channel (green) for output status

Electrical Connection : 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for outputs

Storage Altitude : 0-3000 m

Insulation : Between output and internal logic at 2300 V AC, between outputs at 750 V AC, between output groups at 1500 V AC

Range Compatibility : Modicon M241, Modicon M251, Modicon M221, Modicon M262

Ambient Air Temperature For Storage : -25-70 °C

Weight : 0.145 kg
