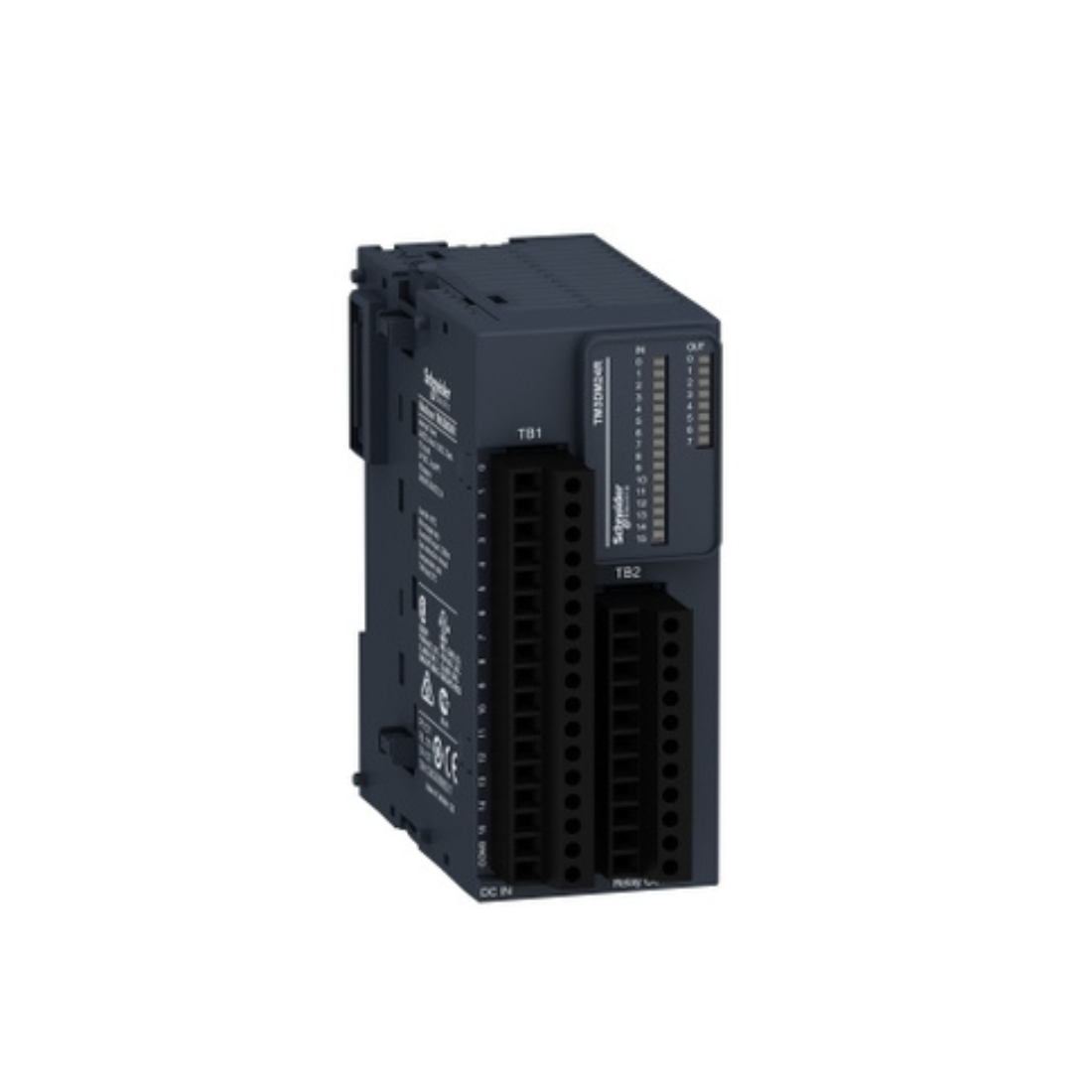

Schneider Electric Modicon TM3 Discrete IO Module 24 IO 16 Inputs 8 Relay Outputs Screw 24V DC TM3DM24R

Name: Schneider Electric Modicon TM3 Discrete IO Module 24 IO 16 Inputs 8 Relay Outputs Screw 24V DC TM3DM24R
Brand: Schneider Electric
Price: 598.5 AED
Availability: InStock

AED 598.50

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Discrete Output Module

Description

Schneider Electric TM3DM24R Discrete Input Or Output Module is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251, and M262. The discrete I/O module provides 16 input channels, and 8 relay output channels with sink or source (positive/negative) discrete logic. It is an I/O module with a relay output voltage of 24V DC, 240V AC, current consumption of 65mA, and 5mA at 5V DC via a bus connector.

Discrete I/O Module is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an Insulation between input/output and internal logic at 500V AC, input and output groups at 1500V AC, open contact at 750V AC, and non-insulated between inputs/outputs. It is furnished with a removable screw terminal for electrical connection with 3.81mm pitch adjustment for inputs and outputs. It is an IP20-rated. It is certified by CE, CULus, and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers.

It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715, and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241, and M251 logic controllers.

Features

Provides 16 input channels, and 8 relay output channels with sink or source discrete logic.
It has a relay output voltage of 24V DC, 240V AC, current consumption of 65mA, and 5mA at 5V DC via a bus connector.
IP20 protection

Specifications

Brand : Schneider Electric

Item Name : Discrete I/O Module

Model : TM3DM24R

Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

Current Consumption : 5 mA at 5 V DC via bus connector (at state off), 0 mA at 24 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off), 65 mA at 5 V DC via bus connector (at state on)

Depth : 84.6 mm

Height : 90 mm

IP Degree Of Protection : IP20 with protective cover in place

Marking : CE

Mechanical Durability : 20000000 cycles

Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit

Operating Altitude : 0...2000 m

Pollution Degree : 2

Certifications : C-Tick, cULus

Range Of Product : Modicon TM3

Relative Humidity : 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage)

Shock Resistance : 15 gn for 11 ms

Width : 42.9 mm

Discrete Output Current : 2000 mA for relay output

Discrete Input Current : 7 mA for input

Current State 1 Guaranteed : >= 2.5 mA (input)

Voltage State 1 Guaranteed : 15...28.8 V for input

Discrete Input Voltage : 24 V

Voltage State 0 Guaranteed : 0...5 V for input

Current State 0 Guaranteed : <= 1 mA (input)

Discrete Input Number : 16 for input conforming to IEC 61131-2 Type 1

Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

Surge Withstand : 2 kV output common mode conforming to EN/IEC 61000-4-5, 1 kV input common mode conforming to EN/IEC 61000-4-5

Resistance To Fast Transients : 1 kV for I/O conforming to EN/IEC 61000-4-4, 2 kV for relay output conforming to EN/IEC 61000-4-4

Electromagnetic Emission : Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

Discrete Output Type : Relay normally open

Discrete Output Number : 8

Discrete Input Logic : Sink or Source (positive/negative)

Discrete Input Voltage Type : DC

Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Maximum Cable Distance Between devices unshielded cable : <30 m for relay output

Discrete Output Logic : Positive or negative

Discrete I/O Number : 24

Discrete Output Voltage : 24 V DC for relay output, 240 V AC for relay output

Resistance to Magnetic Fields : 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8

Minimum Load : 10 mA at 5 V DC for relay output

Vibration Resistance : 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on panel

Ambient Air Temperature For Operation : -10-35 °C vertical installation, -10-55 °C horizontal installation

Standards : EN/IEC 61131-2, EN/IEC 61010-2-201

Local Signalling : 1 LED per channel (green) for output status

Electrical Connection : 17 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs, 11 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs

Input Impedance : 3.4 kOhm

Storage Altitude : 0-3000 m

Insulation : Between output and internal logic at 2300 V AC, between outputs at 750 V AC, between output groups at 1500 V AC

Range Compatibility : Modicon M241, Modicon M251, Modicon M221, Modicon M262

Ambient Air Temperature For Storage : -25-70 °C

Weight : 0.145 kg
