Schneider Electric Modicon TM3 Discrete Input Module 8 Inputs Screw 24V DC TM3DI8
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Discrete Input Module
Description

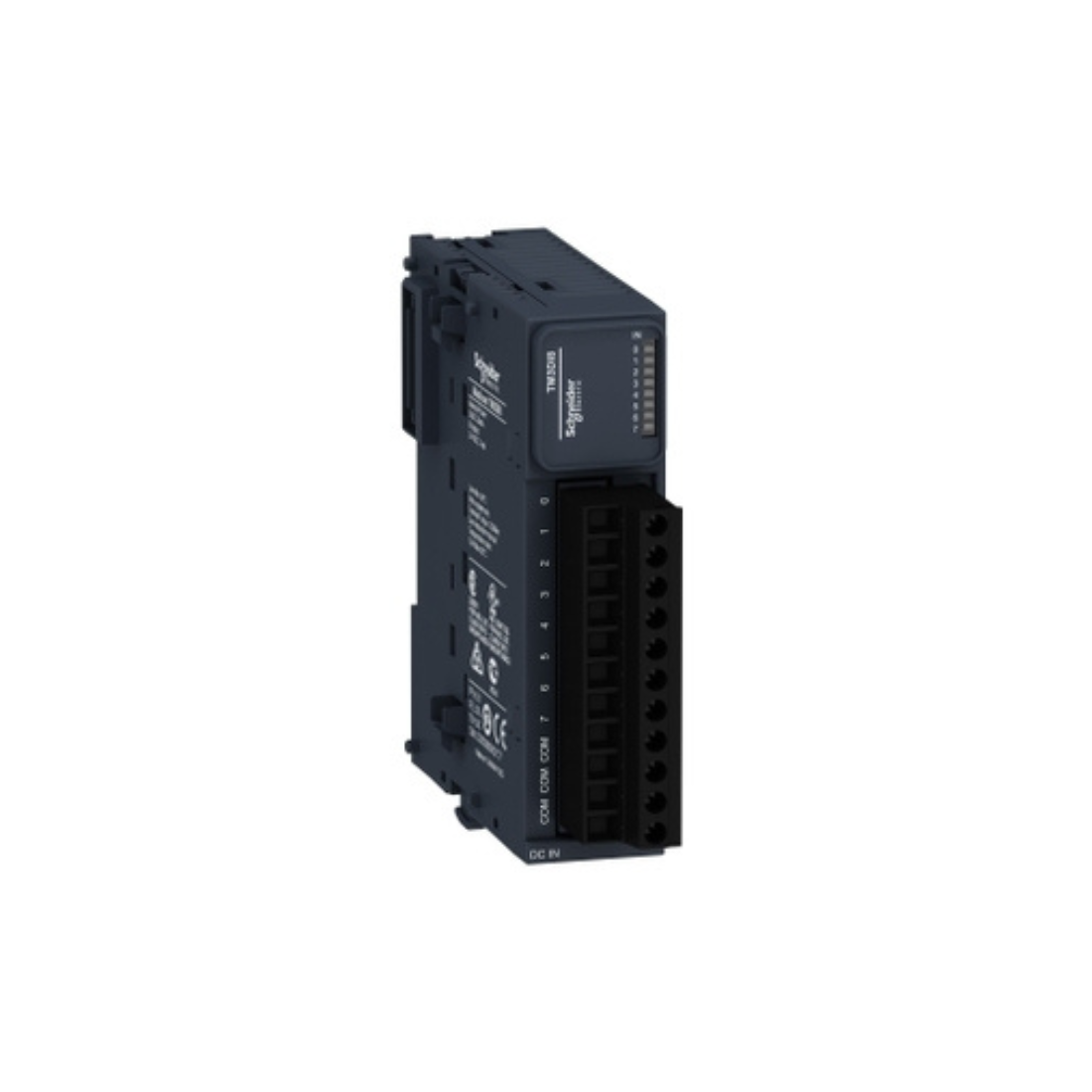

Schneider Electric TM3DI8 Discrete Input Module is part of the Modicon TM3 range, a range of I/O expansion modules for the Modicon M221, M241, M251, and M262. The discrete input module offers 8 inputs with sink or source logic (positive/negative). It is an input module with an input voltage of 24V DC and a current consumption of 24mA/5mA at 5V DC via a bus connector. This allows to create configurations with up to 8 inputs. There is isolation between the input and the internal logic at 500 VAC and there is no isolation between the inputs.
Schneider Electric TM3DI8 Modicon TM3 Discrete Input Module features a removable screw terminal for electrical connection with 5.08mm pitch adjustment for the inputs. It has an IP20 certification. Its dimensions are 27.4 mm (width) x 84.6 mm (depth) x 90 mm (height). It weighs 0.110 kg. Schneider Electric Discrete Input Module is CE, CULus, and C-Tick certified. Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and
Modicon M221 logic controllers. Supports DIN rail type TH35-15, DIN rail type TH35-7.5 according to IEC 60715, and plate or panel mounting with mounting kit. Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase your controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, and M251 logic controllers.
Features
- Provides 8 relay Inputs with source or sink logic
- It features a removable screw terminal for electrical connection with a 5.08mm pitch adjustment for the Inputs.
- IP20 protection
- It has a simple interlocking mounting mechanism.
| Brand | Schneider Electric |
| Item Name | Discrete Input Module |
| Model | TM3DI8 |
| Resistance To Electrostatic Discharge | 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2 |
| Current Consumption | 5 mA at 5 V DC via bus connector (at state off), 0 mA at 24 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off), 24 mA at 5 V DC via bus connector (at state on) |
| Depth | 84.6 mm |
| Height | 90 mm |
| IP Degree Of Protection | IP20 with protective cover in place |
| Marking | CE |
| Mounting Support | Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit |
| Operating Altitude | 0...2000 m |
| Pollution Degree | 2 |
| Certifications | CE, cULus, UKCA, RCM, EAC |
| Range Of Product | Modicon TM3 |
| Relative Humidity | 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage) |
| Shock Resistance | 15 gn for 11 ms |
| Width | 27.4 mm |
| Discrete Input Current | 7 mA for input |
| Current State 1 Guaranteed | >= 2.5 mA (input) |
| Voltage State 1 Guaranteed | 15...28.8 V for input |
| Discrete Input Voltage | 24V |
| Voltage State 0 Guaranteed | 0...5 V for input |
| Current State 0 Guaranteed | <= 1 mA (input) |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| Surge Withstand | 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC |
| Resistance To Fast Transients | 1 kV for I/O conforming to EN/IEC 61000-4-4 |
| Electromagnetic Emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011 |
| Discrete Output Type | Relay normally open |
| Discrete Input Number | 8 for input conforming to IEC 61131-2 Type 1 |
| Resistance To Conducted Disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Maximum Cable Distance | Between devices : Unshielded cable: <30 m for relay output |
| Discrete Input Logic | Sink or source (positive/negative) |
| Discrete I/O Number | 8 |
| Discrete Input Voltage Type | DC |
| Resistance to Magnetic Fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| Minimum Load | 10 mA at 5 V DC for relay output |
| Vibration Resistance | 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on panel |
| Ambient Air Temperature For Operation | -10-35 °C vertical installation, -10-55 °C horizontal installation |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Local Signalling | 1 LED per channel (green) for input status |
| Electrical Connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs |
| Input Impedance | 3.4 kOhm |
| Storage Altitude | 0-3000 m |
| Insulation | Between input and internal logic at 500 V AC, non-insulated between inputs |
| Range Compatibility | Modicon M241, Modicon M251, Modicon M221, Modicon M262 |
| Ambient Air Temperature For Storage | -25-70 °C |
| Weight | 0.085 kg |
