Schneider Electric Modicon TM3 Discrete Input Module 32 Inputs HE10 24V DC TM3DI32K in Dubai, UAE
Schneider Electric Modicon TM3 Discrete Input Module 32 Inputs HE10 24V DC TM3DI32K in Dubai, UAE

Schneider Electric Modicon TM3 Discrete Input Module 32 Inputs HE10 24V DC TM3DI32K

Regular price AED 493.50
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Discrete Input Module
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

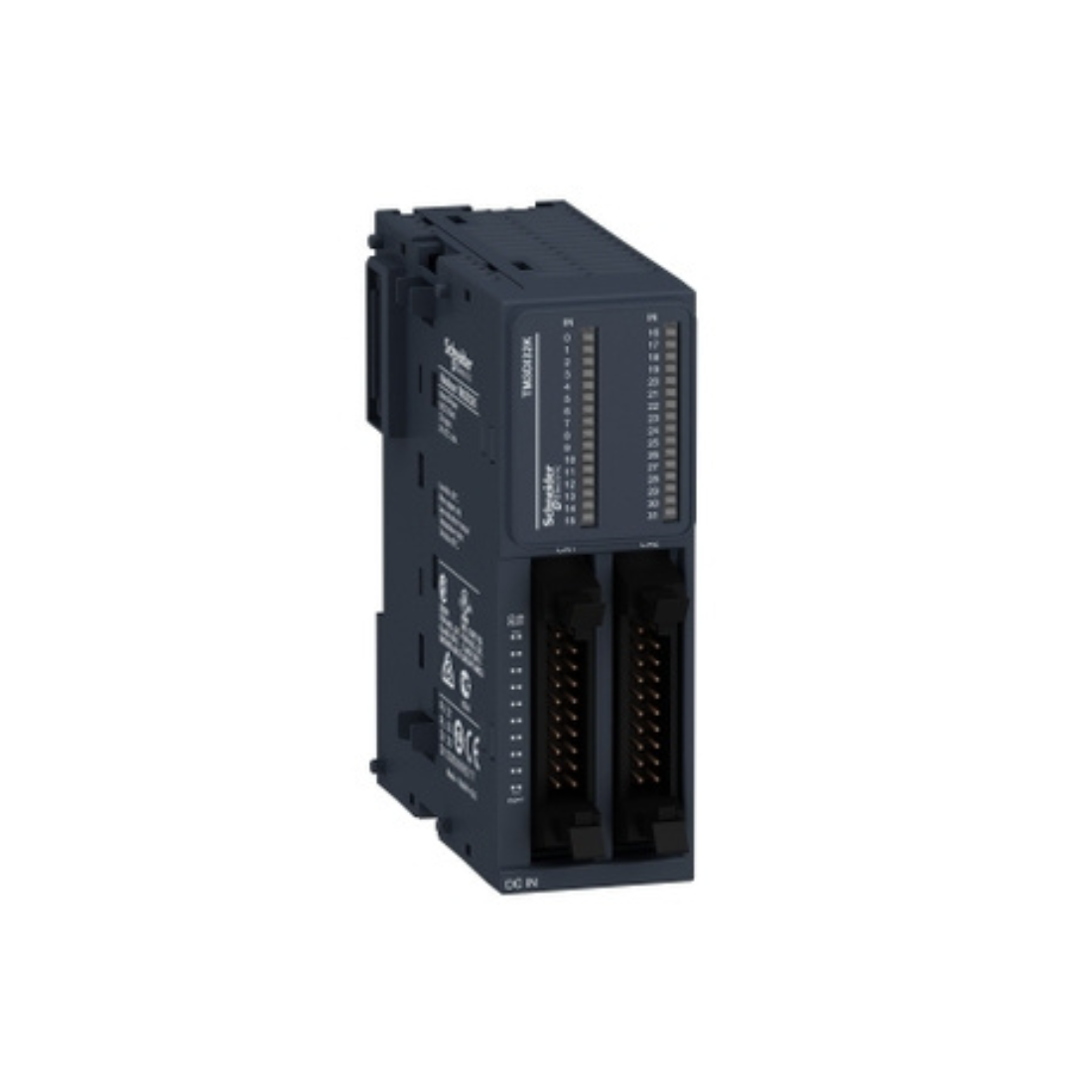

    Schneider Electric TM3DI32K Discrete Input Module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers. It consists of 32 logic inputs and is powered by 24 V DC. It is equipped with a removable HE10 connector and can be mounted on a 35mm symmetrical DIN rail. This digital I/O module complements the integrated I/O of the Modicon M221, M221 Book, M241, and M251 logic controllers. At 500 VAC there is isolation between the input and the internal logic and no isolation between the inputs.

    For electrical connection, Schneider Electric TM3DI32K Modicon TM3 Discrete Input Module is equipped with HE-10 plug-inlets. It has an IP20 certification. It has CE certification. Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers. Supports DIN rail type TH35-15, DIN rail type TH35-7.5 according to IEC 60715, and plate or panel mounting with mounting kit.

    Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase your controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, and M251 logic controllers.

    Features
    • It consists of 32 logic inputs and is powered by 24 V DC.
    • Equipped with a removable HE10 connector and can be mounted on a 35mm symmetrical DIN rail.
    • IP20 protection
    • It has a simple interlocking mounting mechanism.
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Discrete Input Module

    Model : TM3DI32K

    Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

    Current Consumption : 5 mA at 5 V DC via bus connector (at state off), 0 mA at 24 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off), 65 mA at 5 V DC via bus connector (at state on)

    Depth : 81.3 mm

    Height : 90 mm

    IP Degree Of Protection : IP20 with protective cover in place

    Marking : CE

    Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit

    Operating Altitude : 0...2000 m

    Pollution Degree : 2

    Certifications : CE, cULus, UKCA, RCM, EAC

    Range Of Product : Modicon TM3

    Relative Humidity : 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage)

    Shock Resistance : 15 gn for 11 ms

    Width : 33.5 mm

    Discrete Input Current : 5 mA for input

    Current State 1 Guaranteed : >= 2.5 mA (input)

    Voltage State 1 Guaranteed : 15...28.8 V for input

    Discrete Input Voltage : 24V

    Voltage State 0 Guaranteed : 0...5 V for input

    Current State 0 Guaranteed : <= 1 mA (input)

    Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

    Surge Withstand : 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC

    Resistance To Fast Transients : 1 kV for I/O conforming to EN/IEC 61000-4-4

    Electromagnetic Emission : Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

    Discrete Output Type : Relay normally open

    Discrete Input Number : 32 for input conforming to IEC 61131-2 Type 1

    Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

    Maximum Cable Distance Between devices : Unshielded cable: <30 m for relay output

    Discrete Input Logic : Sink or source (positive/negative)

    Discrete I/O Number : 32

    Discrete Input Voltage Type : DC

    Resistance to Magnetic Fields : 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8

    Minimum Load : 10 mA at 5 V DC for relay output

    Vibration Resistance : 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on panel

    Ambient Air Temperature For Operation : -10-35 °C vertical installation, -10-55 °C horizontal installation

    Standards : EN/IEC 61010-2-201, EN/IEC 61131-2

    Local Signalling : 1 LED per channel (green) for input status

    Electrical Connection : HE-10 connectorfor inputs

    Input Impedance : 4.4 kOhm

    Storage Altitude : 0-3000 m

    Insulation : Between input and internal logic at 500 V AC, non-insulated between inputs

    Range Compatibility : Modicon M241, Modicon M251, Modicon M221, Modicon M262

    Ambient Air Temperature For Storage : -25-70 °C

    Weight : 0.1 kg
