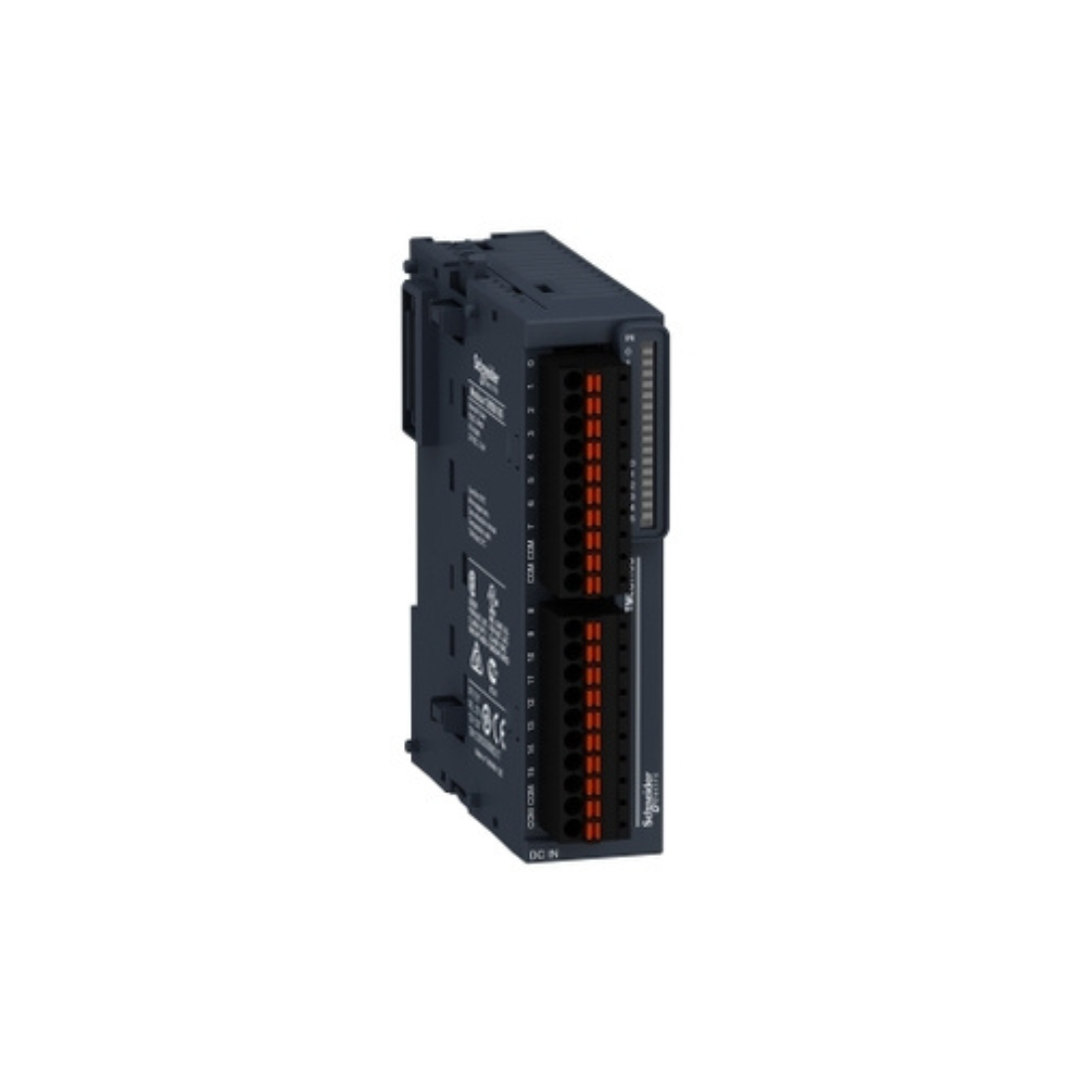

Schneider Electric Modicon TM3 Discrete Input Module 16 Inputs Spring TM3DI16G
Schneider Electric Modicon TM3 Discrete Input Module 16 Inputs Spring TM3DI16G

Schneider Electric Modicon TM3 Discrete Input Module 16 Inputs Spring TM3DI16G

Regular price AED 433.65
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Discrete Input Module
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric TM3DI16G Discrete Input Module is part of the Modicon TM3 range, a range of I/O expansion modules for the Modicon M221, M241, M251, and M262. The discrete input module offers 16 inputs with source or receive logic (positive/negative). It is an input module with an input voltage of 24V DC and a current consumption of 40mA/5mA at 5V DC via a bus connector. This allows configurations to be created with up to 16 inputs. At 500 VAC there is isolation between the input and the internal logic and no isolation between the inputs.

    Schneider Electric TM3DI16G Modicon TM3 Discrete Input Module has a removable spring terminal for electrical connection with a 3.81 mm pitch for the inputs. It has an IP20 certification and Its dimensions are 27.4 mm (width) x 84.6 mm (depth) x 90 mm (height). It is CE, CULus, and C-Tick certified. Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers. Supports DIN rail type TH35-15, DIN rail type TH35-7.5 according to IEC 60715, and plate or panel mounting with mounting kit.

    Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase your controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, and M251 logic controllers.

    Features
    • It offers 16 inputs with source or receive logic.
    • It has a removable spring terminal for electrical connection with a 3.81 mm pitch for the inputs.
    • IP20 protection
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Discrete Input Module

    Model : TM3DI16G

    Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

    Current Consumption : 40 mA at 5 V DC via bus connector (at state on), 5 mA at 5 V DC via bus connector (at state off), 0 mA at 24 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off)

    Depth : 84.6 mm

    Height : 90 mm

    IP Degree Of Protection : IP20 with protective cover in place

    Marking : CE

    Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit

    Operating Altitude : 0...2000 m

    Pollution Degree : 2

    Certifications : CE, cULus, UKCA, RCM, EAC

    Range Of Product : Modicon TM3

    Relative Humidity : 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage)

    Shock Resistance : 15 gn for 11 ms

    Width : 27.4 mm

    Discrete Input Current : 7 mA for input

    Current State 1 Guaranteed : >= 2.5 mA (input)

    Voltage State 1 Guaranteed : 15...28.8 V for input

    Discrete Input Voltage : 24V

    Voltage State 0 Guaranteed : 0...5 V for input

    Current State 0 Guaranteed : <= 1 mA (input)

    Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

    Surge Withstand : 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC

    Resistance To Fast Transients : 1 kV for I/O conforming to EN/IEC 61000-4-4

    Electromagnetic Emission : Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

    Discrete Input Number : 16 for input conforming to IEC 61131-2 type 3

    Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

    Maximum Cable Distance Between devices : Unshielded cable: <30 m for relay output

    Discrete Input Logic : Sink or source (positive/negative)

    Discrete I/O Number : 16

    Discrete Input Voltage Type : DC

    Resistance to Magnetic Fields : 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8

    Minimum Load : 10 mA at 5 V DC for relay output

    Vibration Resistance : 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on panel

    Ambient Air Temperature For Operation : -10-35 °C vertical installation, -10-55 °C horizontal installation

    Standards : EN/IEC 61131-2, EN/IEC 61010-2-201

    Local Signalling : 1 LED per channel (green) for input status

    Electrical Connection : 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs

    Input Impedance : 3.4 kOhm

    Storage Altitude : 0-3000 m

    Insulation : Between input and internal logic at 500 V AC, non-insulated between inputs

    Range Compatibility : Modicon M241, Modicon M251, Modicon M221, Modicon M262

    Ambient Air Temperature For Storage : -25-70 °C

    Weight : 0.1 kg
