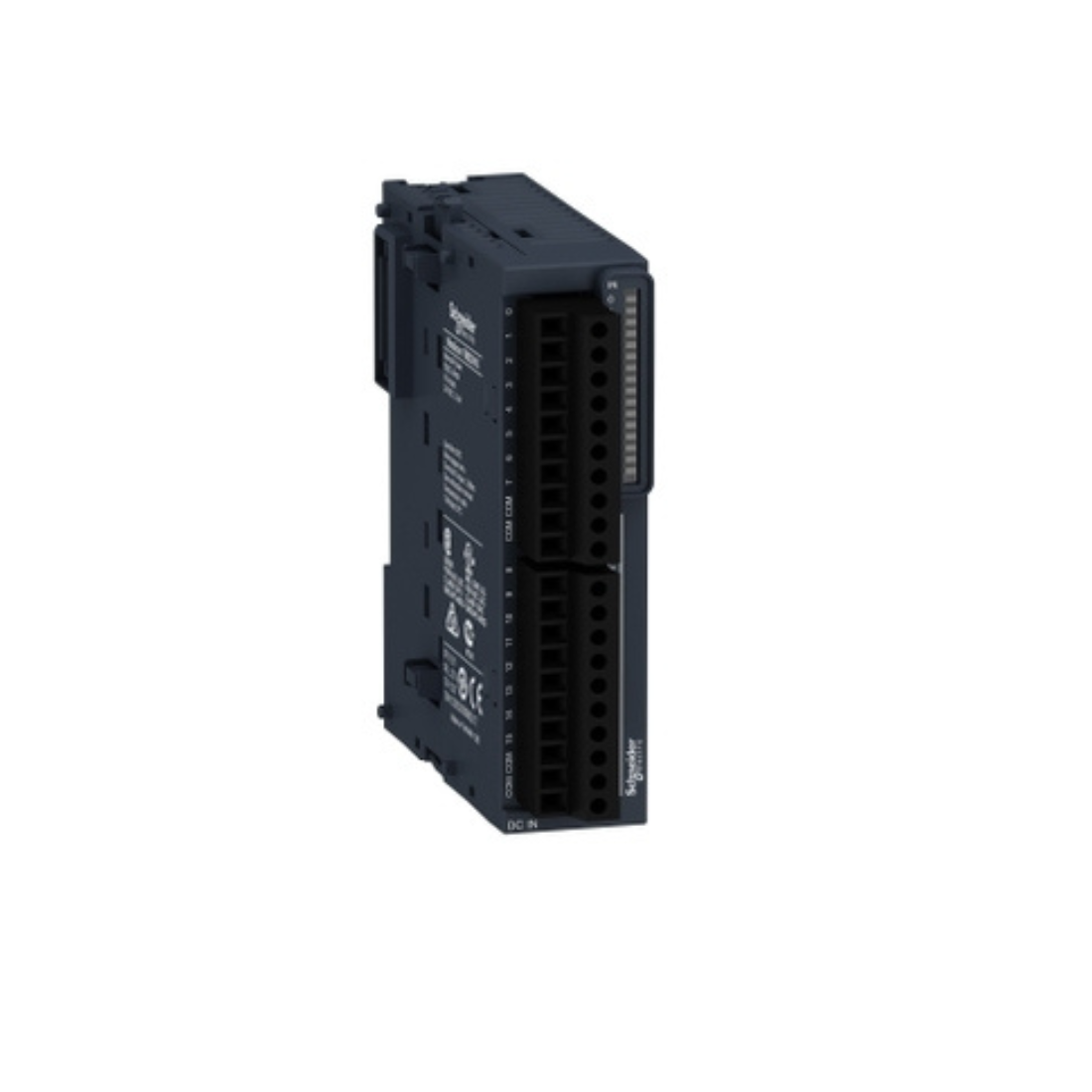

Schneider Electric Modicon TM3 Discrete Input Module 16 Inputs Screw 24V DC TM3DI16

Name: Schneider Electric Modicon TM3 Discrete Input Module 16 Inputs Screw 24V DC TM3DI16
Brand: Schneider Electric
Price: 423.15 AED
Availability: InStock

AED 423.15

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Discrete Input Module

Description

Schneider Electric TM3DI16 Discrete Input Module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers. It consists of 16 logic inputs and is powered by 24V DC. It is equipped with a removable screw terminal block and can be mounted on a 35mm symmetrical DIN rail. This digital I/O module complements the integrated I/O of the Modicon M221, M221 Book, M241, and M251 logic controllers. There is isolation between output and supply at 1500 VAC and output and internal logic at 500 VAC.

The discrete input module has a removable spring terminal for electrical connection with a 3.81 mm pitch for the inputs. It has an IP20 certification. Its dimensions are 23.6 mm (width) x 70 mm (depth) x 90 mm (height) and has CE certification. Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers. Supports DIN rail type TH35-15, DIN rail type TH35-7.5 according to IEC 60715 and plate or panel mounting with mounting kit.

Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase your controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, and M251 logic controllers.

Features

It consists of 16 logic inputs and is powered by 24V DC.
Equipped with a removable screw terminal block and can be mounted on a 35mm symmetrical DIN rail.
IP20 protection
It has a removable spring terminal for electrical connection with a 3.81 mm pitch for the inputs.

Specifications

Brand : Schneider Electric

Item Name : Discrete Input Module

Model : TM3DI16

Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

Current Consumption : 40 mA at 5 V DC via bus connector (at state on), 5 mA at 5 V DC via bus connector (at state off), 0 mA at 24 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off)

Depth : 84.6 mm

Height : 90 mm

IP Degree Of Protection : IP20 with protective cover in place

Marking : CE

Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit

Operating Altitude : 0...2000 m

Pollution Degree : 2

Certifications : CE, cULus, UKCA, RCM, EAC

Range Of Product : Modicon TM3

Relative Humidity : 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage)

Shock Resistance : 15 gn for 11 ms

Width : 27.4 mm

Discrete Input Current : 7 mA for input

Current State 1 Guaranteed : >= 2.5 mA (input)

Voltage State 1 Guaranteed : 15...28.8 V for input

Discrete Input Voltage : 24V

Voltage State 0 Guaranteed : 0...5 V for input

Current State 0 Guaranteed : <= 1 mA (input)

Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

Surge Withstand : 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC

Resistance To Fast Transients : 1 kV for I/O conforming to EN/IEC 61000-4-4

Electromagnetic Emission : Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

Discrete Input Number : 16 for input conforming to IEC 61131-2 type 3

Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Maximum Cable Distance Between devices : Unshielded cable: <30 m for relay output

Discrete Input Logic : Sink or source (positive/negative)

Discrete I/O Number : 16

Discrete Input Voltage Type : DC

Resistance to Magnetic Fields : 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8

Minimum Load : 10 mA at 5 V DC for relay output

Vibration Resistance : 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on panel

Ambient Air Temperature For Operation : -10-35 °C vertical installation, -10-55 °C horizontal installation

Standards : EN/IEC 61131-2, EN/IEC 61010-2-201

Local Signalling : 1 LED per channel (green) for input status

Electrical Connection : 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs

Input Impedance : 3.4 kOhm

Storage Altitude : 0-3000 m

Insulation : Between input and internal logic at 500 V AC, non-insulated between inputs

Range Compatibility : Modicon M241, Modicon M251, Modicon M221, Modicon M262

Ambient Air Temperature For Storage : -25-70 °C

Weight : 0.1 kg
