Schneider Electric Modicon TM3 Discrete I/O Module 24 I/O Relays Spring TM3DM24RG
Schneider Electric Modicon TM3 Discrete I/O Module 24 I/O Relays Spring TM3DM24RG

Schneider Electric Modicon TM3 Discrete I/O Module 24 I/O Relays Spring TM3DM24RG

Regular price AED 615.30
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Discrete Input/Output Module
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

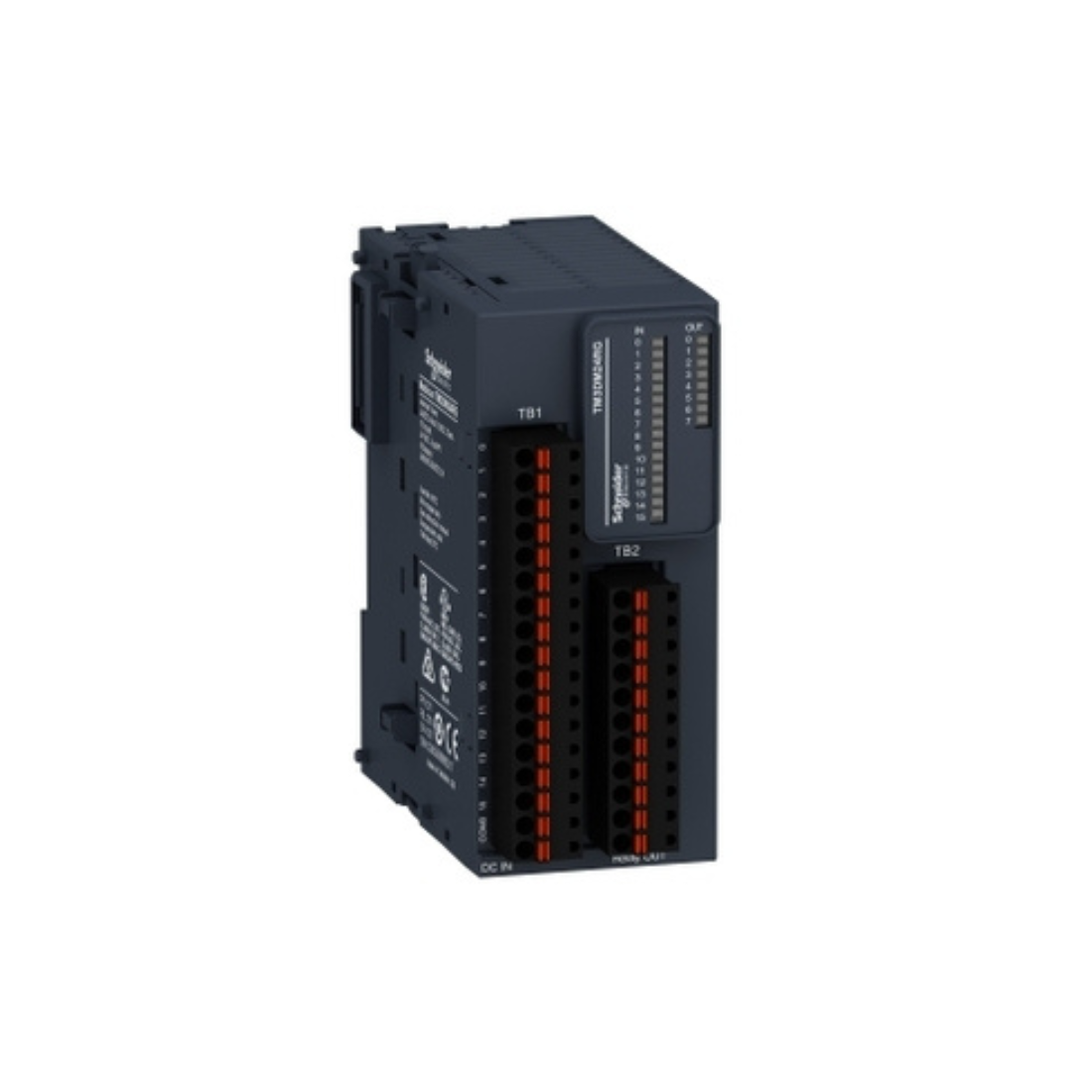

    Schneider Electric TM3DM24RG Discrete Input Or Output Module is part of the Modicon TM3 range, a range of I/O expansion modules for the Modicon M221, M241, M251, and M262. The discrete I/O module provides 16 input channels and 8 relay output channels with discrete source or sink (positive/negative) logic. It is an I/O module with a relay output voltage of 24 V DC, 240 V AC, current consumption of 65 mA, and 5 mA at 5 V DC via a bus connector. It is capable of controlling variable speed drives or any device equipped with a current or voltage input.

    There is isolation between input/output and internal logic at 500 VAC, input and output groups at 1500 VAC, open contact at 750 VAC, and intermediate non-isolated inputs/outputs. Schneider Electric TM3DM24RG Modicon TM3 Discrete Input Or Output Module features a removable spring terminal for electrical connection with 3.81mm pitch adjustment for inputs and outputs. It has an IP20 certification. It is CE, CULus, and C-Tick certified. Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controllers.

    Supports DIN rail type TH35-15, DIN rail type TH35-7.5 according to IEC 60715 and plate or panel mounting with mounting kit. Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase the controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, and M251 logic controllers.

    Features
    • Provides 16 input channels and 8 relay output channels with discrete source or sink logic.
    • It is an I/O module with a relay output voltage of 24 V DC, 240 V AC, current consumption of 65 mA, and 5 mA at 5 V DC via a bus connector.
    • IP20 protection
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Discrete I/O Module

    Model : TM3DM24RG

    Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

    Current Consumption : 5 mA at 5 V DC via bus connector (at state off), 0 mA at 24 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off), 65 mA at 5 V DC via bus connector (at state on)

    Depth : 84.6 mm

    Height : 90 mm

    IP Degree Of Protection : IP20 with protective cover in place

    Marking : CE

    Mechanical Durability : 20000000 cycles

    Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit

    Operating Altitude : 0...2000 m

    Pollution Degree : 2

    Certifications : C-Tick, cULus

    Range Of Product : Modicon TM3

    Relative Humidity : 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage)

    Shock Resistance : 15 gn for 11 ms

    Width : 42.9 mm

    Discrete Output Current : 2000 mA for relay output

    Discrete Input Current : 7 mA for input

    Current State 1 Guaranteed : >= 2.5 mA (input)

    Voltage State 1 Guaranteed : 15...28.8 V for input

    Discrete Input Voltage : 24 V

    Voltage State 0 Guaranteed : 0...5 V for input

    Current State 0 Guaranteed : <= 1 mA (input)

    Discrete Input Number : 16 for input conforming to IEC 61131-2 Type 1

    Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

    Surge Withstand : 2 kV output common mode conforming to EN/IEC 61000-4-5, 1 kV input common mode conforming to EN/IEC 61000-4-5

    Resistance To Fast Transients : 1 kV for I/O conforming to EN/IEC 61000-4-4, 2 kV for relay output conforming to EN/IEC 61000-4-4

    Electromagnetic Emission : Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

    Discrete Output Type : Relay normally open

    Discrete Output Number : 8

    Discrete Input Logic : Sink or Source (positive/negative)

    Discrete Input Voltage Type : DC

    Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

    Maximum Cable Distance Between Devices : Unshielded cable : <30 m for relay output

    Discrete Output Logic : Positive or negative

    Discrete I/O Number : 24

    Discrete Output Voltage : 24 V DC for relay output, 240 V AC for relay output

    Resistance to Magnetic Fields : 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8

    Minimum Load : 10 mA at 5 V DC for relay output

    Vibration Resistance : 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on panel

    Ambient Air Temperature For Operation : -10-35 °C vertical installation, -10-55 °C horizontal installation

    Standards : EN/IEC 61131-2, EN/IEC 61010-2-201

    Local Signalling : 1 LED per channel (green) for I/O state

    Electrical Connection : 17 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs, 11 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for outputs

    Input Impedance : 3.4 kOhm

    Storage Altitude : 0-3000 m

    Insulation : Between input and internal logic at 500 V AC, non-insulated between inputs, between input groups and output groups at 1500 V AC, between open contact at 750 V AC, between output and internal logic at 500 V AC, non-insulated between outputs

    Range Compatibility : Modicon M241, Modicon M251, Modicon M221, Modicon M262

    Ambient Air Temperature For Storage : -25-70 °C
