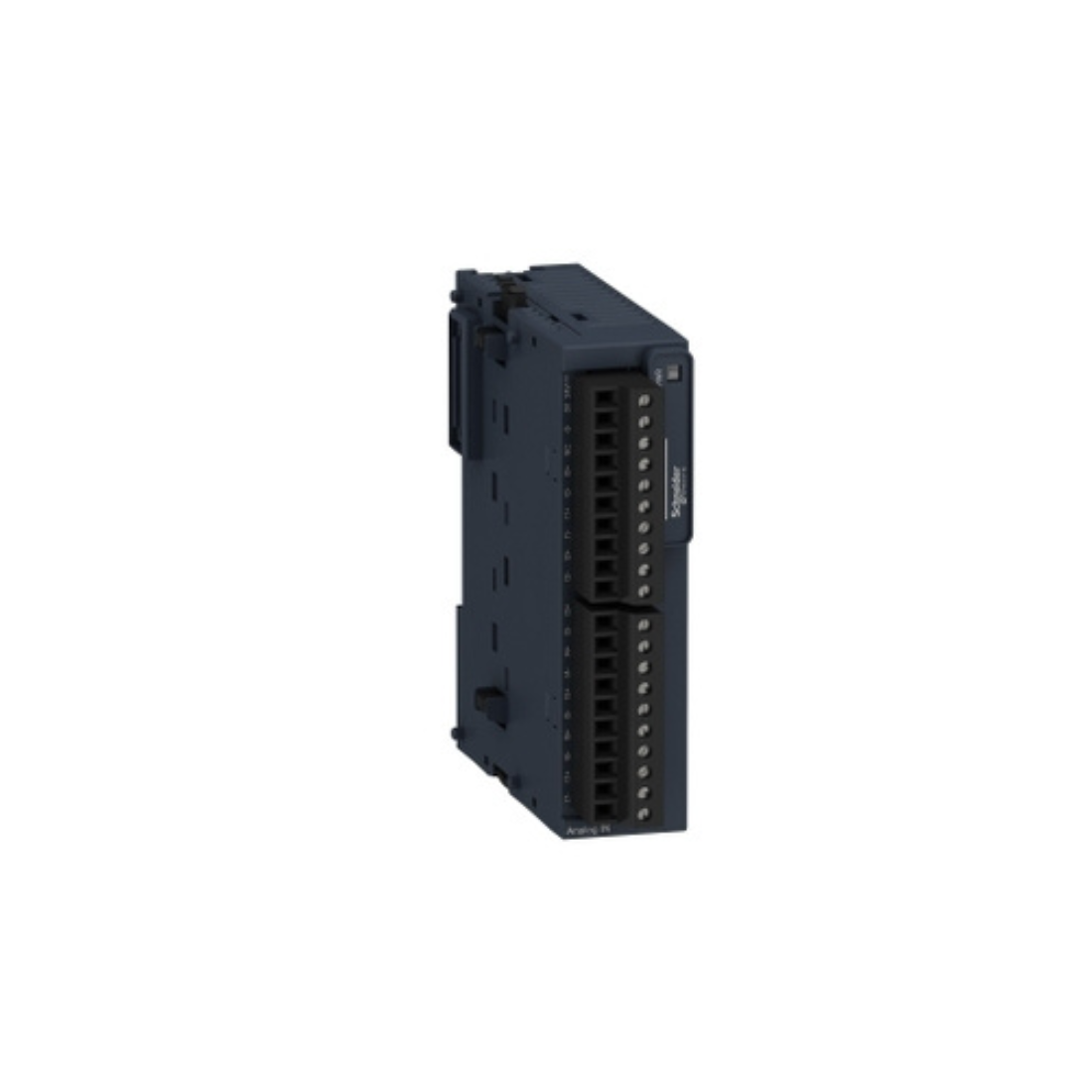

Schneider Electric Modicon TM3 Analog Input Module 8 Inputs Screw 24V DC TM3AI8
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Analog Input Module
Description
Schneider Electric TM3AI8 Analog Input Module is part of the Modicon TM3 range, a range of I/O expansion modules for the Modicon M221, M241, M251, and M262. The analog input module provides 8 inputs with 11-bit + sign and 12-bit resolution. This is an input module with a nominal supply voltage of 24 V DC and a current consumption of 35 mA at 5 V DC via bus connector without load, 45 mA at 5 V DC via bus connector at full load, 30 mA at 24 V DC via external supply.Â
Analog Input Module is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is isolation between input and power at 1500 V AC, input and internal logic at 500 V AC. Features a removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supplies. It has an IP20 certification. It has CE certification. Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers.
Supports DIN rail type TH35-15, DIN rail type TH35-7.5 according to IEC 60715, and plate or panel mounting with mounting kit. Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase your controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, and M251 logic controllers.
Features
- The analog input module provides 8 inputs with 11-bit + sign and 12-bit resolution.
- It features a removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supplies.
- IP20 protectionÂ
- It has a simple interlocking mounting mechanism.
| Brand | Schneider Electric |
| Item Name | Analog Input Module |
| Model | TM3AI8 |
| Resistance To Electrostatic Discharge | 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2 |
| Rated Supply Voltage | 24 V DC |
| Current Consumption | 40 mA at 5 V DC via bus connector full load, 35 mA at 5 V DC via bus connector no load, 30 mA at 24 V DC via external supply no load, 40 mA at 24 V DC via external supply full load |
| Depth | 70 mm |
| Height | 90 mm |
| IP Degree Of Protection | IP20 |
| Marking | CE |
| Mounting Support | Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit |
| Operating Altitude | 0...2000 m |
| Pollution Degree | 2 |
| Range Of Product | Modicon TM3 |
| Relative Humidity | 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage) |
| Shock Resistance | 15 gn for 11 ms |
| Supply Voltage Limits | 20.4-28.8 V |
| Width | 23.6 mm |
| Immunity To Microbreaks | 10 ms |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| Surge Withstand | 1 kV power supply common mode conforming to EN/IEC 61000-4-5, 0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5, 1 kV output common mode conforming to EN/IEC 61000-4-5 |
| Resistance To Fast Transients | 1 kV (I/O) conforming to EN/IEC 61000-4-4 |
| Electromagnetic Emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011 |
| Temperature Drift | +/- 0.01 %FS/°C |
| Analogue Input Resolution | 12 bits, 11 bits + sign |
| Repeat Accuracy | +/- 0.4 %FS |
| LSB Value | 2.44 mV 0...10 Vvoltage, 4.88 mV - 10...10 Vvoltage, 4.88 µA 0...20 mAcurrent, 3.91 µA 4...20 mAcurrent |
| Conversion Time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Analogue Input Number | 8 |
| Analogue Input Type | Current: 4...20 mA, current: 0...20 mA, voltage: 0...10 V, voltage: - 10...10 V |
| Non-Linearity | +/- 0.2 %FS |
| Absolute Accuracy Error | +/- 1 % of full scale, +/- 0.2 % of full scale at 25 °C |
| Resistance To Conducted Disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Cross Talk | <= 1 LSB |
| Resistance to Magnetic Fields | 30 A/m conforming to EN/IEC 61000-4-8 |
| Sampling Duration | 1 ms |
| Load Impedance Ohmic | 1 kOhm voltage, 300 Ohm current |
| Permissible Continuous Overload | 13 V, analogue input type: voltage, 40 mA, analogue input type: current |
| Vibration Resistance | 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail |
| Ambient Air Temperature For Operation | -10-55 °C horizontal installation, -10-35 °C vertical installation |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Local Signalling | 1 LED (green) for PWR |
| Electrical Connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply, 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| Storage Altitude | 0-3000 m |
| Input Impedance | <= 50 Ohm current, >= 1 MOhm voltage |
| Insulation | Between output and supply at 1500 V AC, between output and internal logic at 500 V AC |
| Type of Cable | Twisted shielded pairs cable <30 m for output circuit |
| Range Compatibility | Modicon M221, Modicon M241, Modicon M251, Modicon M262 |
| Ambient Air Temperature For Storage | -25-70 °C |
| Weight | 0.11 kg |
