Brand : Schneider Electric

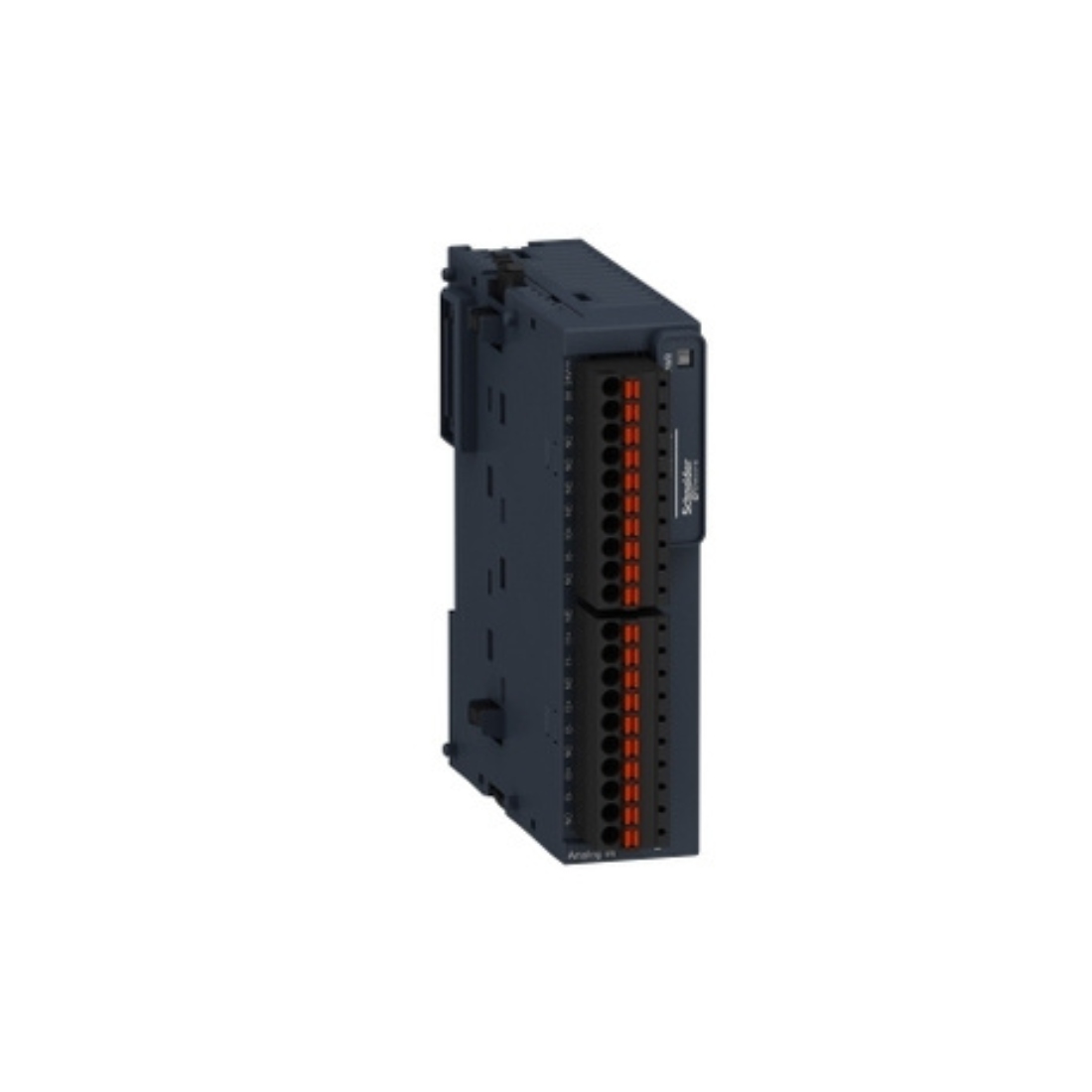

Item Name : Analog Input Module

Model : TM3TI4G

Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

Rated Supply Voltage : 24 V DC

Current Consumption : 45 mA at 5 V DC via bus connector, 50 mA at 5 V DC via bus connector, 35 mA at 24 V DC via external supply, 40 mA at 24 V DC via external supply

Depth : 70 mm

Height : 90 mm

IP Degree Of Protection : IP20

Marking : CE

Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit

Operating Altitude : 0...2000 m

Pollution Degree : 2

Range Of Product : Modicon TM3

Relative Humidity : 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage)

Shock Resistance : 15 gn for 11 ms

Supply Voltage Limits : 20.4-28.8 V

Width : 23.6 mm

Immunity To Microbreaks : 10 ms

Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

Surge Withstand : 1 kV power supply common mode conforming to EN/IEC 61000-4-5, 0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5, 1 kV input common mode conforming to EN/IEC 61000-4-5

Resistance To Fast Transients : 1 kV (I/O) conforming to EN/IEC 61000-4-4

Electromagnetic Emission : Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

Temperature Drift : +/- 0.01 %FS/°C

Analogue Input Resolution : 16 bits, 15 bits + sign

Analogue Input Number : 4

Analogue Input Type : Current 4...20 mA, current 0...20 mA, voltage 0...10 V, voltage - 10...10 V, thermocouple - 200...1000 °C with thermocouple J, thermocouple - 200...1300 °C with thermocouple K, thermocouple 0...1760 °C with thermocouple R, thermocouple 0...1760 °C with thermocouple S, thermocouple 0...1820 °C with thermocouple B, thermocouple - 200...400 °C with thermocouple T, thermocouple - 200...1300 °C with thermocouple N, thermocouple - 200...800 °C with thermocouple E, thermocouple 0...2315 °C with thermocouple C, Pt 100 temperature probe - 200...850 °C, Pt 1000 temperature probe - 200...600 °C

Analogue Output Resolution : 16 bits, 15 bits + sign

Repeat Accuracy : +/-0.5 %FS

LSB Value : 2.44 mV 0...10 Vvoltage, 4.88 mV - 10...10 Vvoltage, 4.88 µA 0...20 mAcurrent, 3.91 µA 4...20 mAcurrent, 0.1 °Ctemperature probe, 0.1 °Cthermocouple

Conversion Time : 100 ms + 100 ms per channel + 1 controller cycle time for analogue input thermocouple, 100 ms + 100 ms per channel + 1 controller cycle time for analogue input temperature probe, 10 ms + 10 ms per channel + 1 controller cycle time for analogue input voltage/current

Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Analogue Output Type : Current: 4...20 mA, current: 0...20 mA, voltage: 0...10 V, voltage: - 10...10 V

Non-Linearity : +/- 0.2 %FS

Absolute Accuracy Error : +/- 0.2 % of full scale at 25 °C for analogue input voltage/current, +/- 0.2 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe, +/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C, +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C, +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C, +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C, +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C, +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C, +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C, +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C, +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C, +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C

Cross Talk : <= 1 LSB

Resistance to Magnetic Fields : 30 A/m conforming to EN/IEC 61000-4-8

Load Impedance Ohmic : 1 kOhm voltage, 300 Ohm current

Sampling Duration : 10 ms, analogue input type: voltage/current, 100 ms, analogue input type: voltage/current, 100 ms, analogue input type: thermocouple, 100 ms, analogue input type: temperature probe

Permissible Continuous Overload : 13 V, analogue input type: voltage, 40 mA, analogue input type: current

Vibration Resistance : 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail

Ambient Air Temperature For Operation : -10-55 °C horizontal installation, -10-35 °C vertical installation

Standards : EN/IEC 61131-2, EN/IEC 61010-2-201

Local Signalling : 1 LED (green) for PWR

Electrical Connection : 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply, 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs

Input Impedance : <= 50 Ohm current, >= 1 MOhm voltage, >= 1 MOhm thermocouple, >= 1 MOhm temperature probe

Storage Altitude : 0-3000 m

Insulation : Between input and supply at 1500 V AC, between input and internal logic at 500 V AC

Load Type : Resistive

Type of Cable : Twisted shielded pairs cable <30 m for input circuit

Range Compatibility : Modicon M221, Modicon M241, Modicon M251, Modicon M262

Ambient Air Temperature For Storage : -25-70 °C

Weight : 0.1 kg
