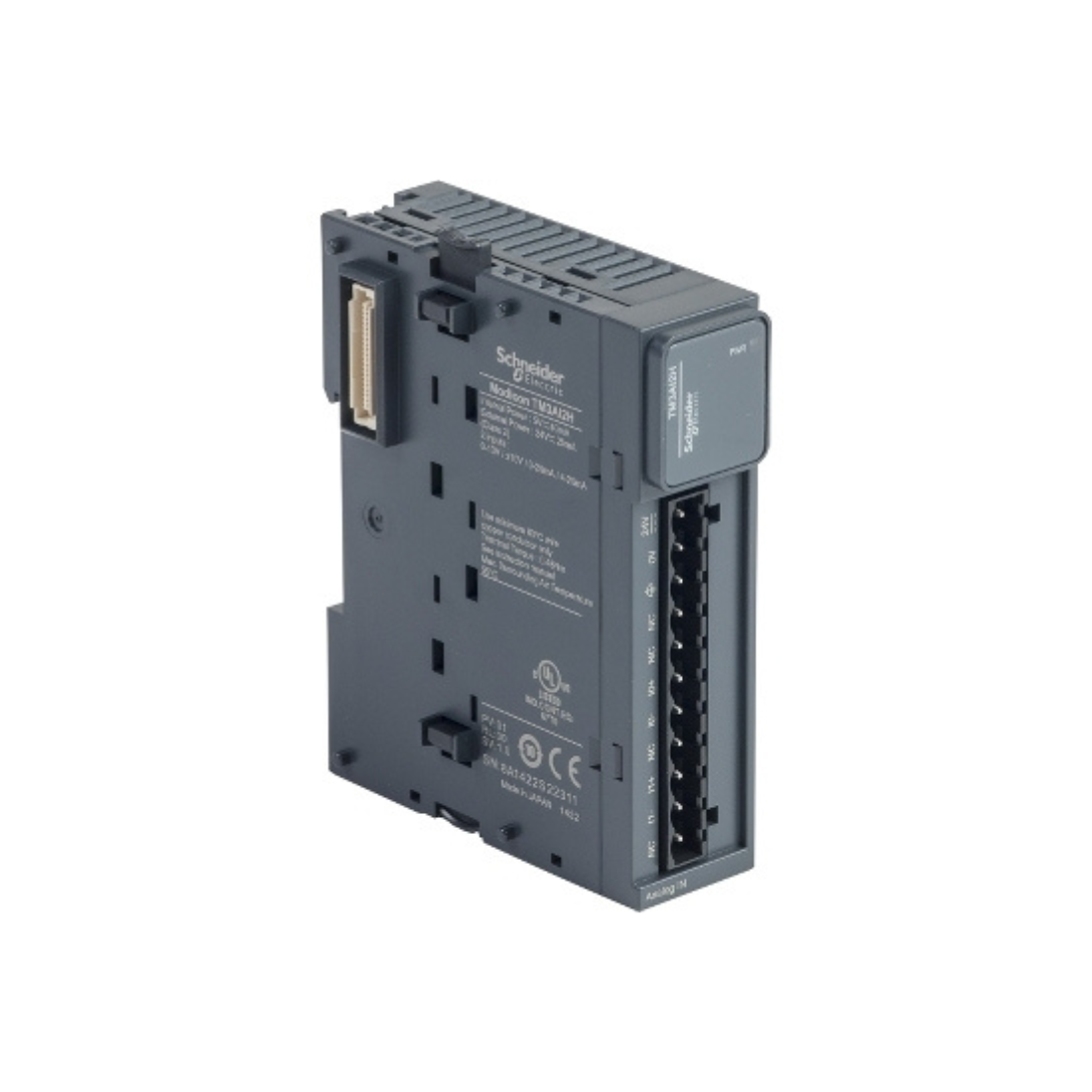

Schneider Electric Modicon TM3 Analog Input Module 2 Inputs High Resolution Module Screw 24V DC TM3AI2H

Name: Schneider Electric Modicon TM3 Analog Input Module 2 Inputs High Resolution Module Screw 24V DC TM3AI2H
Brand: Schneider Electric
Price: 711.9 AED
Availability: InStock

AED 711.90

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Analog Input Module

Description

Schneider Electric TM3AI2H 2 Analog Inputs High-Resolution Module is part of the Modicon TM3 range, a range of I/O expansion modules for the Modicon M221, M241, M251 and M262. The analog input module provides 2 inputs with 15-bit + sign and 16-bit resolution. This is an input module with a nominal supply voltage of 24 V DC and a current consumption of 30 mA at 5 V DC via bus connector at no load, 40 mA at 5 V DC via bus connector at full load, 25 mA at 24 V DC via external supply.

Analog Inputs High-Resolution Module is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is isolation between input and power at 1500 V AC, input and internal logic at 500 V AC. Features a removable screw terminal for electrical connection with 5.08mm pitch adjustment for inputs and supplies. It has an IP20 certification. Its dimensions are 23.6 mm (width) x 70 mm (depth) x 90 mm (height). It weighs 0.115 kg.

Schneider Electric TM3AI2H Modicon TM3 2 Analog Inputs High Resolution Module has CE certification. Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers. Supports DIN rail type TH35-15, DIN rail type TH35-7.5 according to IEC 60715, and plate or panel mounting with mounting kit.

Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase the controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, and M251 logic controllers.

Features

The analog input module provides 2 inputs with 15-bit + sign and 16-bit resolution.
It features a removable screw terminal for electrical connection with a 5.08mm pitch adjustment for inputs and supplies.
IP20 protection
It has a simple interlocking mounting mechanism.

Specifications

Brand : Schneider Electric

Item Name : Analog Inputs High Resolution Module

Model : TM3AI2H

Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

Rated Supply Voltage : 24 V DC

Current Consumption : 30 mA at 5 V DC via bus connector no load, 40 mA at 5 V DC via bus connector full load, 25 mA at 24 V DC via external supply

Depth : 70 mm

Height : 90 mm

IP Degree Of Protection : IP20

Marking : CE

Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit

Operating Altitude : 0...2000 m

Pollution Degree : 2

Range Of Product : Modicon TM3

Relative Humidity : 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage)

Shock Resistance : 15 gn for 11 ms

Supply Voltage Limits : 20.4-28.8 V

Width : 23.6 mm

Immunity To Microbreaks : 10 ms

Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

Surge Withstand : 1 kV power supply common mode conforming to EN/IEC 61000-4-5, 0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5, 1 kV input common mode conforming to EN/IEC 61000-4-5

Resistance To Fast Transients : 1 kV (I/O) conforming to EN/IEC 61000-4-4

Electromagnetic Emission : Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

Temperature Drift : +/- 0.006 %FS/°C

Analogue Input Resolution : 16 bits, 15 bits + sign

Repeat Accuracy : +/- 0.006 %FS/°C

LSB Value : 0.153 mV 0...10 Vvoltage, 0.305 mV - 10...10 Voltage, 0.305 µA 0...20 mAcurrent, 0.244 µA 4...20 mAcurrent

Conversion Time : 1 ms + 1 ms per channel + 1 controller cycle time

Analogue INput Number : 2

Analogue Input Type : Current 4...20 mA, current 0...20 mA, voltage 0...10 V, voltage - 10...10 V

Non-Linearity : +/- 0.01 %FS

Repeat Accuracy : +/-0.5 %FS

Absolute Accuracy Error : +/- 0.1 % of full scale at 25 °C, +/- 1 % of full scale

Cross Talk : <= 1 LSB

Resistance to Magnetic Fields : 30 A/m conforming to EN/IEC 61000-4-8

Sampling Duration : 1 ms

Permissible Continuous Overload : 13 V, analogue input type: voltage, 40 mA, analogue input type: current

Vibration Resistance : 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail

Ambient Air Temperature For Operation : -10-55 °C horizontal installation, -10-35 °C vertical installation

Standards : EN/IEC 61131-2, EN/IEC 61010-2-201

Local Signalling : 1 LED (green) for PWR

Electrical Connection : 11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for outputs and supply

Input Impedance : <= 50 Ohm current, >= 1 MOhm voltage

Storage Altitude : 0-3000 m

Insulation : Between input and supply at 1500 V AC, between input and internal logic at 500 V AC

Type of Cable : Twisted shielded pairs cable <30 m for input circuit

Range Compatibility : Modicon M221, Modicon M241, Modicon M251, Modicon M262

Ambient Air Temperature For Storage : -25-70 °C

Weight : 0.115 kg
