Schneider Electric Modicon TM3 4 Analog Outputs Module 4 Outputs Screw 24V DC TM3AQ4

Name: Schneider Electric Modicon TM3 4 Analog Outputs Module 4 Outputs Screw 24V DC TM3AQ4
Brand: Schneider Electric
Price: 858.9 AED
Availability: InStock

AED 858.90

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Analog Output Module

Description

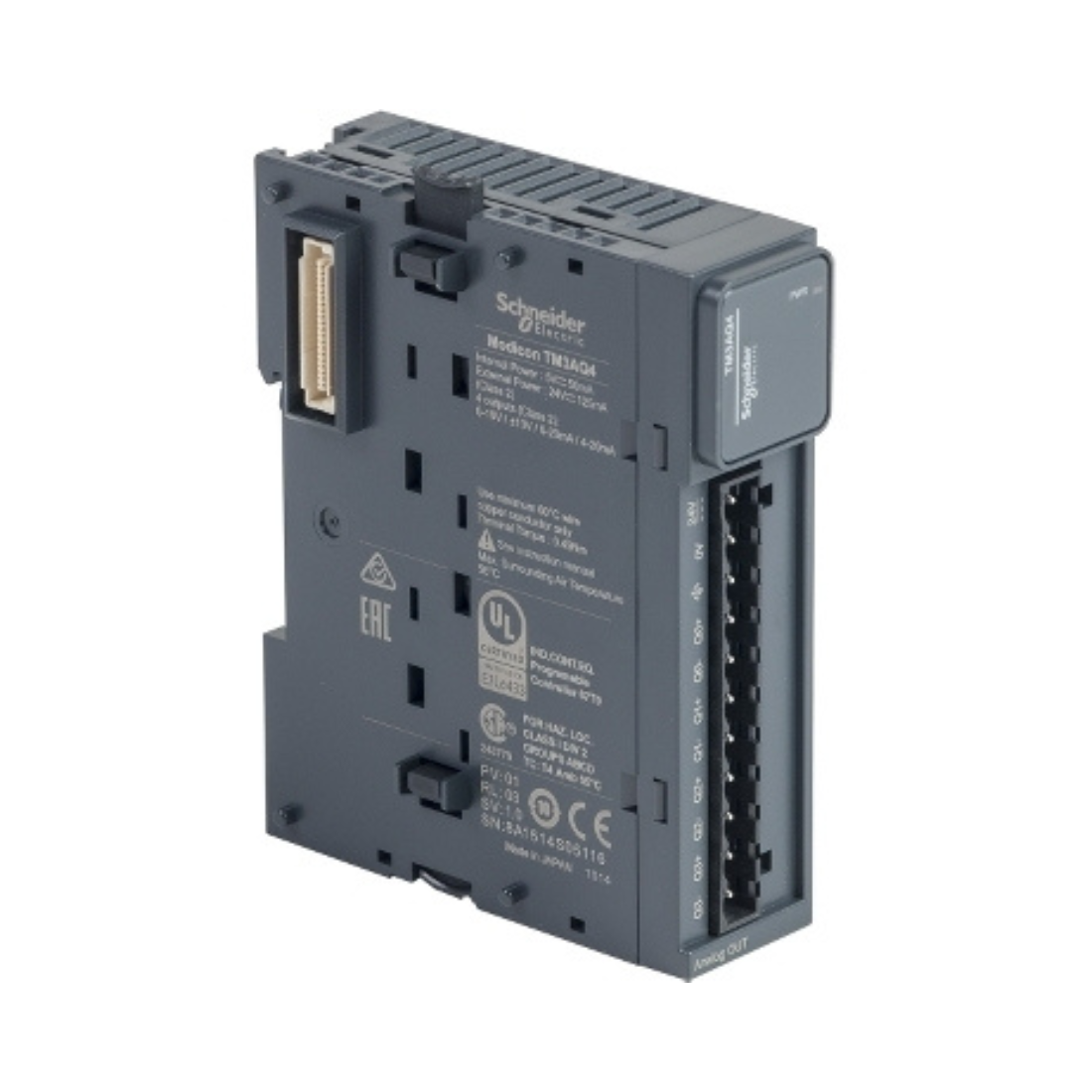

Schneider Electric TM3AQ4 4 Analog Outputs Module is part of the Modicon TM3 range, a range of I/O expansion modules for the Modicon M221, M241, M251 and M262. The analog output module provides 4 outputs with 11-bit + sign and 12-bit resolution. This is an output module with a nominal supply voltage of 24V DC and a current consumption of 125mA at 24V DC using external power at full load. It can control variable speed drives or any device equipped with a current or voltage input. There is isolation between output and supply at 1500 VAC and output and internal logic at 500 VAC.

Schneider Electric TM3AQ4 Modicon TM3 4 Analog Outputs Module features a removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs and supplies. It has an IP20 certification. It has CE certification. Complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers. Supports DIN rail type TH35-15, DIN rail type TH35-7.5 according to IEC 60715, and plate or panel mounting with mounting kit.

Modicon TM3 expansion modules are designed with a simple interlocking mounting mechanism. When assembling Modicon TM3 modules with logic controllers, a bus expansion connector is used for data distribution and power supply. Increase your controller performance with the Modicon TM3 I/O system, designed specifically for Modicon M221, M241, and M251 logic controllers.

Features

Features a removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs and supplies.
Supply voltage of 24V DC
IP20 protection

Specifications

Brand : Schneider Electric

Item Name : Analog Output Module

Model : TM3AQ4

Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

Rated Supply Voltage : 24 V DC

Current Consumption : 40 mA at 5 V DC via bus connector no load, 50 mA at 5 V DC via bus connector full load, 50 mA at 24 V DC via external supply no load, 125 mA at 24 V DC via external supply full load

Depth : 70 mm

Height : 90 mm

IP Degree Of Protection : IP20

Marking : CE

Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit

Operating Altitude : 0...2000 m

Pollution Degree : 2

Range Of Product : Modicon TM3

Relative Humidity : 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage)

Shock Resistance : 15 gn for 11 ms

Supply Voltage Limits : 20.4-28.8 V

Width : 23.6 mm

Immunity To Microbreaks : 10 ms

Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

Surge Withstand : 1 kV power supply common mode conforming to EN/IEC 61000-4-5, 0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5, 1 kV output common mode conforming to EN/IEC 61000-4-5

Resistance to Fast Transients : 1 kV (I/O) conforming to EN/IEC 61000-4-4

Electromagnetic Emission : Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

Temperature Drift : +/- 0.01 %FS/°C

Analogue Input Resolution : 12 bits, 11 bits + sign

Repeat Accuracy : +/- 0.4 %FS

LSB Value : 2.44 mV 0...10 Vvoltage, 4.88 mV - 10...10 Vvoltage, 4.88 µA 0...20 mAcurrent, 3.91 µA 4...20 mAcurrent

Conversion Time : 1 ms + 1 ms per channel + 1 controller cycle time

Resistance to Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Analogue Output Type : Current: 4...20 mA, current: 0...20 mA, voltage: 0...10 V, voltage: - 10...10 V

Non-linearity : +/- 0.2 %FS

Absolute Accuracy Error : +/- 1 % of full scale, +/- 0.2 % of full scale at 25 °C

Analogue Output Resolution : 11 bits + sign, 12 bits

Stabilisation Time : 1 ms

Output Ripple : 20 mV

Cross Talk : <= 1 LSB

Resistance to Magnetic Fields : 30 A/m conforming to EN/IEC 61000-4-8

Load Impedance Ohmic : 1 kOhm voltage, 300 Ohm current

Vibration Resistance : 3.5 mm at 5-8.4 Hz on DIN rail, 3 gn at 8.4-150 Hz on DIN rail

Local Signalling : 1 LED (green) for PWR

Ambient Air Temperature For Operation : -10-55 °C horizontal installation, -10-35 °C vertical installation

Standards : EN/IEC 61010-2-201, EN/IEC 61131-2

Electrical Connection : 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs and supply

Storage Altitude : 0-3000 m

Insulation : Between output and supply at 1500 V AC, between output and internal logic at 500 V AC

Load Type : Resistive

Type of Cable : Twisted shielded pairs cable <30 m for output circuit

Ambient Air Temperature For Storage : -25-70 °C

Range Compatibility : Modicon M221, Modicon M241, Modicon M251, Modicon M262

Weight : 0.115 kg
