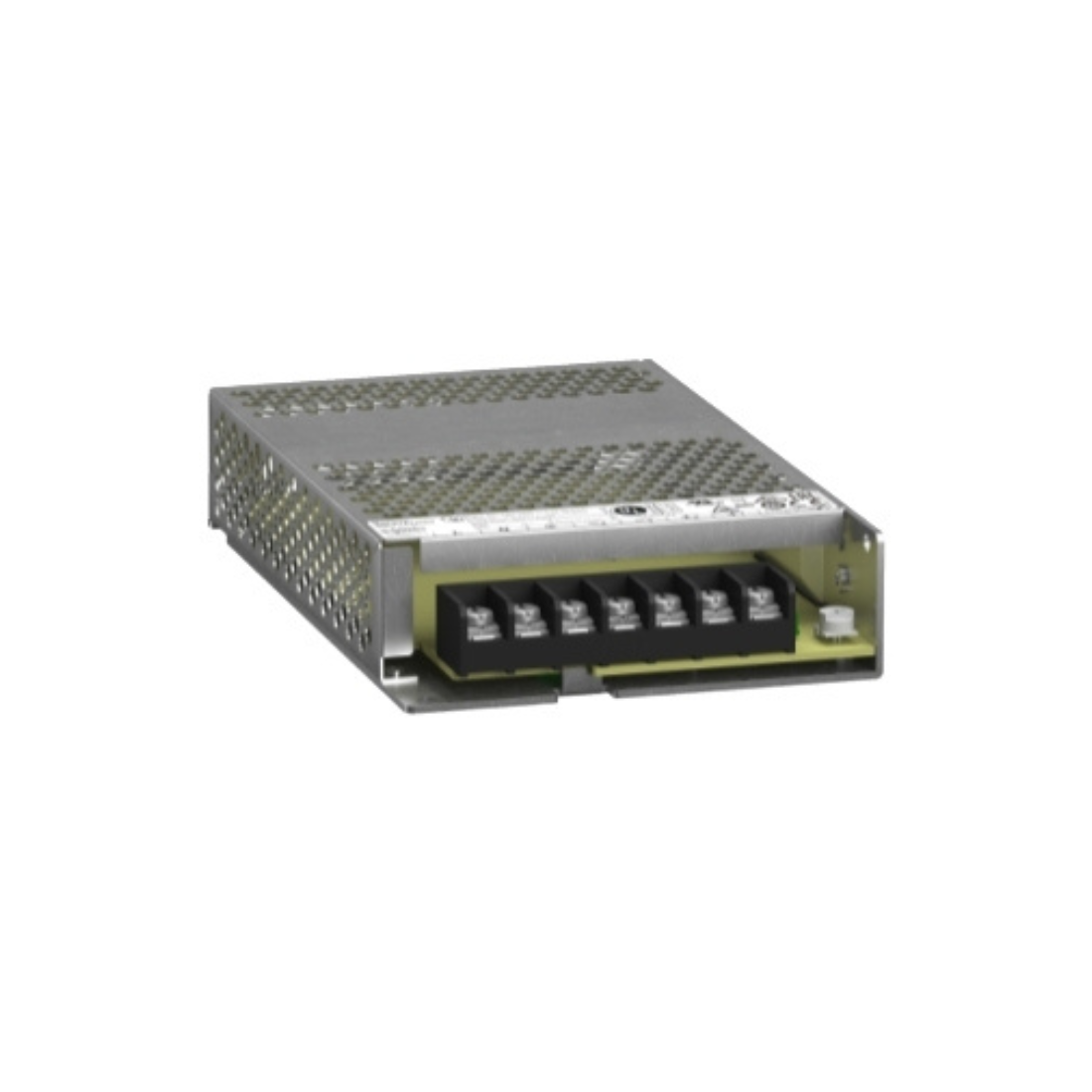

Schneider Electric Modicon Power Supply Regulated Power Supply 100-240V AC 24V 6.2A Single Phase Panel Mount ABLP1A24062
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Regulated Power Supply
Description
Schneider Electric ABLP1A24062 Regulated Power Supply provides DC voltage. It features a rated input of 100 V to 120 V AC or 200 to 240 V AC, a rated output current of 6.2 A at 24 V DC, and a power rating of 150 W. It is ideal for supplying the DC voltage necessary for automation equipment designed for applications in industrial, commercial, and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas, and water. Provides overload and short circuit protection with automatic reset after the source of the overload/short circuit is resolved.
There is an LED diagnostic screen on the front for immediate troubleshooting. Its width is 159 mm, its height is 30 mm and its depth is 97 mm. It weighs 0.360 kg. It is CB Scheme certified, cULus listed, cURus, RCM, and EAC recognized. Schneider Electric ABLP1A24062 Regulated Power Supply is a commercial power supply, panel mount; It is compatible with the ABLPA01 mounting plate. Installation is carried out on the side of the plate or on the base with fixation of the mounting plate by screw.
ABLP power supplies power the automated systems. ABLP power supplies are designed for simple, repetitive machines. Specialty power supplies are especially competitive in terms of quality and price due to their simplicity and compactness. The main applications for using the Modicon ABLP power supply are elevators, scoreboards, escalators, car washes, food ovens, etc.
Features
- It has a rated input of 100 V to 120 V AC or 200 to 240 V AC, a rated output current of 6.2 A at 24 V DC, and a power rating of 150 W.
- Used in industrial applications, commercial and residential such as conveying, packaging, control, food & beverage, mining, oil & gas, and water.
- Compatible with the ABLPA01 mounting plate.
| Brand | Schneider Electric |
| Item Name | Regulated Power Supply |
| Model | ABLP1A24062 |
| Connections - Terminals | Screw connection: 0.75...2.5 mm², (AWG 18...AWG 14) without wire end ferrule, screw connection: 0.75...1.5 mm², (AWG 18...AWG 16) with wire end ferrule |
| Current Consumption | < 3.2 A 115 V AC, < 1.9 A 230 V AC |
| Depth | 159 mm |
| Dielectric Strength | 3750 V AC with input to output |
| Efficiency | 88.8 % at 230 V AC |
| Height | 30 mm |
| Holding Time | > 20 ms 115 V AC, > 40 ms 230 V AC |
| Input Protection Type | Integrated fuse (not interchangeable) 4 A |
| Input Voltage | 100...120 V AC single phase, 200...240 V AC single phase |
| Input Voltage Limits | 90...132 V AC, 170...264 V AC |
| Inrush Current | 35 A at 115 V, 70 A at 230 V |
| IP Degree Of Protection | IP10 |
| Line And Load Regulation | < 0.5 % network 0 to 100 % load at 25 °C, < 1 % network full voltage range in line at 25 °C |
| Range Of Product | Modicon Power Supply |
| MTBF | 700000 h at 25 °C, full load conforming to SR 332 |
| Mounting Support | Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, double-profile DIN rail, panel mounting |
| Operating Altitude | 5000 m |
| Output Coupling | Parallel, Serial |
| Output Voltage | 24 V DC |
| Output Voltage Limits | 24 V DC |
| Pollution Degree | 2 |
| Power Dissipation in W | 29 W |
| Power Supply Output Current | 6.25 A |
| Power Supply Type | Regulated switch mode |
| Certifications | CE, cULus, EAC, RCM, CB Scheme, KC |
| Rated Power in W | 150 W |
| Service Life | 10 year(s) |
| Shock Resistance | 100 m/s² for 11 ms |
| Width | 97 mm |
| Supply | SELV conforming to EN/IEC 60950-1, SELV conforming to EN/IEC 60204-1, SELV conforming to IEC 60364-4-41 |
| Enclosure Material | Aluminium |
| Electromagnetic Emission | Conducted emissions conforming to EN 61000-6-3, radiated emissions conforming to EN 61000-6-4 |
| Maximum Leakage Current | 1 mA 240 V AC |
| Residual Ripple | < 170 mV |
| Network Frequency Limits | 50-60 Hz |
| Variant Option | Panel Mount |
| Load Capacitance | 7000 µF |
| Power Factor | 0.55 at 115 V AC, 0.45 at 230 V AC |
| Vibration Resistance | 3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6, 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6 |
| Output Protection Type | Against overload and short-circuits, protection technology: automatic reset, against over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset |
| Status LED | 1 LED (green) output voltage |
| Electric Compatibility | Immunity to electrostatic discharge - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2, immunity to electrostatic discharge - test level: 9 kV (air discharge) conforming to EN/IEC 61000-4-2, immunity to conducted RF disturbances - test level: 10 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3, immunity to conducted RF disturbances - test level: 3 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4, surge immunity test - test level: 3 kV (between power supply and earth) conforming to EN/IEC 61000-4-5, surge immunity test - test level: 1.5 kV (between phases) conforming to EN/IEC 61000-4-5, immunity to conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8, immunity to voltage dips conforming to EN/IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to EN 61000-3-2, conducted disturbance emission conforming to EN 55016-1-2, conducted disturbance emission conforming to EN 55016-2-1 |
| Ambient Air Temperature For Operation | -30--25 °C with current derating of 4 % per °C mounting position B, G < 2000 m, -25-50 °C without derating mounting position B, G < 2000 m, 50-70 °C with current derating of 2 % per °C mounting position B, G < 2000 m |
| Standards | EN 62368-1, EN/IEC 61010-1, EN 61010-2-201, EN/IEC 61204-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, UL 62368-1, UL 61010-1, UL 61010-2-201, CSA C22.2 No 62368-1, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201, IEC 60335-1, EN/IEC 62368-1 |
| Environmental Characteristic | 3M4 conforming to IEC 60721-3-3 |
| Electrical Shock Protection Class | Class I |
| Earthing System | TN, TT, IT |
| Weight | 0.36 kg |
