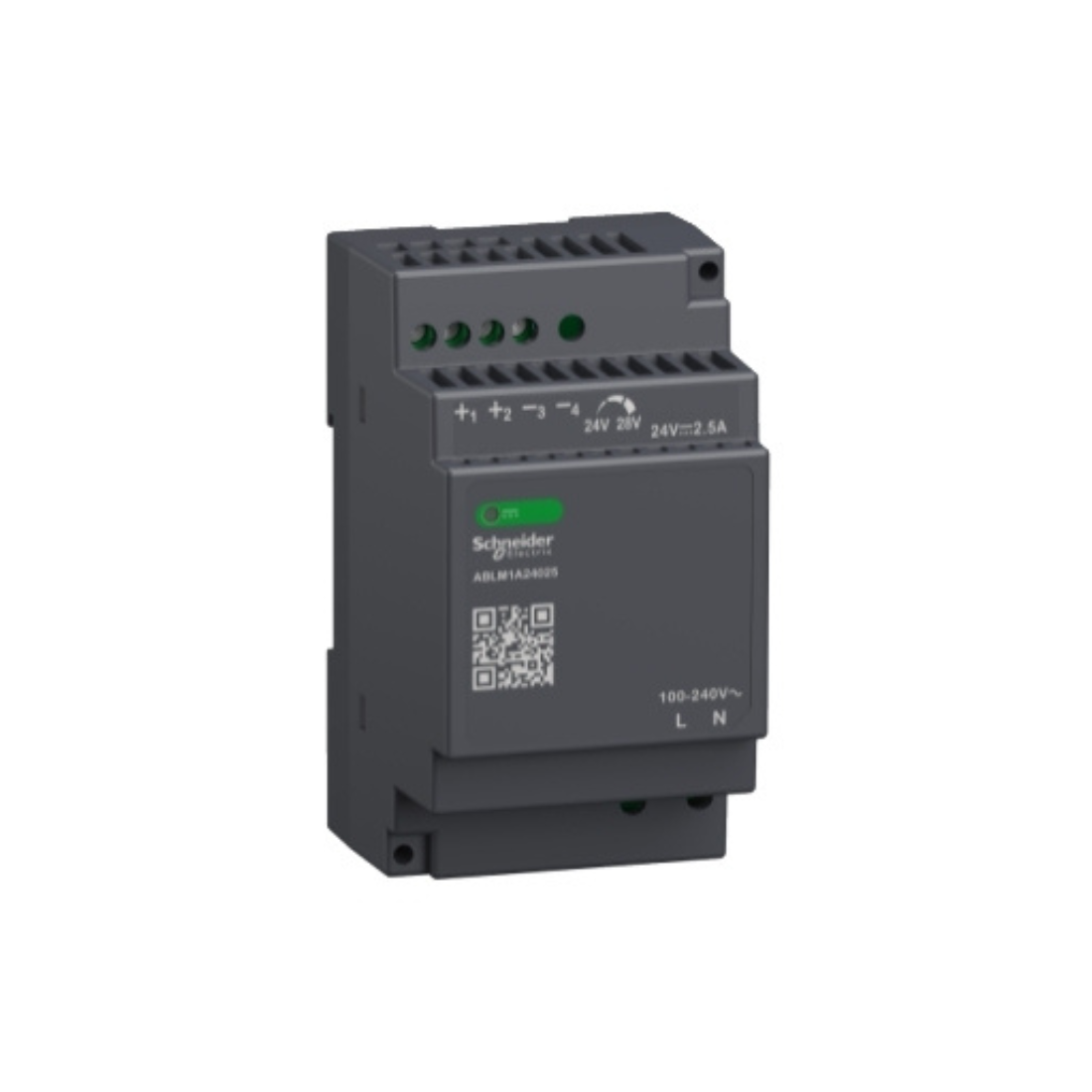

Schneider Electric Modicon Power Supply Regulated Power Supply 100-240V AC 24V 2.5A Single Phase Modular ABLM1A24025

Name: Schneider Electric Modicon Power Supply Regulated Power Supply 100-240V AC 24V 2.5A Single Phase Modular ABLM1A24025
Brand: Schneider Electric
Price: 428.4 AED
Availability: InStock

AED 428.40

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Regulated Power Supply

Description

Schneider Electric ABLM1A24025 Regulated Power Supply supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2,5A at 24V DC, and a rated power output of 60W. It is ideal for supplying the DC voltage necessary for automation equipment designed for applications in industrial, commercial, and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas, and water. It installs on an omega rail or fixed by a screw. Its width is 53mm, its height is 91mm, and its depth is 55,6mm.

Schneider Electric ABLM1A24025 Regulated Power Supply ensures protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.221kg. It is a power supply for industrial use and rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CB scheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommended for its protection.

The type of protection is 6A, C curve or 10A, B-curve. It has in the front face an LED indicating the presence of DC output voltage and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on the omega (DIN) rail. It brings energy to the automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Features

It has a rated input of 100V to 240V AC, a rated output current of 2,5A at 24V DC, and a rated power output of 60W.
The type of protection is 6A, C curve or 10A, B-curve.

Specifications

Brand : Schneider Electric

Item Name : Regulated Power Supply

Model : ABLM1A24025

Connections - Terminals : Screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) without wire end ferrule for output, screw connection: 0.5...1.5 mm², (AWG 20...AWG 16) with wire end ferrule for output, screw connection: 0.5...1.5 mm², (AWG 20...AWG 16) for input

Current Consumption : < 1.5 A 115 V AC, < 1 A 230 V AC

Depth : 55.6 mm

Dielectric Strength : 3000 V AC input/output

Efficiency : 90 % at 115 V AC, 90 % at 230 V AC

Height : 91 mm

Holding Time : > 20 ms 115 V AC, > 60 ms 230 V AC

Input Protection Type : Integrated fuse (not interchangeable) 3.15 A, external protection (recommended) 20 A Curve B, external protection (recommended) 20 A Curve C, external protection (recommended) 10 A Curve B, external protection (recommended) 6 A Curve C

Input Voltage : 100...240 V AC single phase, 100...240 V AC 2 phases

Input Voltage Limits : 90...264 V AC

Inrush Current : 30 A at 115 V, 60 A at 230 V

IP Degree Of Protection : IP20

Line And Load Regulation : < 0.5 % network in line, < 1 % network 0 to 100 % load

MTBF : 1300000 h at 25 °C, full load, 700000 h at 55 °C, 80 % load

Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, double-profile DIN rail, panel mounting

Operating Altitude : < 2000 m overvoltage category III, 2000 m...5000 m overvoltage category II

Output Coupling : Parallel, Serial

Output Voltage : 24 V DC

Output Voltage Limits : 24...28 V

Pollution Degree : 2

Power Dissipation in W : 6.5 W

Power Supply Output Current : 2.5 A

Power Supply Type : Regulated switch mode

Certifications : CE, cUL listed, cUL recognized, RCM, CB Scheme, EAC, KC, NEC: class 2

Rated Power in W : 60 W

Service Life : 10 year(s)

Shock Resistance : 100 m/s² for 11 ms

Width : 53 mm

Supply : SELV conforming to EN/IEC 60950-1, SELV conforming to EN/IEC 60204-1, SELV conforming to IEC 60364-4-41

Enclosure Material : Plastic

Electromagnetic Emission : Conducted emissions conforming to EN 61000-6-3, radiated emissions conforming to EN 61000-6-4

Maximum Leakage Current : 0.25 mA 240 V AC

Residual Ripple : < 100 mV

Network Frequency Limits : 50-60 Hz

Variant Option : Modular

Load Capacitance : 3000 µF

Power Factor : 0.50 at 115 V AC, 0.39 at 230 V AC

Vibration Resistance : 3 mm (f= 2-9 Hz) conforming to IEC 60721-3-3, 10 m/s² (f= 9-200 Hz) conforming to IEC 60721-3-3

Output Protection Type : Against overload and short-circuits, protection technology: automatic reset, against over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset

Status LED : 1 LED (green) output voltage

Electric Compatibility : Immunity to electrostatic discharge - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2, immunity to electrostatic discharge - test level: 9 kV (air discharge) conforming to EN/IEC 61000-4-2, immunity to conducted RF disturbances - test level: 10 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3, immunity to conducted RF disturbances - test level: 3 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4, surge immunity test - test level: 3 kV (between power supply and earth) conforming to EN/IEC 61000-4-5, surge immunity test - test level: 1.5 kV (between phases) conforming to EN/IEC 61000-4-5, immunity to conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8, immunity to voltage dips conforming to EN/IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to EN 61000-3-2, conducted disturbance emission conforming to EN 55016-1-2, conducted disturbance emission conforming to EN 55016-2-1

Ambient Air Temperature For Operation : -25--10 °C with current derating of 1 % per °C mounting position A < 2000 m, -10-55 °C without current derating mounting position A < 2000 m, 55-70 °C with current derating of 2.67 % per °C mounting position A < 2000 m

Standards : EN 62368-1, EN/IEC 61010-1, EN 61010-2-201, EN/IEC 61204-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, UL 62368-1, UL 61010-1, UL 61010-2-201, CSA C22.2 No 62368-1, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201, EN/IEC 62368-1

Electrical Shock Protection Class : Class II without PE connection

Earthing System : TN, TT, IT

Weight : 0.221 kg
