Schneider Electric Modicon Network Switch Networking Managed 8 Ports for Copper MCSESM083F23F0

Schneider Electric Modicon Network Switch Networking Managed 8 Ports for Copper MCSESM083F23F0

Name: Schneider Electric Modicon Network Switch Networking Managed 8 Ports for Copper MCSESM083F23F0
Brand: Schneider Electric
Price: 7818.75 AED
Availability: InStock

AED 7,818.75

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Managed Switch

Description

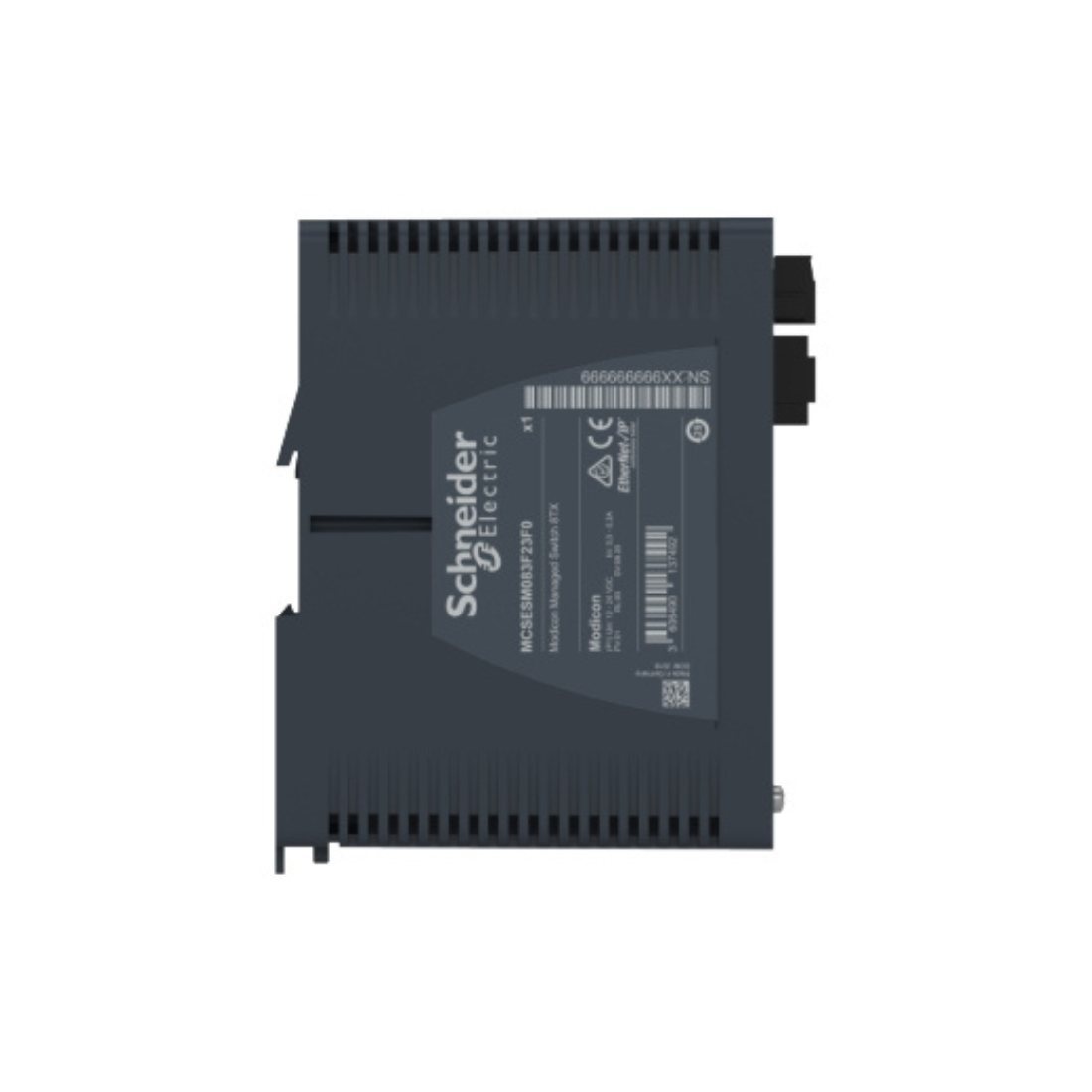

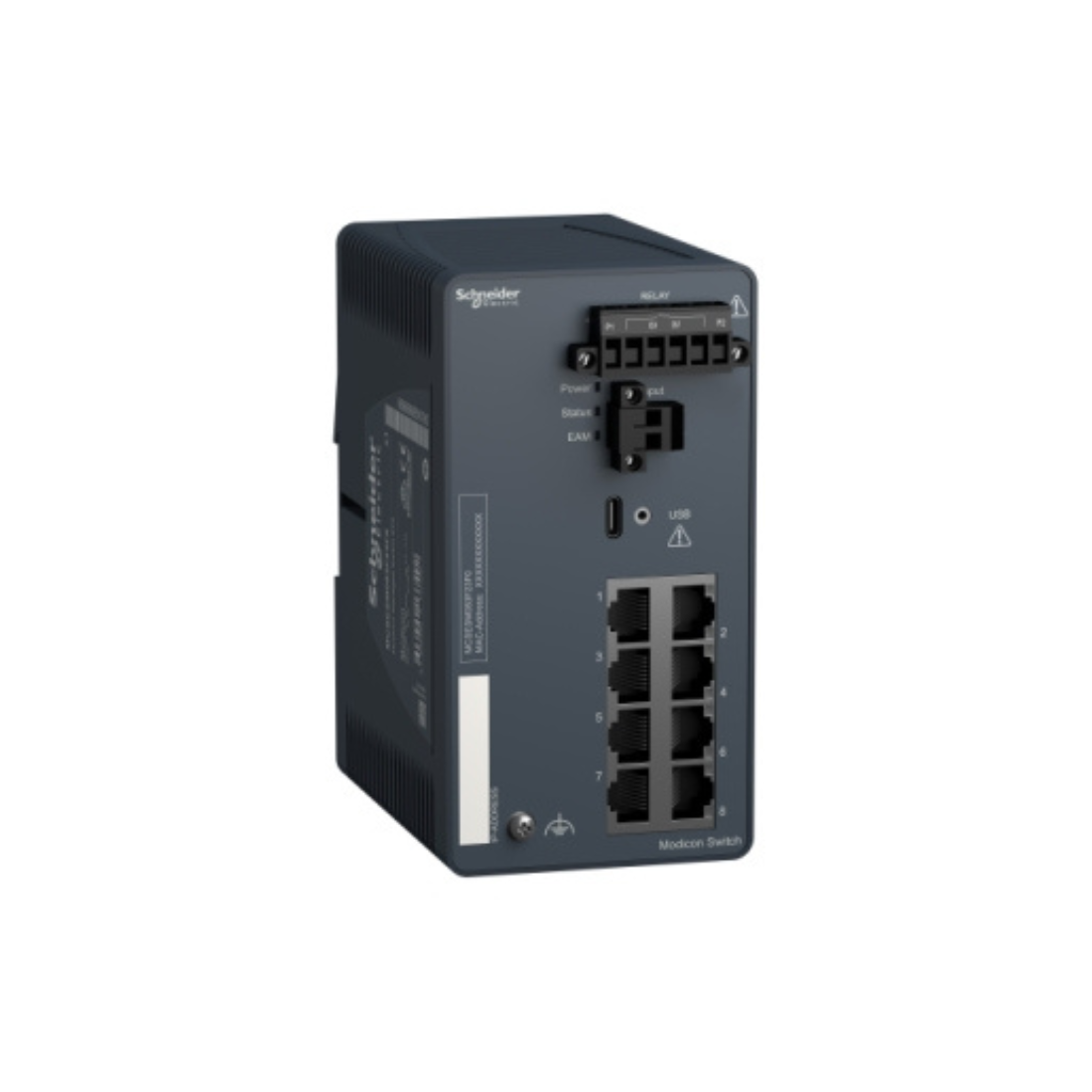

Schneider Electric MCSESM083F23F0 Modicon Managed Switch is part of the Modicon Networking range, a standard managed switch offering from Modicon. This managed switch features the Ethernet TCP/IP protocol. It has 8 copper cable transmission ports. It offers simple and complex connectivity for multiple Ethernet devices, network management, enhanced cybersecurity, and advanced switching capabilities. It operates with a power consumption of 6W and a nominal voltage of 12V to 24V DC.

Schneider Electric MCSESM083F23F0 Modicon Managed Switch has a removable 6-pin power connector. It has shielded connectors suitable for medium-sized isolated networks or systems with medium network traffic and networks of medium complexity. It is CE, UL, RCM, EAC, UKCA, and DNV certified and complies with UL 61010, EN/IEC 61131, and EN/IEC 62368-1. Designed to be mounted on a 35mm symmetrical DIN rail. It offers low power consumption and compact size. It also offers easy connectivity for multiple Ethernet devices.

The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operations, from the device level to your corporate network and control network.

Features

It operates with a power consumption of 6W and a nominal voltage of 12V to 24V DC.

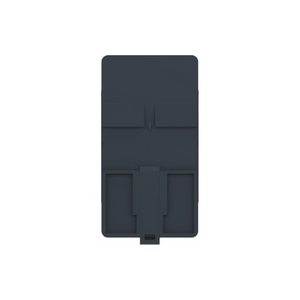

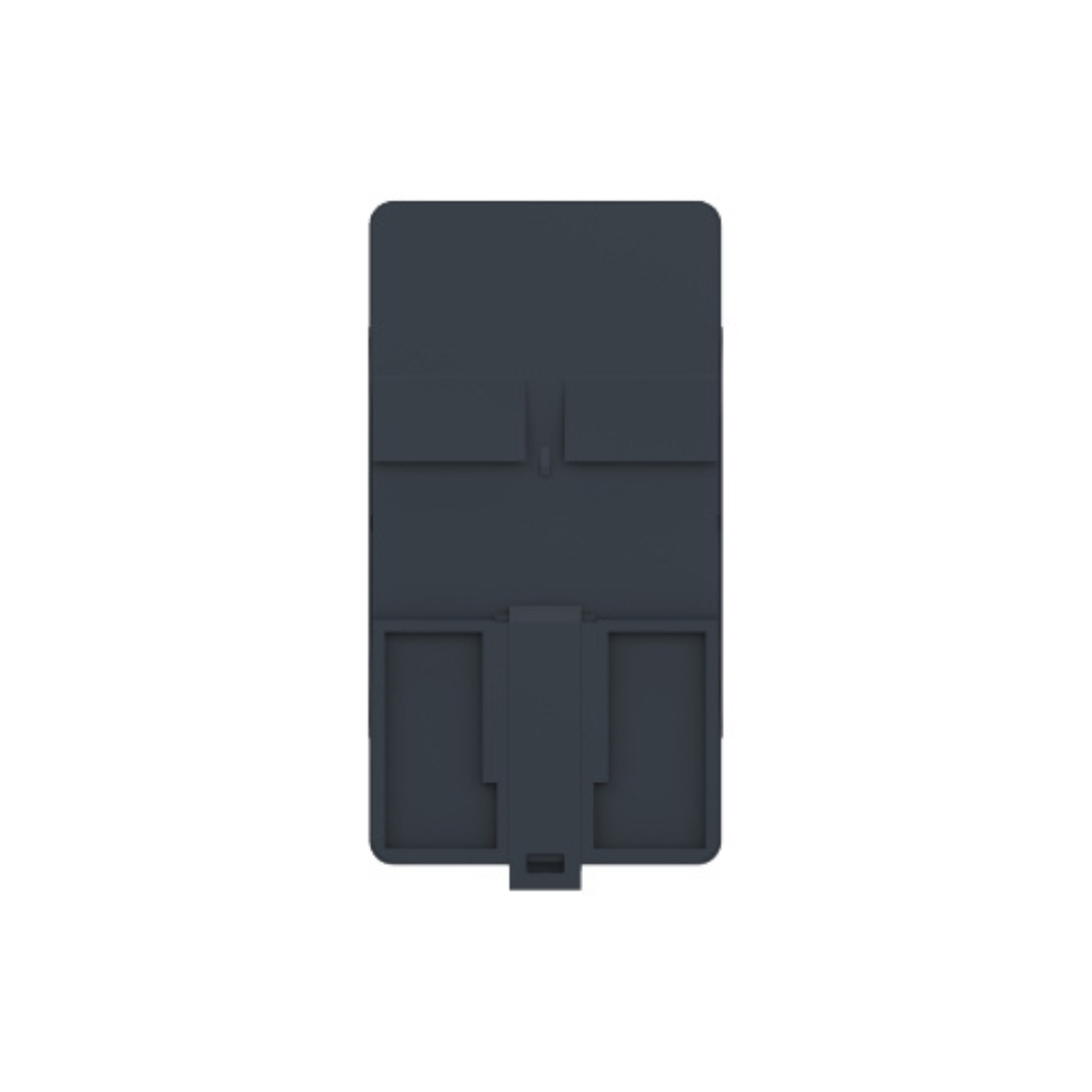

Mounted on a 35mm symmetrical DIN rail.
It has 8 copper cable transmission ports.
Offers easy connectivity for multiple Ethernet devices.

Specifications

Brand : Schneider Electric

Item Name : Ethernet TCP/IP managed switch

Model : MCSESM083F23F0

Rated Supply Voltage : 12...24 V

Depth : 117.6 mm

Height : 142.8 mm

IP Degree Of Protection : IP30

Marking : CE, cULus, RCM

Mounting Support : 35 mm symmetrical DIN rail

Certifications : CE, UL, RCM, DNV, ATEX

Range Of Product : Modicon

Relative Humidity : 1-95 % non-condensing

Supply Voltage Limits : 9.6-32 V DC SELV

Width : 73 mm

Maximum Cable Distance Between Devices : 100 m copper cable

Port Ethernet : 10/100BASE-TX - 8 port(s) copper cable

Communication Service : TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection

Transmission Support Medium : Twisted shielded pairs cable CAT 5E for copper cable

Concept : Transparent Ready

Cybersecurity : Port hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner

Maximum Number Of Switches In Cascade : Unlimited

Ethernet Cabling System : TF Switches

Alarm Function : Power supply fault, data link status, switch fault, high temperature, redundancy ring fault, incorrect configuration, external memory removed

Alarm Output : 1 voltfree contact 1 A

Redundancy : HiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP

Ethernet Service : Configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG

Maximum Number Of Switches in a Ring : 50

Diagnostics Run Time : Signal contact, self-test, MAC notification

Vibration Resistance : 4 gn (f= 10-500 Hz) conforming to EN/IEC 61131-2

Standards : UL 61010-2-201, EN/IEC 61131-2, EN/IEC 62368-1

Local Signalling : 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic

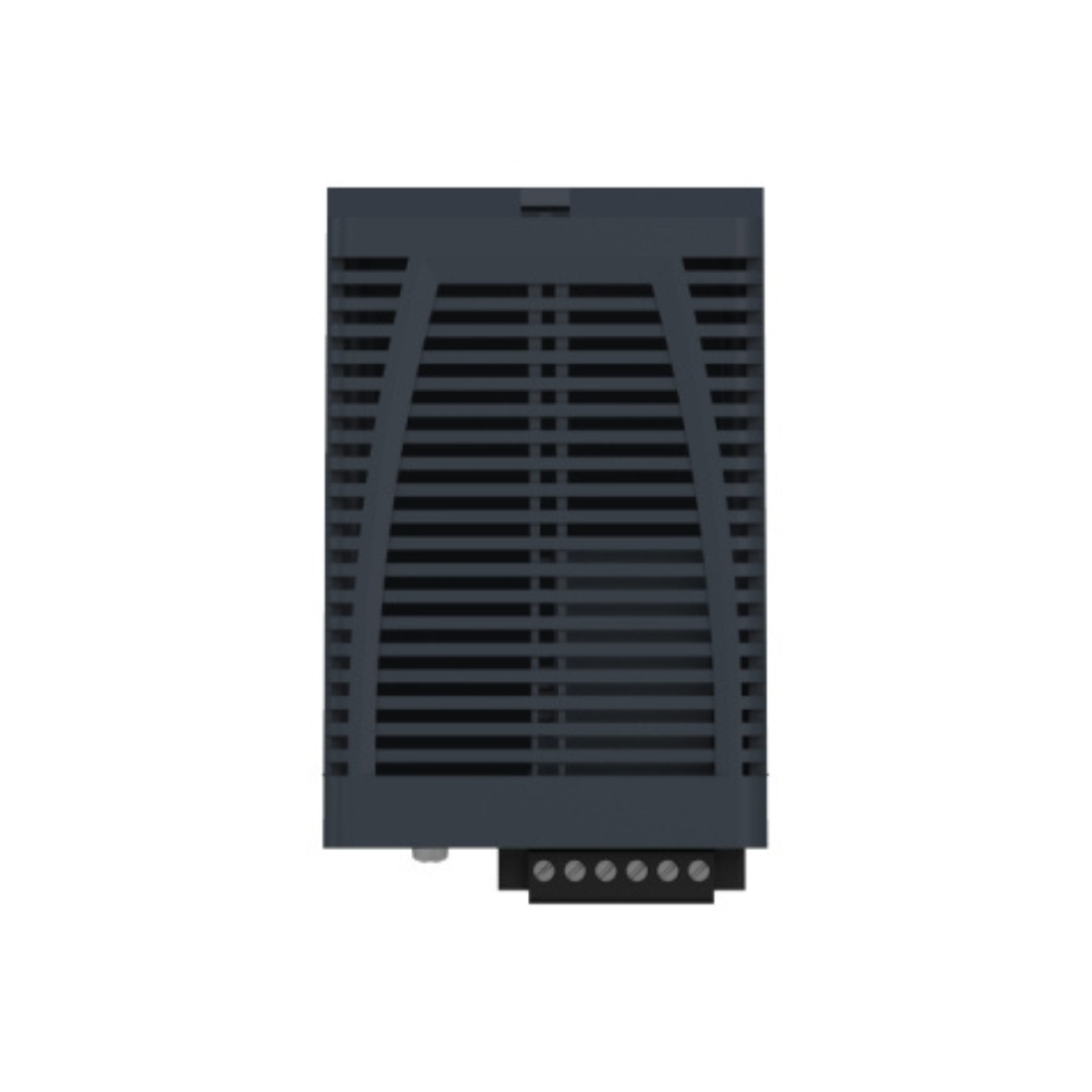

Electrical Connection : Removable connector 6 ways power supply

Function Available : Security status, alarms (Traps), system information, report

Integrated Connection Type : Shielded RJ45 copper cable

Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility

Communication Port Protocol : Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, SFTP, SCP, LLDP, Telnet, SNTP

Ambient Air Temperature For Operation : 0-60 °C

Weight : 0.42 kg
