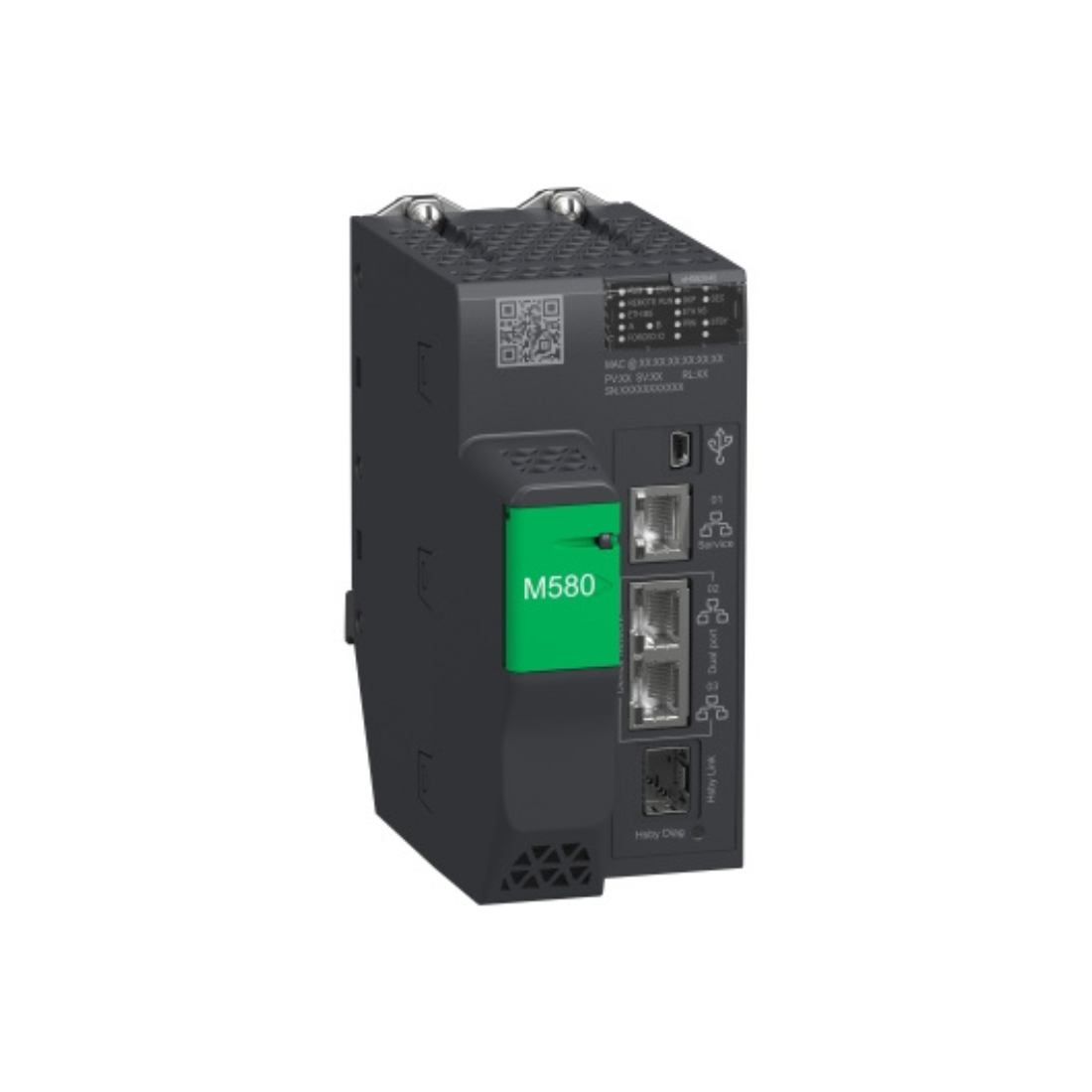

Schneider Electric Modicon M580 Redundant Processor Module HSBY Level 2 Remote BMEH582040
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Redundant Processor Module
Description
Schneider Electric BMEH582040 Redundant Processor Module is part of the Modicon M580 series, a range of programmable automation controllers (PAC) and programmable logic controllers (PLC) with integrated Ethernet. This redundant processor module offers a maximum 1-rack configuration. It is a processor module with a current consumption of 270mA at 24V DC. Supports 8192 analog, 2048 discrete, and 64 distributed devices local I/O channels. It is equipped with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device networking, Ethernet for HSBY port, and USB Type Mini B for integrated ports. Offers 600,000 hours of MTBF.
Schneider Electric BMEH582040 Modicon M580 Redundant Processor Module has a built-in RAM of 8 MB for programs, 768 KB for data, 10 KB for system memory, and an expandable 4 GB flash memory for data storage. It has IP20 certification. It weighs 0.849 kg. It is suitable for medium and large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, and EAC. Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. The benefits of Modicon M580 include reducing time to market, improving reliability and sustainability, improving productivity with high performance, and increasing operational profitability through better data access.
Features
- Current consumption of 270mA at 24V DC
- Offers 600,000 hours of MTBF
- IP20 certification.
| Brand | Schneider Electric |
| Item Name | Redundant Processor Module |
| Model | BMEH582040 |
| Current Consumption | 270 mA at 24 V DC |
| IP Degree Of Protection | IP20 |
| Marking | CE |
| Operating Altitude | 0...2000 m, 2000...5000 m with derating factor |
| Range Of Product | Modicon M580 |
| Relative Humidity | 5-95 % at 55-55 °C without condensation |
| Shock Resistance | 30 gn |
| Supply | Internal power supply via rack |
| Memory Description | Expandable flash, 4 GB for data storage, integrated RAM, 10 kB for system memory, integrated RAM, 8 MB for program, integrated RAM, 768 kB for data |
| Checks | Process Control |
| MTBF Reliability | 650000 H |
| Number Of Racks | 1 |
| Communication Service | DIO scanner, RIO scanner |
| Communication Module Processor Capacity | 2 Ethernet communication module, 8 AS-Interface module |
| Number Of Instructions Per ms | 7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 10 Kinst/ms 100 % Boolean |
| Control Channels | Programmable loops |
| Number Of Distributed Equipment | 64 |
| Number Of Remote I/O Station | 8 - 2 rack(s) per X80 remote drop |
| Application Specific I/O | Counter, accurate time stamping, serial link, HART, motion control, SSI encoder |
| Vibration Resistance | 3 gn |
| Status LED | 1 LED (green) processor running (RUN), 1 LED (red) processor or system fault (ERR), 1 LED (red) I/O module fault (I/O), 1 LED (green) download in progress (DL), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green) peer processor running (REMOTE RUN), 1 LED (green) processor ID set to A (A), 1 LED (green) processor ID set to B (B), 1 LED (green) processor acting as Primary (PRIM), 1 LED (green) processor acting as Standby (STBY), 1 LED (green) I/O values overrided by user (FORCED IO), 1 LED (green) Hot standby link status (Hsby Diag) |
| Ambient Air Temperature For Operation | 0-60 °C |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0 |
| Environmental Characteristic | Gas resistant class Gx conforming to ISA S71.04, gas resistant class 3C4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, sand resistant class 3S4 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, mold growth resistant class 3B2 conforming to IEC 60721-3-3, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, hazardous location class I division 2 |
| Integrated Connection | 1 Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, USB type mini B, 1 Ethernet for HSBY port |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Weight | 0.849 kg |
