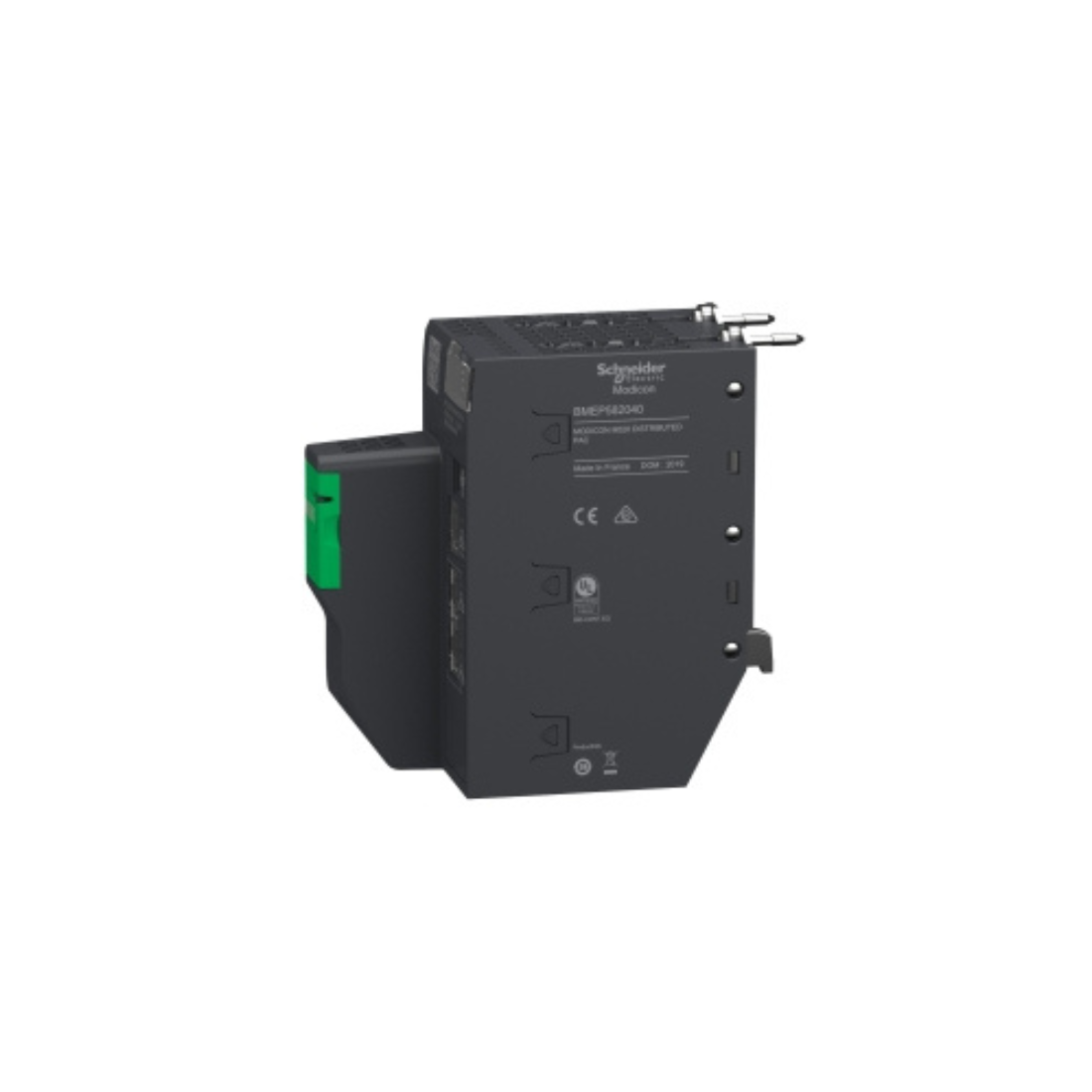

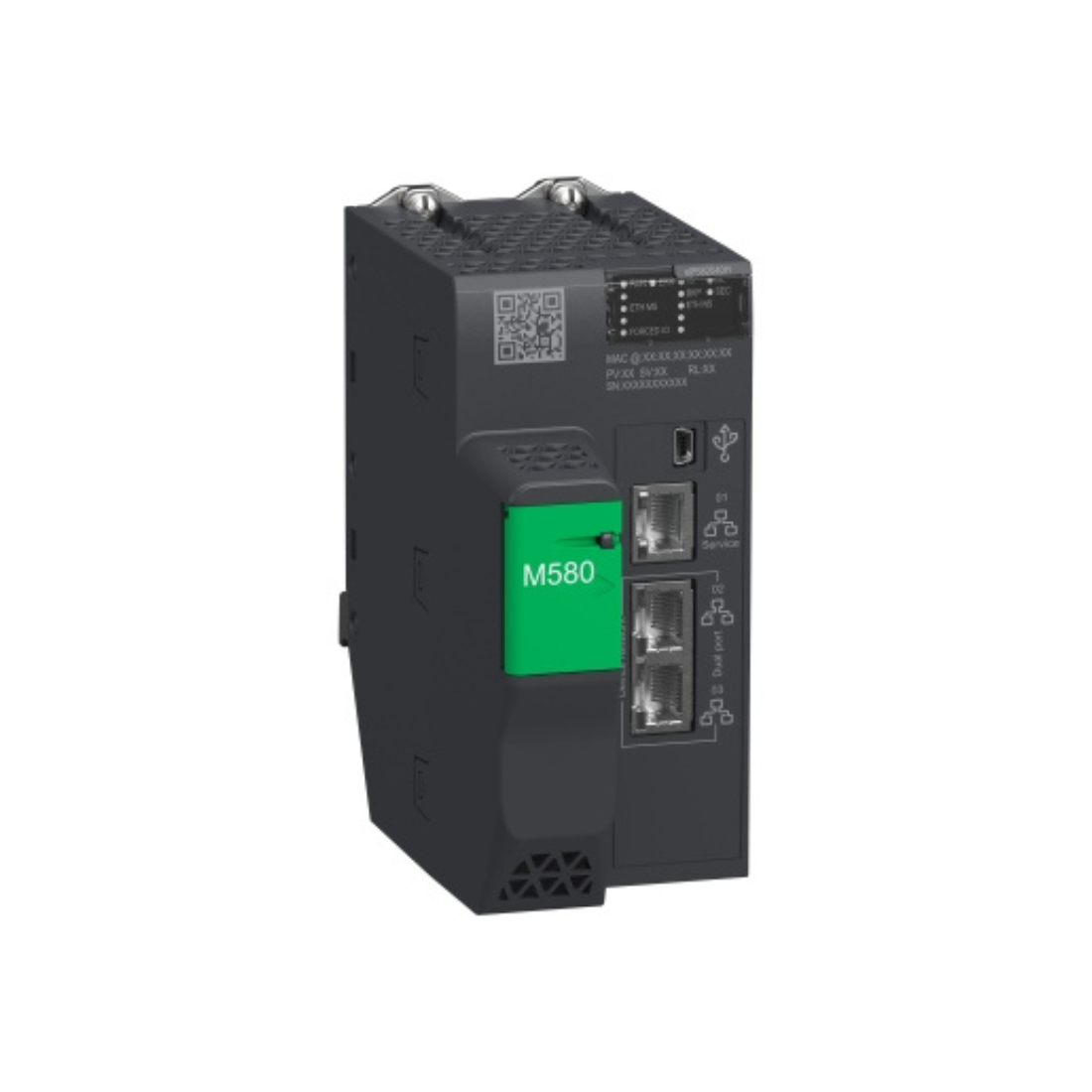

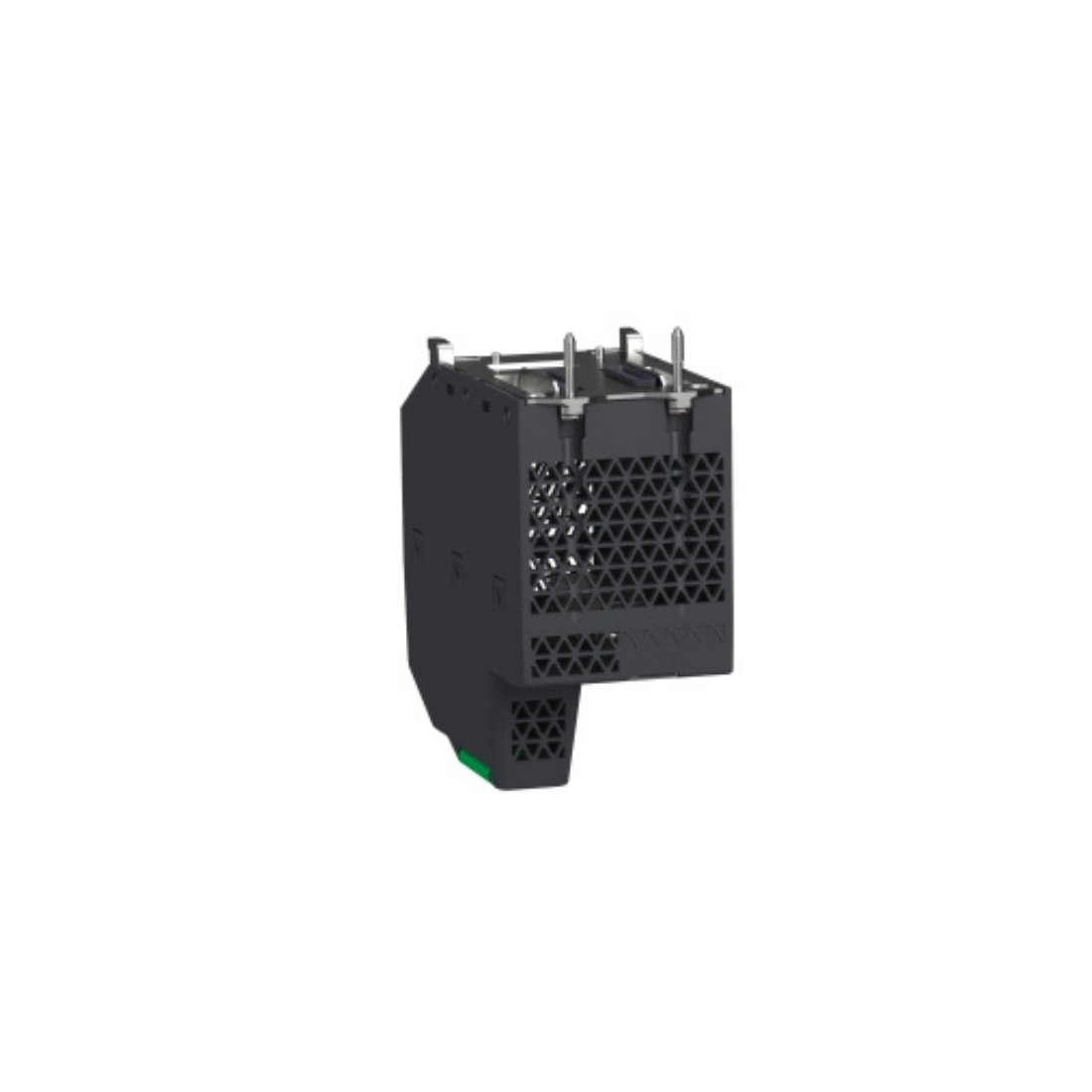

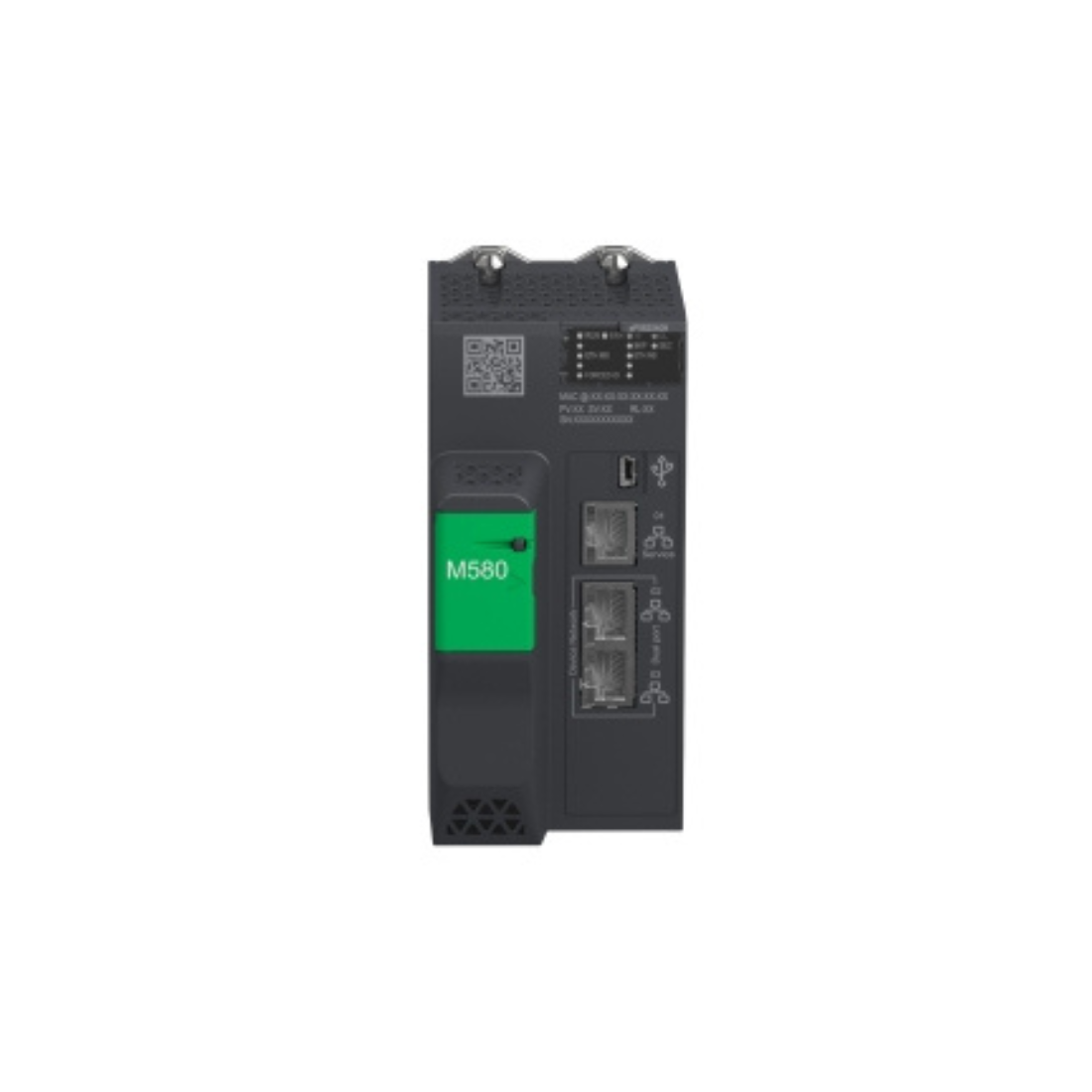

Schneider Electric Modicon M580 Processor Module Level 2 Remote Harsh BMEP582040H
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Processor Module
Description
Schneider Electric BMEP582040H Processor Module is part of the Modicon M580 series, a range of programmable automation controllers (PAC) and programmable logic controllers (PLC) with integrated Ethernet. This processor module offers a maximum of 4 rack configurations and 72 application-specific channels. It is a processor module with a current consumption of 270mA at 24V DC. Supports 2048 analog, 512 discrete, and 64 distributed devices local I/O channels. It can be used in harsher environments and can operate in an extended temperature range of -25°C to +70°C.
The Processor Module is integrated with Ethernet TCP/IP for the service port, 2 Ethernet TCP/IP for device networking, Ethernet for the HSBY port, and USB Type Mini B for connections. It offers 600,000 hours of MTBF and it has 8 to 2 racks per remote station for the I/O station. It has a built-in RAM of 8 MB for programs, 768 KB for data, 10 KB for system memory, and an expandable 4 GB flash memory for data storage. It has an IP20 certification.
Schneider Electric BMEP582040H Modicon M580 Processor Module is suitable for medium and large process applications. It is certified by UL, ATEX, IEC-Ex, CE, Merchant Navy, CSA, RCM, and EAC. Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. The benefits of Modicon M580 include reducing time to market, improving reliability and sustainability, improving productivity with high performance, and increasing operational profitability through better data access.
Features
- Used in harsher environments and can operate in an extended temperature range of -25°C to +70°C.
- It has 8 to 2 racks per remote station for the I/O station.
- Offers 600,000 hours of MTBF
- IP20 certification.
| Brand | Schneider Electric |
| Item Name | Processor Module |
| Model | BMEP582040H |
| Current Consumption | 270 mA at 24 V DC |
| IP Degree Of Protection | IP20 |
| Marking | CE |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Operating Altitude | 0...2000 m, 2000...5000 m with derating factor |
| Protective Treatment | Conformal coating |
| Range Of Product | Modicon M580 |
| Relative Humidity | 5-95 % at 55-55 °C without condensation |
| Shock Resistance | 30 gn |
| Supply | Internal power supply via rack |
| Memory Description | Expandable flash, 4 GB for data storage, integrated RAM, 10 kB for system memory, integrated RAM, 8 MB for program, integrated RAM, 768 kB for data |
| Checks | Process Control |
| MTBF Reliability | 775000 H |
| Number Of Racks | 4 |
| Communication Module Processor Capacity | 2 Ethernet communication module, 8 AS-Interface module |
| Analogue I/O Processor Capacity | 512 I/O |
| Application Structure | 1 periodic fast task, 64 event tasks, 1 cyclic/periodic master task, 2 auxiliary tasks |
| Number Of Instructions Per ms | 7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 10 Kinst/ms 100 % Boolean |
| Control Channels | Programmable loops |
| Number Of Application | Specific channel 72 |
| Discrete I/O Processor Capacity | 2048 I/O |
| Number Of Distributed Equipment | 64 |
| Number Of Remote I/O Station | 8 - 2 rack(s) per remote drop |
| Application Specific I/O | Counter, HART, SSI encoder, accurate time stamping, motion control, serial link |
| Vibration Resistance | 3 gn |
| Status LED | 1 LED (green) processor running (RUN), 1 LED (red) processor or system fault (ERR), 1 LED (red) I/O module fault (I/O), 1 LED (green) download in progress (DL), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status) |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0 |
| Environmental Characteristic | Gas resistant class Gx conforming to ISA S71.04, gas resistant class 3C4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, sand resistant class 3S4 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, mold growth resistant class 3B2 conforming to IEC 60721-3-3, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, hazardous location class I division 2 |
| Integrated Connection | Type 1 Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, USB type mini B |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
