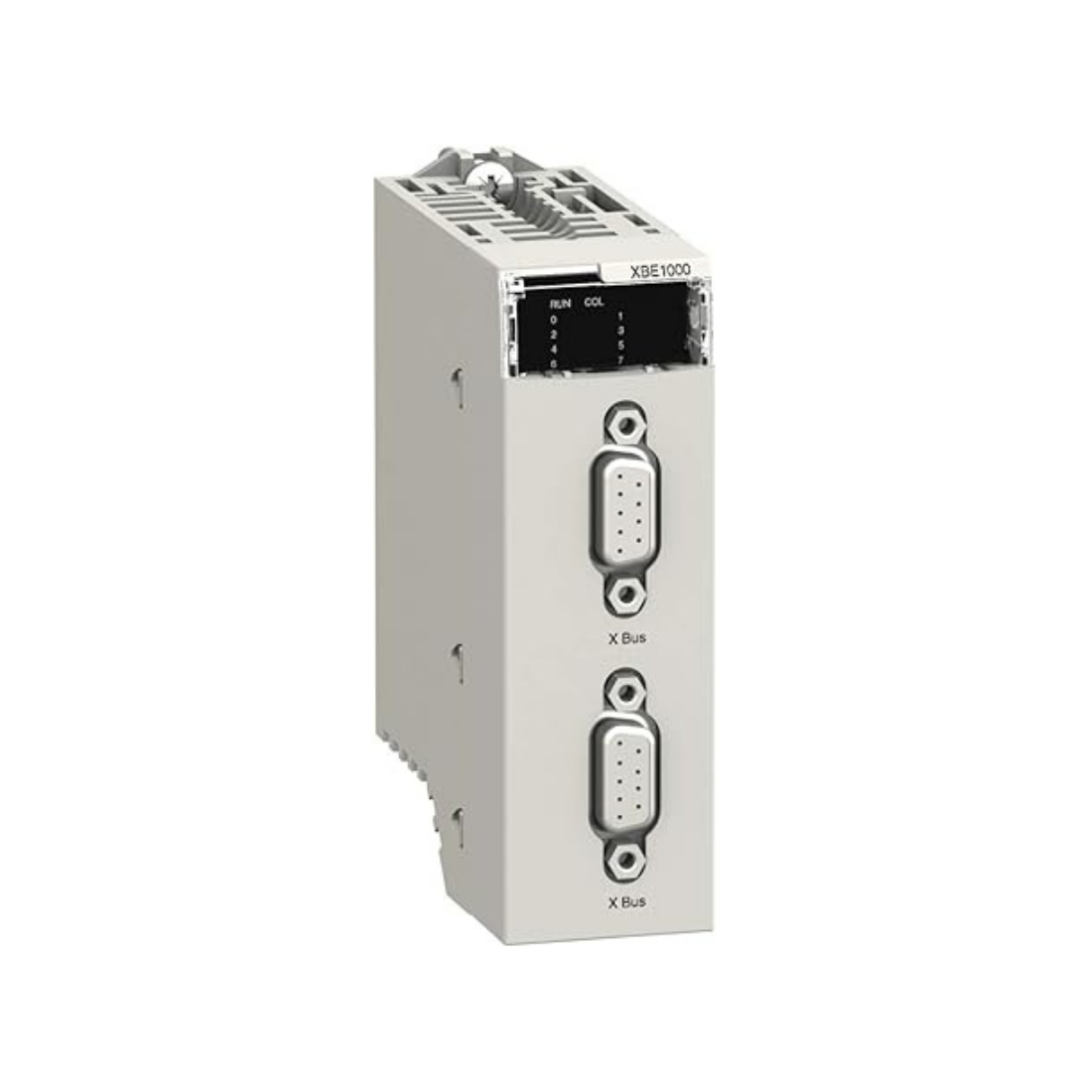

Schneider Electric Modicon M340 Automation Platform Backplane Expander for Multiracks Configuration BMXXBE1000
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Backplane Expander
Description
Schneider Electric BMXXBE1000 Modicon M340 Automation Platform is a range of programmable automation controllers (PACs). This backplate expander is an expansion accessory for the Modicon M580 and M340 programmable automation controllers (PACs). This is an Ethernet rack backplane with a current of 160 mA at 24 V DC and 22 mA at 3.3 V DC. It is robust, high quality, and based on the latest innovative technology.
For electrical connection, it is equipped with 2 9-pin SUB-D female connectors. It has an IP20 certification. It is suitable for medium to large process applications and the expander is suitable for multirack configuration. Complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards. Schneider Electric BMXXBE1000 Modicon M340 Automation Platform backplane expander is compatible with Modicon M340 BMXXBP0600, BMXXBP0400, BMXXBP0800, and BMXXBP1200 backplanes.
Features
- It is robust, high quality, and based on the latest innovative technology.
- Equipped with 2 9-pin SUB-D female connectors
- IP20 certification
- Suitable for multirack configuration
| Brand | Schneider Electric |
| Item Name | Backplane Expander |
| Model | BMXXBE1000 |
| Accessory / Separate Part Category | Extension Accessory |
| Accessory / Separate Part Destination | For Multiracks Configuration |
| Accessory / Separate Part Type | Backplane |
| Current Consumption | 160 mA at 24 V DC, 22 mA at 3.3 V DC |
| IP Degree Of Protection | IP20 |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Protective Treatment | TC |
| Range Of Product | Modicon M340 Automation Platform |
| Relative Humidity | 10-95 % Without Condensation |
| Accessory / Separate Part Designation | Backplane Expander |
| Module Format | Standard |
| Ambient Air Temperature For Operation | 0-60 °C |
| Local Signalling | 1 LED green for operating status (RUN) bus, 1 LED red for collision error (COL) rack, 4 LEDs green for rack adresses status |
| Standards | EN 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G |
| Compatibility | BMXXBP0600, BMXXBP0400, BMXXBP0800, BMXXBP1200 |
| Environmental Characteristic | Hazardous location class I division 2 |
| Electrical Connection | 2 Female connectors SUB-D 9 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
