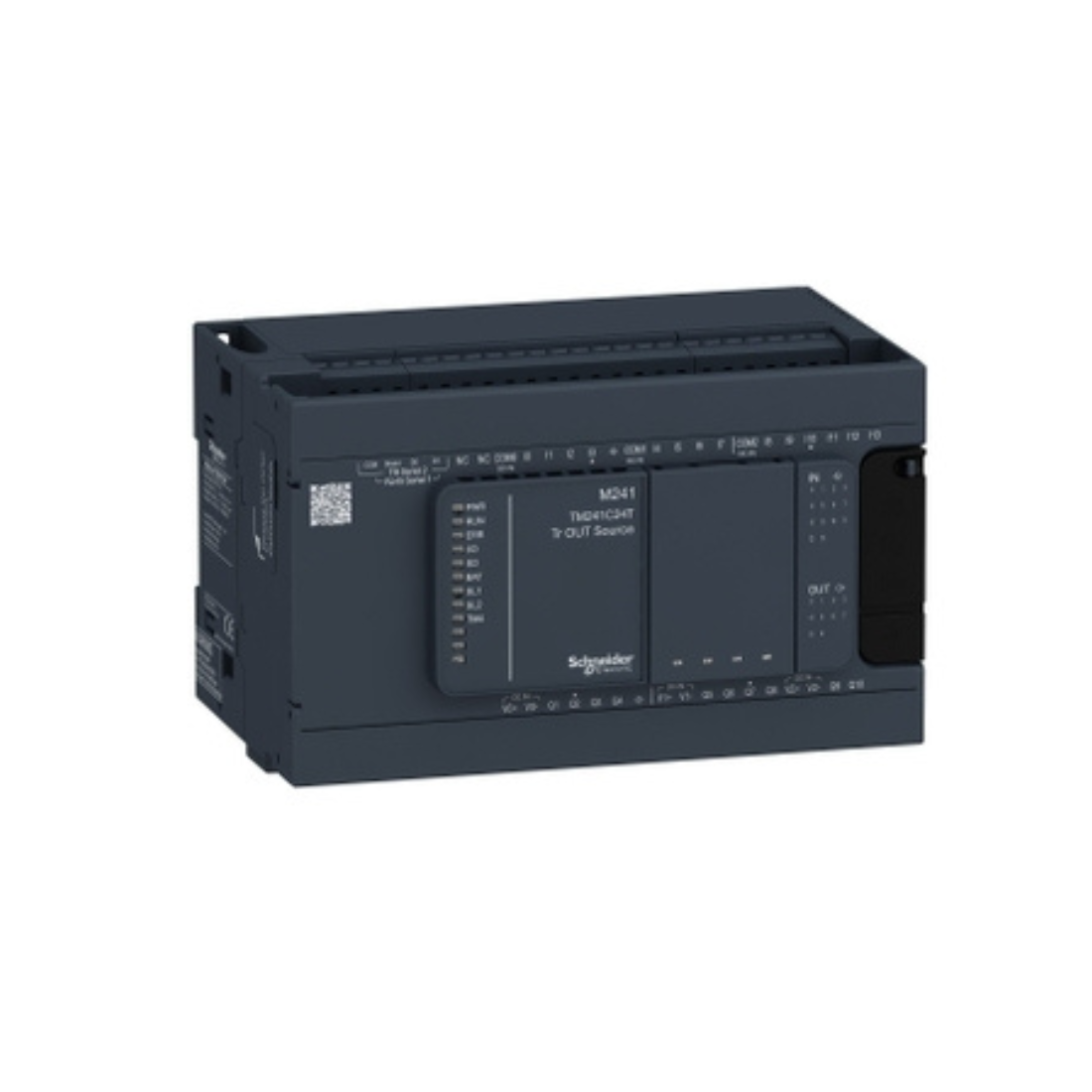

Schneider Electric Modicon M241 Logic Controller 24 I/O Transistor PNP TM241C24T
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Logic Controller
Description
Schneider Electric TM241C24T Logic Controller is part of the Modicon M241 series, a range of logic controllers for power-intensive applications. This logic controller offers 14 discrete inputs, 8 fast, 10 transistors, and 4 fast outputs with PNP transistor output. It is a Modicon logic controller with a nominal supply/output voltage of 24 VDC, an output current of 0.5 A for transistor output, and 0.1 A for fast positive output logic with source or sink input logic.
Logic Controller enables more intuitive app creation than ever, thanks to an organized screen layout. The integrated ports are a USB port with Mini-B USB 2.0 port, a non-isolated serial link 1 with RJ45 port and RS232/RS485 interface, and a non-isolated serial link 2 with removable screw terminal block connector and RS485 interface. It is a Modicon M241 controller with 8 MB for programs, 64 MB for system memory (RAM), 128 MB of integrated flash memory for backing up user programs, and a 16 GB SD card storage capacity. It has an IP20 certification.
Schneider Electric TM241C24T Modicon M241 Logic Controller is designed for compact, high-performance machines with speed and position control functions. It is CE, IACS E10, CSA, RCM, and CULus certifications. Complies with ANSI/ISA 12-12-01, CSA C22.2 No. 142, CSA C22.2 No. 213, EN/IEC 61131-22007, Marine specifications (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. Supports DIN rail mounting. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications, and function blocks.
Features
- It offers 14 discrete inputs, 8 fast, 10 transistors, and 4 fast outputs with PNP transistor output.
- IP20 certification
| Brand | Schneider Electric |
| Item Name | Logic Controller |
| Model | TM241C24T |
| Resistance To Electrostatic Discharge | 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2 |
| Depth | 95 mm |
| Supply Voltage Limits | 20.4-28.8 V |
| Width | 150 mm |
| Discrete Output Current | 0.5 A for transistor output (Q0...Q9), 0.1 A for fast output (PTO mode) (Q0...Q3) |
| Supply | (serial 1)serial link supply: 5 V, <200 mA |
| Data Backed Up | 128 MB built-in flash memory for backup of user programs |
| Data Storage Equipment | <= 16 GB SD card (optional) |
| Reset Time | 10 ms automatic reset output, 12 s automatic reset fast output |
| Clock Drift | <= 60 s/month at 25-25 °C |
| Immunity To Microbreaks | 10 ms |
| Discrete Input Current | 5 mA for input, 10.7 mA for fast input |
| Voltage State 1 Guaranteed | >= 15 V for input |
| Cycle Time | 10 ms 16 EtherNet/IP, 64 ms 64 Modbus TCP |
| Discrete Input Voltage | 24 V |
| Backup Time | 2 years at 25 °C |
| Voltage State 0 Guaranteed | <= 5 V for input |
| Discrete Input Number | 14, discrete input 8 fast input conforming to IEC 61131-2 Type 1 |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| Surge Withstand | 1 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5, 1 kV shielded cable common mode conforming to EN/IEC 61000-4-5, 0.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-5, 1 kV relay output differential mode conforming to EN/IEC 61000-4-5, 1 kV input common mode conforming to EN/IEC 61000-4-5, 1 kV transistor output common mode conforming to EN/IEC 61000-4-5 |
| Resistance To Fast Transients | 2 kV (power lines) conforming to EN/IEC 61000-4-4, 1 kV (serial link) conforming to EN/IEC 61000-4-4, 1 kV (input) conforming to EN/IEC 61000-4-4, 1 kV (transistor output) conforming to EN/IEC 61000-4-4 |
| Electromagnetic Emission | Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to EN/IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to EN/IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A at 30-230 MHz conforming to EN/IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A at 230-1000 MHz conforming to EN/IEC 55011 |
| Discrete Output Type | Transistor |
| Discrete Output Number | 10 transistor 4 fast output |
| Realtime Clock | With |
| Discrete Input Logic | Sink or source |
| Discrete Input Voltage Type | DC |
| Maximum Voltage Drop | <1 V |
| Maximum Tungsten Load | <2.4 W |
| Maximum Leakage Current | 5 µA for output |
| Maximum Number Of I/O Expansion Module | 7 (local I/O-Architecture), 14 (remote I/O-Architecture) |
| Counting Input Number | 4 fast input (HSC mode) at 200 kHz, 14 standard input at 1 kHz |
| Resistance To Conducted Disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Maximum Cable Distance Between Devices | Unshielded cable: <50 m for input, shielded cable: <10 m for fast input, unshielded cable: <50 m for output, shielded cable: <3 m for fast output |
| Discrete Output Logic | Positive logic (source) |
| Positioning Functions | PTO function 4 channel(s) (positioning frequency: 100 kHz), PTO function 4 channel(s) for transistor output (positioning frequency: 1 kHz) |
| Accuracy | +/- 0.1 % at 0.02-0.1 kHz for fast output, +/- 1 % at 0.1-1 kHz for fast output |
| Maximum Current Per Output Common | 2 A with Q0...Q3 for fast output, 2 A with Q4...Q7 for output, 1 A with Q8...Q9 for output |
| Transmission Rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 480 Mbit/s for bus length of 3-3 m for USB |
| Discrete I/O Number | 24 |
| Application Structure | 4 cyclic master tasks, 3 cyclic master tasks + 1 freewheeling task, 8 external event tasks, 8 event tasks |
| Configurable Filtering Time | 1 µs for fast input, 12 ms for fast input, 0 ms for input, 1 ms for input, 4 ms for input, 12 ms for input |
| Discrete Output Voltage | 24 V DC for transistor output |
| Memory Capacity | 8 MB for program, 64 MB for system memory RAM |
| Execution Time For 1 KInstruction | 0.3 ms for event and periodic task, 0.7 ms for other instruction |
| Maximum Output Frequency | 20 kHz for fast output (PWM mode), 100 kHz for fast output (PLS mode), 1 kHz for output |
| Vibration Resistance | 3.5 mm at 5-8.4 Hz on symmetrical rail, 3 gn at 8.4-150 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on panel mounting, 3 gn at 8.4-150 Hz on panel mounting |
| Ambient Air Temperature For Operation | -10-50 °C (vertical installation), -10-55 °C (horizontal installation) |
| Standards | ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-2:2007, Marine specification (LR, ABS, DNV, GL), UL 1604, UL 508 |
| Communication Port Protocol | Non isolated serial link: Modbus master/slave |
| Control Signal Type | A/B at 100 kHz for fast input (HSC mode), pulse/direction at 200 kHz for fast input (HSC mode), single phase at 200 kHz for fast input (HSC mode) |
| Storage Altitude | 0-3000 m |
| Ambient Air Temperature For Storage | -25-70 °C |
