Schneider Electric Modicon M241 Logic Controller 24 I/O Transistor NPN Ethernet TM241CE24U
Schneider Electric Modicon M241 Logic Controller 24 I/O Transistor NPN Ethernet TM241CE24U

Schneider Electric Modicon M241 Logic Controller 24 I/O Transistor NPN Ethernet TM241CE24U

Regular price AED 2,489.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Logic Controller
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

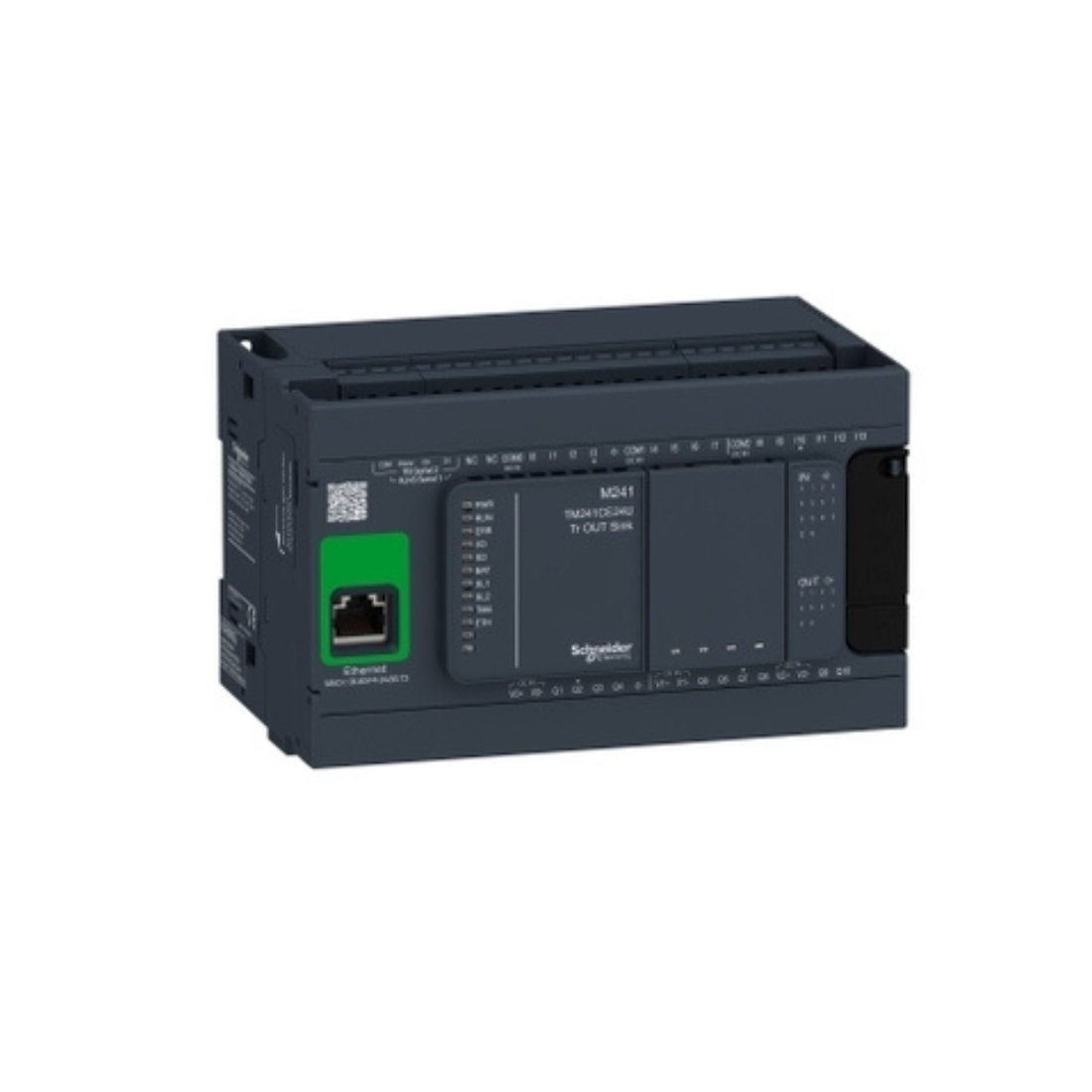

    Schneider Electric TM241CE24U Modicon M241 Logic Controller is part of the Modicon M241 series, a range of logic controllers for power-intensive applications. This logic controller offers 14 discrete inputs, 8 fast, 10 transistors, and 4 fast outputs with Ethernet NPN transistor output. It is a Modicon logic controller with a nominal supply/output voltage of 24 VDC and an output current of 0.5 A for transistor output, 0.1 A for fast output current with source or sink input logic, and logic negative output.

    The Logic Controller enables more intuitive app creation than ever, thanks to an organized screen layout. Integrated ports include a USB port with USB Mini-B 2.0, non-isolated serial link 1 with RJ45 and RS232/RS485 interface, non-isolated serial link 2 with removable screw terminal block, and RS485 and Ethernet interface with RJ45. It is a Modicon M241 controller with 8 MB for programs, 64 MB for system memory (RAM), 128 MB of integrated flash memory for backing up user programs, and a 16 GB SD card storage capacity. It has an IP20 certification.

    Schneider Electric TM241CE24U Modicon M241 Logic Controller is designed for compact, high-performance machines with speed and position control functions. It has CE, IACS E10, CSA, RCM, and CULus certifications. Complies with ANSI/ISA 12-12-01, CSA C22.2 No. 142, CSA C22.2 No. 213, EN/IEC 61131-22007, Marine specifications (LR, ABS, DNV, GL), UL 1604 and standards. UL 508. Supports DIN rail mounting. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications, and function blocks.

    Features
    • It offers 14 discrete inputs, 8 fast, 10 transistors, and 4 fast outputs with Ethernet NPN transistor output.
    • IP20 certification
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Logic Controller

    Model : TM241CE24U

    Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

    Depth : 95 mm

    Supply Voltage Limits : 20.4-28.8 V

    Width : 150 mm

    Discrete Output Current : 0.5 A for transistor output (Q0...Q9), 0.1 A for fast output (PTO mode) (Q0...Q3)

    Supply : (serial 1)serial link supply: 5 V, <200 mA

    Data Backed Up : 128 MB built-in flash memory for backup of user programs

    Data Storage Equipment : <= 16 GB SD card (optional)

    Reset Time : 10 ms automatic reset output, 12 s automatic reset fast output

    Clock Drift : <= 60 s/month at 25-25 °C

    Immunity To Microbreaks : 10 ms

    Discrete Input Current : 5 mA for input, 10.7 mA for fast input

    Voltage State 1 Guaranteed : >= 15 V for input

    Cycle Time : 10 ms 16 EtherNet/IP, 64 ms 64 Modbus TCP

    Discrete Input Voltage : 24 V

    Backup Time : 2 years at 25 °C

    Voltage State 0 Guaranteed : <= 5 V for input

    Discrete Input Number : 14 , discrete input 8 fast input conforming to IEC 61131-2 Type 1

    Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

    Surge Withstand : 1 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5, 1 kV shielded cable common mode conforming to EN/IEC 61000-4-5, 0.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-5, 1 kV relay output differential mode conforming to EN/IEC 61000-4-5, 1 kV input common mode conforming to EN/IEC 61000-4-5, 1 kV transistor output common mode conforming to EN/IEC 61000-4-5

    Resistance To Fast Transients : 2 kV (power lines) conforming to EN/IEC 61000-4-4, 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4, 1 kV (serial link) conforming to EN/IEC 61000-4-4, 1 kV (input) conforming to EN/IEC 61000-4-4, 1 kV (transistor output) conforming to EN/IEC 61000-4-4

    Electromagnetic Emission : Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to EN/IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to EN/IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A at 30-230 MHz conforming to EN/IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A at 230-1000 MHz conforming to EN/IEC 55011

    Discrete Output Type : Transistor

    Discrete Output Number : 10 transistor 4 fast output

    Realtime Clock : With

    Discrete Input Logic : Sink or source (positive/negative)

    Discrete Input Voltage Type : DC

    Maximum Voltage Drop : <1 V

    Maximum Tungsten Load : <2.4 W

    Maximum Leakage Current : 5 µA for output

    Maximum Number Of I/O Expansion Module : 7 (local I/O-Architecture), 14 (remote I/O-Architecture)

    Counting Input Number : 4 fast input (HSC mode) at 200 kHz, 14 standard input at 1 kHz

    Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

    Maximum Cable Distance Between Devices : Unshielded cable: <50 m for input, shielded cable: <10 m for fast input, unshielded cable: <50 m for output, shielded cable: <3 m for fast output

    Discrete Output Logic : Negative logic (sink)

    Positioning Functions : PTO function 4 channel(s) (positioning frequency: 100 kHz), PTO function 4 channel(s) for transistor output (positioning frequency: 1 kHz)

    Accuracy : +/- 0.1 % at 0.02-0.1 kHz for fast output, +/- 1 % at 0.1-1 kHz for fast output

    Maximum Current Per Output Common : 2 A with Q0...Q3 for fast output, 2 A with Q4...Q7 for output, 1 A with Q8...Q9 for output

    Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 480 Mbit/s for bus length of 3-3 m for USB, 10/100 Mbit/s for Ethernet

    Discrete I/O Number : 24

    Application Structure : 8 external event tasks, 4 cyclic master tasks, 8 event tasks, 3 cyclic master tasks + 1 freewheeling task

    Configurable Filtering Time : 1 µs for fast input, 12 ms for fast input, 0 ms for input, 1 ms for input, 4 ms for input, 12 ms for input

    Discrete Output Voltage : 24 V DC for transistor output

    Memory Capacity : 8 MB for program, 64 MB for system memory RAM

    Execution Time For 1 KInstruction : 0.3 ms for event and periodic task, 0.7 ms for other instruction

    Maximum Output Frequency : 20 kHz for fast output (PWM mode), 100 kHz for fast output (PLS mode), 1 kHz for output

    Port Ethernet : 10BASE-T/100BASE-TX - 1 port(s) copper cable

    Communication Service : FDR, DHCP server via TM4 Ethernet switch network module, DHCP client embedded Ethernet port, SMS notifications, updating firmware, SNMP client/server, programming, NGVL, monitoring, IEC VAR ACCESS, FTP client/server, downloading, SQL client, Modbus TCP client I/O scanner, Ethernet/IP originator I/O scanner embedded Ethernet port, Ethernet/IP target, Modbus TCP server and Modbus TCP slave, send and receive email from the controller based on TCP/UDP library, web server (WebVisu & XWeb system), OPC UA server, DNS client

    Web services : Web server

    Maximum Number Of Connections : 8 Modbus server, 8 SoMachine protocol, 10 web server, 4 FTP server, 16 Ethernet/IP target, 8 Modbus client

    Number Of Slave : 64 Modbus TCP: , 16 EtherNet/IP:

    Vibration Resistance : 3.5 mm at 5-8.4 Hz on symmetrical rail, 3 gn at 8.4-150 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on panel mounting, 3 gn at 8.4-150 Hz on panel mounting

    Ambient Air Temperature For Operation : -10-50 °C (vertical installation), -10-55 °C (horizontal installation)

    Standards : ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-2:2007, Marine specification (LR, ABS, DNV, GL), UL 1604, UL 508

    Communication Port Protocol : Non isolated serial link: Modbus master/slave

    Control Signal Type : A/B at 100 kHz for fast input (HSC mode), pulse/direction at 200 kHz for fast input (HSC mode), single phase at 200 kHz for fast input (HSC mode)

    Storage Altitude : 0-3000 m

    Ambient Air Temperature For Storage : -25-70 °C
