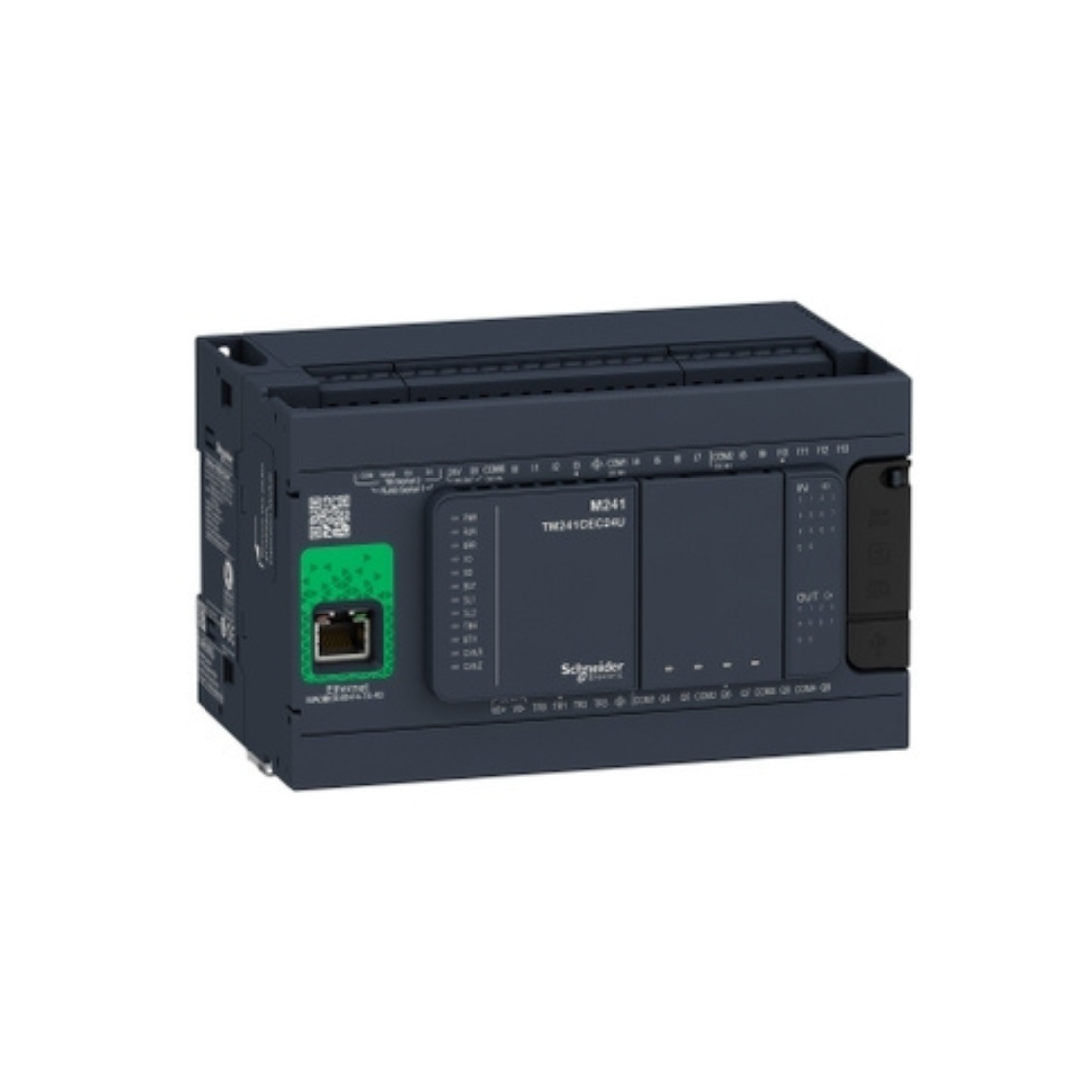

Brand : Schneider Electric

Item Name : Logic Controller

Model : TM241CE24R

Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

Rated Supply Voltage : 100...240 V AC

Depth : 95 mm

Height : 90 mm

IP Degree Of Protection : IP20 with protective cover in place

Marking : CE

Mounting Support : Top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit

Network Frequency : 50/60 Hz

Operating Altitude : 0...2000 m

Output Voltage Limits : 125 V DC relay output, 30 V DC transistor output, 277 V AC relay output

Pollution Degree : 2

Certifications : RCM, CSA, IACS E10, cULus

Range Of Product : Modicon M241

Relative Humidity : 10-95 %, without condensation (in operation), 10-95 %, without condensation (in storage)

Shock Resistance : 15 gn for 11 ms

Supply Voltage Limits : 85-264 V

Width : 150 mm

Discrete Output Current : 2 A for relay output (Q4...Q9), 0.1 A for fast output (PTO mode) (TR0...TR3), 0.5 A for transistor output (TR0...TR3)

Supply : (serial)Serial link supply: 5 V, <200 mA

Data Backed Up : 128 MB built-in flash memory for backup of user programs

Data Storage Equipment : <= 16 GB SD card (optional)

Reset Time : 10 ms automatic reset output, 12 s automatic reset fast output

Clock Drift : <= 60 s/month at 25-25 °C

Discrete Input Current : 5 mA for input

Voltage State 1 Guaranteed : >= 15 V for input

Cycle Time : 10 ms 16 EtherNet/IP, 64 ms 64 Modbus TCP

Discrete Input Voltage : 24 V

Backup Time : 2 years at 25 °C

Voltage State 0 Guaranteed : <= 5 V for input

Discrete Input Number : 14 , discrete input 8 fast input conforming to IEC 61131-2 Type 1

Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

Surge Withstand : 2 kV power lines (AC) common mode conforming to EN/IEC 61000-4-5, 2 kV relay output common mode conforming to EN/IEC 61000-4-5, 1 kV shielded cable common mode conforming to EN/IEC 61000-4-5, 1 kV power lines (AC) differential mode conforming to EN/IEC 61000-4-5, 1 kV relay output differential mode conforming to EN/IEC 61000-4-5, 1 kV input common mode conforming to EN/IEC 61000-4-5, 1 kV transistor output common mode conforming to EN/IEC 61000-4-5

Resistance To Fast Transients : 2 kV (power lines) conforming to EN/IEC 61000-4-4, 2 kV (relay output) conforming to EN/IEC 61000-4-4, 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4, 1 kV (serial link) conforming to EN/IEC 61000-4-4, 1 kV (input) conforming to EN/IEC 61000-4-4, 1 kV (transistor output) conforming to EN/IEC 61000-4-4

Electromagnetic Emission : Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to EN/IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to EN/IEC 55011, conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines) at 0.15-0.5 MHz conforming to EN/IEC 55011, conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines) at 0.5-300 MHz conforming to EN/IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

Discrete Output Type : Relay, Transistor

Discrete Output Number : 6 relay, 4 transistor 4 fast output

Sensor Power Supply : 24-24 V DC at 400 mA supplied by the controller

Realtime Clock : With

Discrete Input Logic : Sink or source (positive/negative)

Discrete Input Voltage Type : DC

Maximum Number Of I/O Expansion Module : 7 (local I/O-Architecture), 14 (remote I/O-Architecture)

Counting Input Number : 4 fast input (HSC mode) at 200 kHz, 14 standard input at 1 kHz

Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Maximum Cable Distance Between Devices : Unshielded cable: <50 m for input, shielded cable: <10 m for fast input, unshielded cable: <50 m for output, shielded cable: <3 m for fast output

Discrete Output Logic : Positive logic (source)

Positioning Functions : PTO function 4 channel(s) (positioning frequency: 100 kHz)

Accuracy : +/- 0.1 % at 0.02-0.1 kHz for fast output, +/- 1 % at 0.1-1 kHz for fast output

Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 480 Mbit/s for bus length of 3-3 m for USB, 10/100 Mbit/s for Ethernet

Discrete I/O Number : 24

Application Structure : 8 external event tasks, 3 cyclic master tasks + 1 freewheeling task, 8 event tasks, 4 cyclic master tasks

Configurable Filtering Time : 1 µs for fast input

Discrete Output Voltage : 5...125 V DC for relay output, 5...250 V AC for relay output, 24 V DC for transistor output

Memory Capacity : 8 MB for program, 64 MB for system memory RAM

Execution Time For 1 KInstruction : 0.3 ms for event and periodic task, 0.7 ms for other instruction

Maximum Output Frequency : 1 kHz for transistor output, 20 kHz for fast output (PWM mode), 100 kHz for fast output (PLS mode)

Port Ethernet : 10BASE-T/100BASE-TX - 1 port(s) copper cable

Communication Service : FDR, DHCP server via TM4 Ethernet switch network module, DHCP client embedded Ethernet port, SMS notifications, updating firmware, SNMP client/server, programming, NGVL, monitoring, IEC VAR ACCESS, FTP client/server, downloading, SQL client, Modbus TCP client I/O scanner, Ethernet/IP originator I/O scanner embedded Ethernet port, Ethernet/IP target, Modbus TCP server and Modbus TCP slave, send and receive email from the controller based on TCP/UDP library, web server (WebVisu & XWeb system), OPC UA server, DNS client

Web services : Web server

Maximum Number Of Connections : 8 Modbus server, 8 SoMachine protocol, 10 web server, 4 FTP server, 16 Ethernet/IP target, 8 Modbus client

Number Of Slave : 64 Modbus TCP: , 16 EtherNet/IP:

Vibration Resistance : 3.5 mm at 5-8.4 Hz on symmetrical rail, 3 gn at 8.4-150 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on panel mounting, 3 gn at 8.4-150 Hz on panel mounting

Ambient Air Temperature For Operation : -10-50 °C (vertical installation), -10-55 °C (horizontal installation)

Standards : ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-2:2007, Marine specification (LR, ABS, DNV, GL), UL 1604, UL 508

Local Signalling : 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4), 1 LED per channel (green) for I/O state, 1 LED (green) for Ethernet port activity

Electrical Connection : Removable screw terminal blockfor inputs and outputs (pitch 5.08 mm), removable screw terminal blockfor connecting the 24 V DC power supply (pitch 5.08 mm)

Integrated Connection Type : Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface , non isolated serial link serial 2 with removable screw terminal block connector and RS485 interface , USB port with mini B USB 2.0 connector, Ethernet with RJ45 connector

Communication Port Protocol : Non isolated serial link: Modbus master/slave

Input Impedance : 4.7 kOhm for input

Control Signal Type : A/B at 100 kHz for fast input (HSC mode), pulse/direction at 200 kHz for fast input (HSC mode), single phase at 200 kHz for fast input (HSC mode)

Storage Altitude : 0-3000 m

Control Signal Type : A/B at 100 kHz for fast input (HSC mode), pulse/direction at 200 kHz for fast input (HSC mode), single phase at 200 kHz for fast input (HSC mode)

Insulation : Between supply and internal logic at 500 V AC, non-insulated between supply and ground

Ambient Air Temperature For Storage : -25-70 °C
