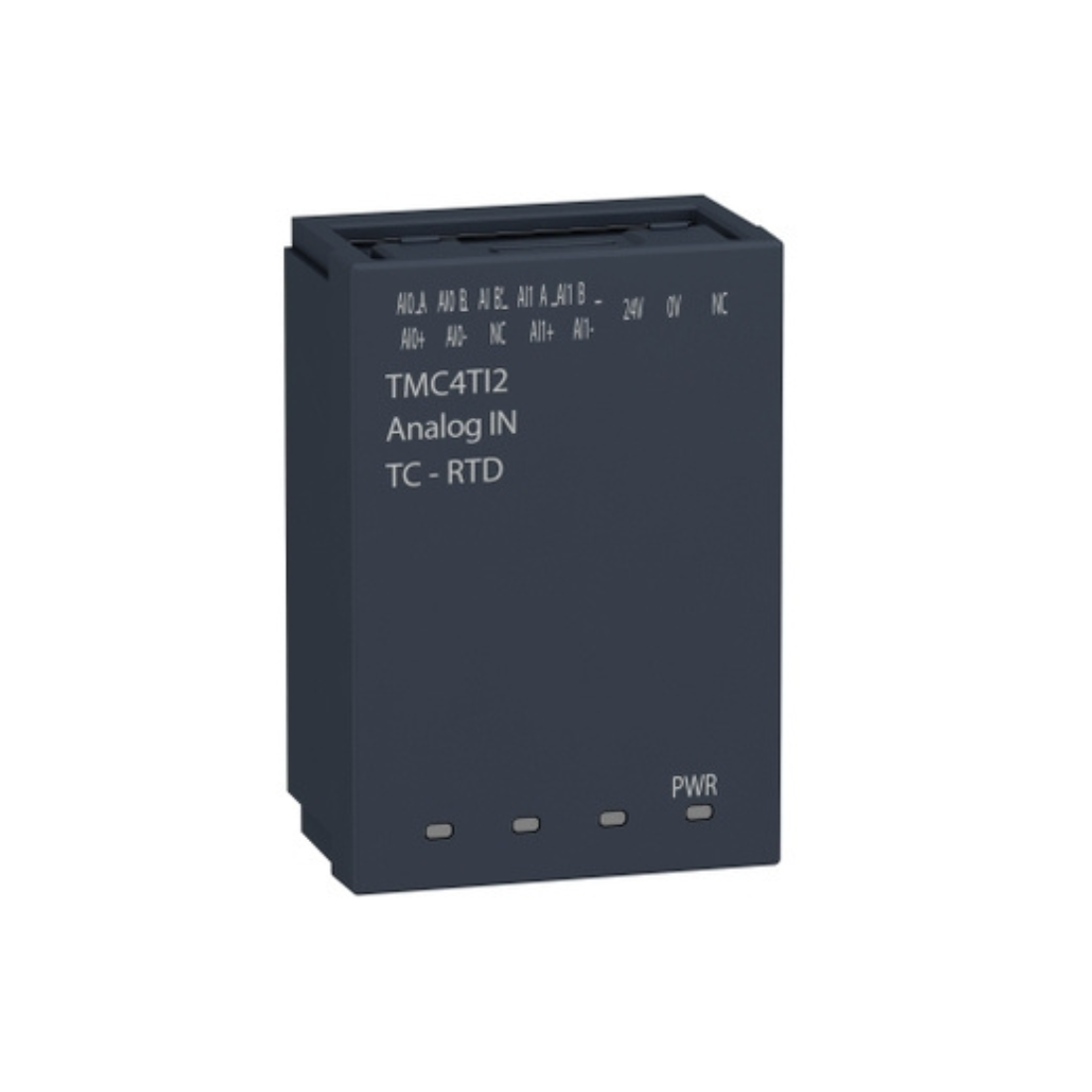

Schneider Electric Modicon M241 Analogue Input Cartridge 2 Temperature Inputs TMC4TI2
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Analogue Input Cartridge
Description
Schneider Electric TMC4TI2 Analogue Input Cartridge is part of the Modicon M241 series, a range of logic controllers for power-intensive applications. This analog input module is designed for logic controls. It offers 2 temperature inputs with 14-bit resolution. The maximum distance between shielded twisted pair cables between devices is <30 m for input. At 500 V DC, there is isolation between the input and the internal logic and no isolation between the inputs.
Schneider Electric TMC4TI2 Modicon M241 Analogue Input Cartridge is equipped with a spring terminal for electrical connection. Its dimensions are 34mm (width) x 21mm (depth) x 50mm (height). This analog input cassette is compatible with the Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications, and function blocks.
Features
- It offers 2 temperature inputs with a 14-bit resolution
- Equipped with a spring terminal for electrical connection.
- The maximum distance between shielded twisted pair cables between devices is <30 m for input.
| Brand | Schneider Electric |
| Item Name | Analog Input Cartridge |
| Model | TMC4TI2 |
| Depth | 21 mm |
| Height | 50 mm |
| IP Degree Of Protection | IP20 |
| Range Of Product | Modicon M241 |
| Supply Voltage Limits | 20.4-28.8 V |
| Immunity To Microbreaks | 10 ms |
| Width | 34 mm |
| Temperature Drift | +/- 0.008 %FS/°C |
| Analogue Input Resolution | 14 bits |
| Analogue Input Number | 2 |
| Immunity To Microbreaks | 10 ms |
| Analogue Input Type | Thermocouple - 200...1000 °C with thermocouple J, Pt 100 temperature probe - 200...850 °C, Pt 1000 temperature probe - 200...600 °C, thermocouple - 200...1300 °C with thermocouple K, thermocouple 0...1760 °C with thermocouple R, thermocouple 0...1760 °C with thermocouple S, thermocouple 0...1820 °C with thermocouple B, thermocouple - 200...400 °C with thermocouple T, thermocouple - 200...1300 °C with thermocouple N, thermocouple - 200...800 °C with thermocouple E, Ni 100/Ni 1000 temperature probe - 60...180 °C |
| Repeat Accuracy | +/- 0.1 %FS |
| LSB Value | 0.1 °C |
| Conversion Time | 20 ms |
| Maximum Cable Distance Between Devices Twisted Shielded Pairs Cable | <30 m for input |
| Non-linearity | +/- 0.05 %FS |
| Absolute Accuracy Error | +/- 0.5 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe, +/- 0.2 % of full scale at 25 °C for thermocouple K - 200...1300 °C, +/- 0.2 % of full scale at 25 °C for thermocouple J - 200...1000 °C, +/- 0.2 % of full scale at 25 °C for thermocouple E - 200...800 °C, +/- 0.2 % of full scale at 25 °C for thermocouple T - 200...400 °C, +/- 0.2 % of full scale at 25 °C for thermocouple N - 200...1300 °C, +/- 0.2 % of full scale at 25 °C for thermocouple B 250...400 °C, +/- 0.1 % of full scale at 25 °C for thermocouple B 400...1280 °C, +/- 0.2 % of full scale at 25 °C for thermocouple R, S 0...1760°C |
| Cross Talk | 80 dB |
| Sampling Duration | 100 ms |
| Permissible Continuous Overload | 6 V |
| Compatibility | Modicon M241C |
| Local Signalling | 1 LED (green) for PWR |
| Electrical Connection | 1 x 1.5 mm² 1 spring terminal block with pitch 3.81 mm adjustment for outputs and supply |
| Input Impedance | >= 1 MOhm |
| Insulation | Between input and internal logic at 500 V DC, non-insulated between inputs |
| Type of Cable | Twisted Shielded Pairs Cable |
| Weight | 0.055 kg |
