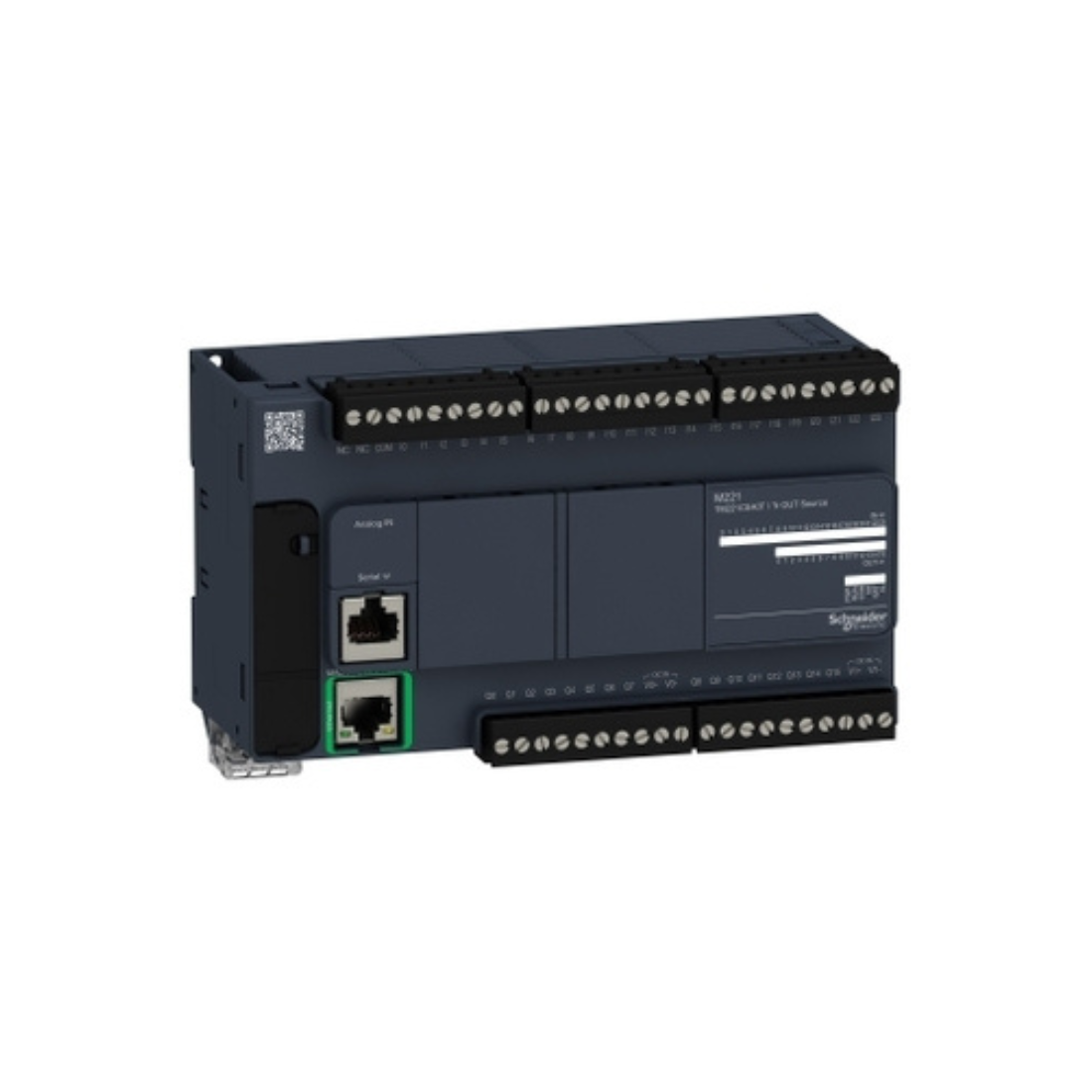

Schneider Electric Modicon M221 Logic Controller 40 I/O Transistor PNP Ethernet TM221CE40T
AED 1,340.00
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Schneider Electric
Type : Logic Controller
Collections
Description
Schneider Electric TM221CE40T Logic Controller is part of the Modicon M221 Logic Controller range. It has 40 logical I/Os and is powered by 24 V DC. It is supplied with a removable screw terminal blocks for connecting the I/Os, a removable screw terminal block for connecting the power supply, a BR2032 coin-cell backup battery, and a cable for connecting the analog inputs.
M221 logic controllers have three types of built-in communication ports: Ethernet, RS 232/RS 485 serial connection, and USB Mini-B programming port. Allows control of simple machines. The capacity of the M221 logic controllers can be expanded with the Modicon TM3 expansion module offering.
Features
- It has 40 logical I/Os and is powered by 24 V DC.
- Includes removable screw terminal blocks for connecting the I/Os
| Brand | Schneider Electric |
| Item Name | Logic Controller |
| Model | TM221CE40T |
| Resistance To Electrostatic Discharge | 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2 |
| Depth | 70 mm |
| Supply Voltage Limits | 20.4-28.8 V |
| Width | 160 mm |
| Discrete Output Current | 0.5 A |
| Supply | (serial 1)serial link supply: 5 V, <200 mA |
| Maximum Power Consumption in W | 17 W at 24 V (with max number of I/O expansion module), 4.9 W at 24 V (without I/O expansion module) |
| Data Backed Up | 256 kB built-in flash memory for backup of application and data |
| Data Storage Equipment | 2 GB SD card (optional) |
| Reset Time | 1 s automatic reset |
| Clock Drift | <= 30 s/month at 25-25 °C |
| Immunity To Microbreaks | 10 ms |
| Discrete Input Current | 7 mA for discrete input, 5 mA for fast input |
| Voltage State 1 Guaranteed | >= 15 V for input |
| Discrete Input Voltage | 24 V |
| Backup Time | 1 year at 25 °C (by interruption of power supply) |
| Voltage State 0 Guaranteed | <= 5 V for input |
| Discrete Input Number | 24 , discrete input 4 fast input conforming to IEC 61131-2 Type 1 |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3 |
| Surge Withstand | 2 kV power lines (AC) common mode conforming to EN/IEC 61000-4-5, 2 kV relay output common mode conforming to EN/IEC 61000-4-5, 1 kV I/O common mode conforming to EN/IEC 61000-4-5, 1 kV shielded cable common mode conforming to EN/IEC 61000-4-5, 0.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-5, 1 kV power lines (AC) differential mode conforming to EN/IEC 61000-4-5, 1 kV relay output differential mode conforming to EN/IEC 61000-4-5, 0.5 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5 |
| Resistance To Fast Transients | 2 kV (power lines) conforming to EN/IEC 61000-4-4, 2 kV (relay output) conforming to EN/IEC 61000-4-4, 1 kV (I/O) conforming to EN/IEC 61000-4-4, 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4, 1 kV (serial link) conforming to EN/IEC 61000-4-4 |
| Electromagnetic Emission | Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15-0.5 MHz conforming to EN/IEC 55011, conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5-300 MHz conforming to EN/IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to EN/IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to EN/IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200-1000 MHz conforming to EN/IEC 55011 |
| Analogue Input Resolution | 10 bits |
| Analogue Input Number | 2 at 0...10 V |
| Permitted Overload On Inputs | +/- 30 V DC for 5 min (maximum) for analog input, +/- 13 V DC (permanent) for analog input |
| Discrete Output Type | Transistor |
| LSB Value | 10 mV |
| Conversion Time | 1 ms per channel + 1 controller cycle time for analogue input analog input |
| Discrete Output Number | 16 transistor 2 fast output |
| Realtime Clock | With |
| Discrete Input Logic | Sink or source (positive/negative) |
| Discrete Input Voltage Type | DC |
| Maximum Number of I/O Expansion Module | 7 for Relay Output |
| Maximum Voltage Drop | <1 V |
| Maximum Tungsten Load | <12 W for output and fast output |
| Maximum Leakage Current | 0.1 mA for transistor output |
| Counting Input Number | 4 fast input (HSC mode) at 100 kHz 32 bits |
| Resistance To Conducted Disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Maximum Cable Distance Between Devices | Shielded cable: <10 m for fast input, unshielded cable: <30 m for output, unshielded cable: <30 m for digital input, unshielded cable: <1 m for analog input, shielded cable: <3 m for fast output |
| Discrete Output Logic | Positive logic (source) |
| Positioning Functions | Position PTO 2 axe(s)pulse/direction mode (100 kHz), Position PTO 1 axe(s)CW/CCW mode (100 kHz) |
| Maximum Current Per Output Common | 4 A |
| Transmission Rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 480 Mbit/s for USB |
| Discrete I/O Number | 40 |
| Configurable Filtering Time | 0 ms for input, 3 ms for input, 12 ms for input |
| Discrete Output Voltage | 24 V DC |
| Memory Capacity | 256 kB for user application and data RAM with 10000 instructions, 256 kB for internal variables RAM |
| Execution Time For 1 KInstruction | 0.3 ms for event and periodic task |
| Absolute Accuracy Error | +/- 1 % of full scale for analog input |
| Resistance To Magnetic Fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| Regulation Loop | Adjustable PID regulator up to 14 simultaneous loops |
| Exct Time For Event Task | 60 µs response time |
| Execution Time Per Instruction | 0.2 µs Boolean |
| Maximum Size of Object Areas | 512 %KW constant words, 255 %TM timers, 255 %C counters, 8000 %MW memory words, 512 %M memory bits |
| Vibration Resistance | 3.5 mm at 5-8.4 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on panel mounting, 1 gn at 8.4-150 Hz on symmetrical rail, 1 gn at 8.4-150 Hz on panel mounting |
| Ambient Air Temperature For Operation | -10-55 °C (horizontal installation), -10-35 °C (vertical installation) |
| Standards | EN/IEC 60664-1, EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Communication Port Protocol | USB port: USB - SoMachine-Network, non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet |
| Control Signal Type | A/B, pulse/direction, single phase |
| Storage Altitude | 0-3000 m |
| Ambient Air Temperature For Storage | -25-70 °C |
