Schneider Electric Modicon M221 Logic Controller 40 I/O Relay TM221C40R
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Logic Controller
Description

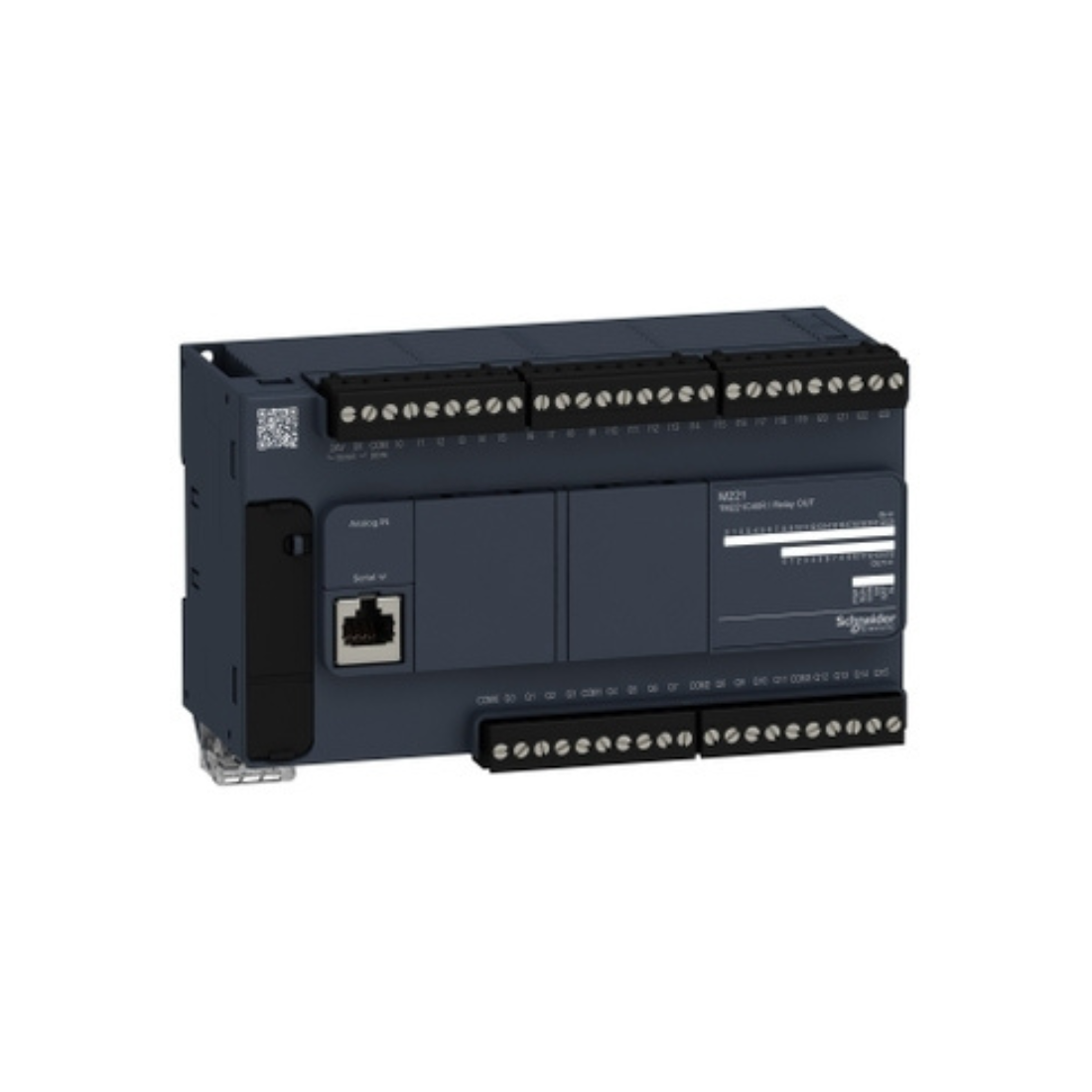

Schneider Electric TM221C40R Logic Controller is part of the Modicon M221 series, a range of programmable logic controllers for wired architectures. This logic controller offers 24 discrete inputs and 16 relay outputs with a 10-bit input resolution and a normally open relay output. It is a Modicon logic controller with a nominal supply voltage of 100 V to 240 V AC, an output voltage of 5 V to 125 V DC, 5 V to 250 V AC, and an output current of 2 A with input logic of source or sink. It requires minimal installation and offers enormous versatility. Integrated ports include a USB port with a Mini-B USB 2.0 port, a non-isolated serial port 1 with an RJ45 port and an RS485 port, and a non-isolated serial port 2 with an RJ45 port and an RS232/RS485 interface.
Schneider Electric TM221C40R Modicon M221 Logic Controller with a mains frequency of 50/60 Hz, 256 KB of internal variable RAM, application and user data RAM, an integrated flash memory of 256 KB, and an SD card storage capacity of 2 GB. It has an IP20 certification. It has CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC, and CULus certifications. Complies with EN/IEC 60664-1, EN/IEC 61131-2, and EN/IEC 61010-2-201 standards. Supports DIN rail mounting. Achieve benchmark performance with the Modicon M221 while increasing profitability through intuitive machine programming with SoMachine Basic, ready-to-use applications, and function blocks.
Features
- It offers 24 discrete inputs and 16 relay outputs with a 10-bit input resolution and a normally open relay output.
- Requires minimal installation and offers tremendous versatility.
- IP20 Protection
| Brand | Schneider Electric |
| Item Name | Logic Controller |
| Model | TM221C40R |
| Resistance To Electrostatic Discharge | 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2 |
| Depth | 70 mm |
| Supply Voltage Limits | 85-264 V |
| Width | 160 mm |
| Discrete Output Current | 2A |
| Supply | (serial 1)serial link supply: 5 V, <200 mA |
| Data Backed Up | 256 kB built-in flash memory for backup of application and data |
| Data Storage Equipment | 2 GB SD card (optional) |
| Reset Time | 1 s |
| Clock Drift | <= 30 s/month at 25-25 °C |
| Immunity To Microbreaks | 10 ms |
| Discrete Input Current | 7 mA for discrete input, 5 mA for fast input |
| Voltage State 1 Guaranteed | >= 15 V for input |
| Discrete Input Voltage | 24 V |
| Backup Time | 1 year at 25 °C (by interruption of power supply) |
| Voltage State 0 Guaranteed | <= 5 V for input |
| Discrete Input Number | 24 , discrete input 4 fast input conforming to IEC 61131-2 Type 1 |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3 |
| Surge Withstand | 2 kV power lines (AC) common mode conforming to EN/IEC 61000-4-5, 2 kV relay output common mode conforming to EN/IEC 61000-4-5, 1 kV I/O common mode conforming to EN/IEC 61000-4-5, 1 kV shielded cable common mode conforming to EN/IEC 61000-4-5, 0.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-5, 1 kV power lines (AC) differential mode conforming to EN/IEC 61000-4-5, 1 kV relay output differential mode conforming to EN/IEC 61000-4-5, 0.5 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5 |
| Resistance To Fast Transients | 2 kV (power lines) conforming to EN/IEC 61000-4-4, 2 kV (relay output) conforming to EN/IEC 61000-4-4, 1 kV (I/O) conforming to EN/IEC 61000-4-4, 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4, 1 kV (serial link) conforming to EN/IEC 61000-4-4 |
| Electromagnetic Emission | Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15-0.5 MHz conforming to EN/IEC 55011, conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5-300 MHz conforming to EN/IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to EN/IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to EN/IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200-1000 MHz conforming to EN/IEC 55011 |
| Analogue Input Resolution | 10 bits |
| Analogue Input Number | 2 at 0...10 V |
| Permitted Overload On Inputs | +/- 30 V DC for 5 min (maximum) for analog input, +/- 13 V DC (permanent) for analog input |
| Discrete Output Type | Relay normally open |
| LSB Value | 10 mV |
| Conversion Time | 1 ms per channel + 1 controller cycle time for analogue input analog input |
| Discrete Output Number | 16 relay |
| Sensor Power Supply | 24-24 V DC at 250 mA supplied by the controller |
| Realtime Clock | With |
| Discrete Input Logic | Sink or source (positive/negative) |
| Discrete Input Voltage Type | DC |
| Maximum Number of I/O Expansion Module | 7 for Relay Output |
| Counting Input Number | 4 fast input (HSC mode) at 100 kHz 32 bits |
| Resistance To Conducted Disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Maximum Cable Distance Between Devices | Shielded cable: <10 m for fast input, unshielded cable: <30 m for output, unshielded cable: <30 m for digital input, unshielded cable: <1 m for analog input |
| Maximum Current Per Output Common | 7 A |
| Transmission Rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 480 Mbit/s for USB |
| Discrete I/O Number | 40 |
| Configurable Filtering Time | 0 ms for input, 3 ms for input, 12 ms for input |
| Discrete Output Voltage | 5...125 V DC, 5...250 V AC |
| Memory Capacity | 256 kB for user application and data RAM with 10000 instructions, 256 kB for internal variables RAM |
| Execution Time For 1 KInstruction | 0.3 ms for event and periodic task |
| Absolute Accuracy Error | +/- 1 % of full scale for analog input |
| Resistance To Magnetic Fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| Maximum Power Consumption in VA | 67 VA at 100...240 V with max number of I/O expansion module, 37 VA at 100...240 V without I/O expansion module |
| Regulation Loop | Adjustable PID regulator up to 14 simultaneous loops |
| Exct Time For Event Task | 60 µs response time |
| Execution Time Per Instruction | 0.2 µs Boolean |
| Maximum Size of Object Areas | 512 %M memory bits, 512 %KW constant words, 8000 %MW memory words, 255 %C counters, 255 %TM timers |
| Vibration Resistance | 3.5 mm at 5-8.4 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on panel mounting, 1 gn at 8.4-150 Hz on symmetrical rail, 1 gn at 8.4-150 Hz on panel mounting |
| Ambient Air Temperature For Operation | -10-55 °C (horizontal installation), -10-35 °C (vertical installation) |
| Minimum Load | 1 mA at 5 V DC for relay output |
| Standards | EN/IEC 61131-2, EN/IEC 60664-1, EN/IEC 61010-2-201 |
| Communication Port Protocol | USB port: USB - SoMachine-Network, non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Control Signal Type | Single phase, pulse/direction, A/B |
| Storage Altitude | 0-3000 m |
| Switching Frequency | 20 switching operations/minute with maximum load |
| Electrical Durability | 100000 cycles AC-12, 120 V, 240 VA, resistive, 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive, 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive, 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive, 100000 cycles DC-12, 24 V, 48 W, resistive, 300000 cycles DC-12, 24 V, 16 W, resistive, 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms), 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms), 100000 cycles AC-12, 240 V, 480 VA, resistive, 300000 cycles AC-12, 120 V, 80 VA, resistive, 300000 cycles AC-12, 240 V, 160 VA, resistive, 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive, 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive, 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive |
| Ambient Air Temperature For Storage | -25-70 °C |
