Schneider Electric Modicon M221 Logic Controller 40 I/O Relay Ethernet TM221CE40R in Dubai, UAE
Schneider Electric Modicon M221 Logic Controller 40 I/O Relay Ethernet TM221CE40R in Dubai, UAE

Schneider Electric Modicon M221 Logic Controller 40 I/O Relay Ethernet TM221CE40R

Regular price AED 1,430.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Logic Controller
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

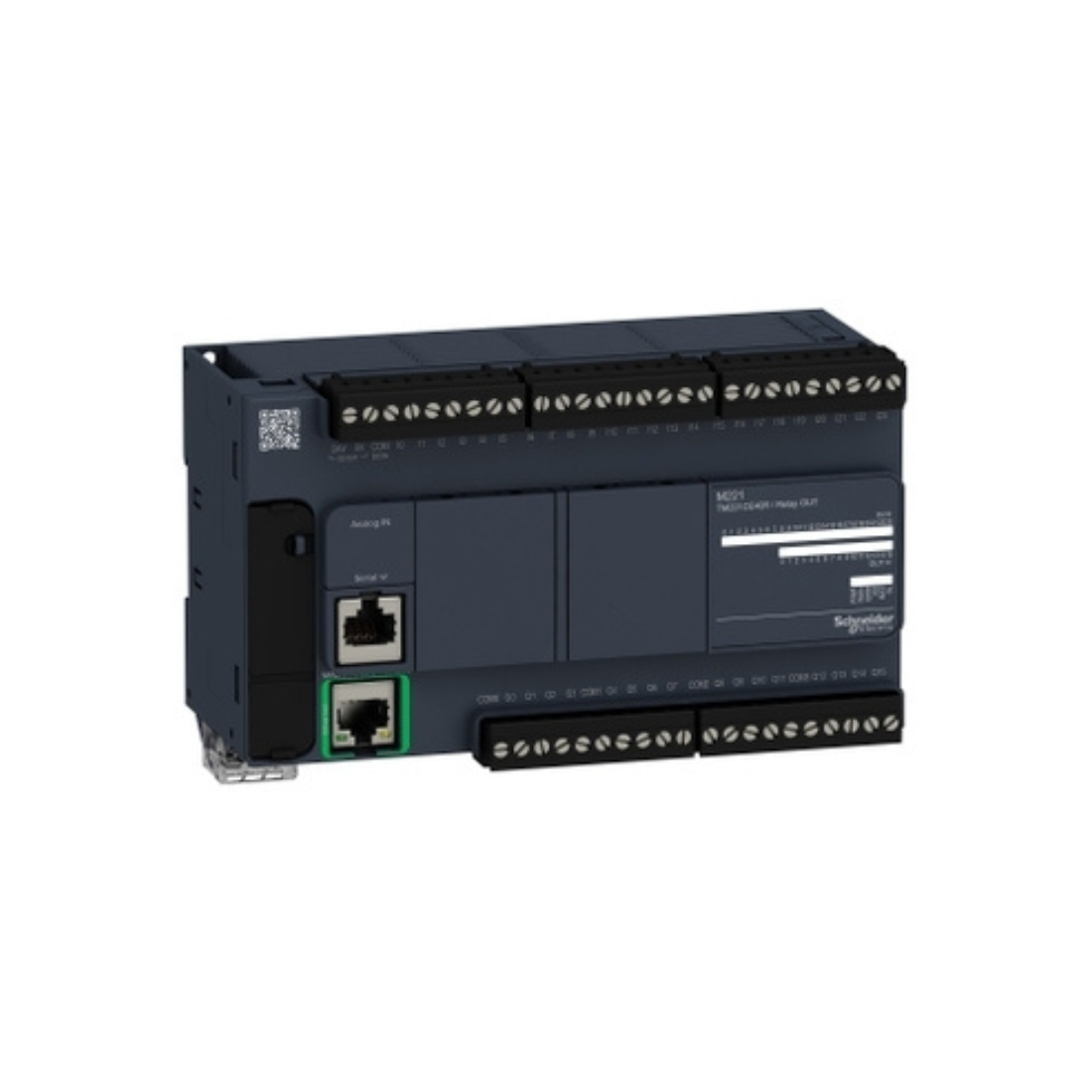

    Schneider Electric TM221CE40R Logic Controller is part of the Modicon M221 series, a range of programmable logic controllers for wired architectures. This logic controller provides 24 discrete inputs and 16 Ethernet relay outputs with 10-bit input resolution and normally open relay output. It is a Modicon logic controller with a nominal supply voltage of 100 V to 240 V AC, an output voltage of 5 V to 125 V DC, 5 V to 250 V AC, and an output current of 2 A with input logic of source or sink.

    Logic controller requires minimal installation and offers enormous versatility. Integrated ports include a USB port with Mini-B USB 2.0 port, a non-isolated serial connection Serial 1 with RJ45 port and RS232/RS485 interface, and Ethernet with RJ45 port. This is a Modicon M221 controller with a mains frequency of 50/60 Hz, 256 KB of internal variable RAM, application and user data RAM, an integrated flash memory of 256 KB, and an SD card storage capacity of 2 GB. It has an IP20 certification. Its dimensions are 160mm (width) x 70mm (depth) x 90mm (height).

    Schneider Electric TM221CE40R Modicon M221 Logic Controller has CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC, and CULus certifications. Complies with EN/IEC 60664-1, EN/IEC 61131-2, and EN/IEC 61010-2-201 standards. Supports DIN rail mounting. Achieve benchmark performance with the Modicon M221 while increasing profitability through intuitive machine programming with SoMachine Basic, ready-to-use applications, and function blocks.

    Features
    • It provides 24 discrete inputs and 16 Ethernet relay outputs with 10-bit input resolution and normally open relay output.
    • IP20 certification
    • Supports DIN rail mounting
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Logic Controller

    Model : TM221CE40R

    Resistance To Electrostatic Discharge : 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2

    Depth : 70 mm

    Supply Voltage Limits : 85-264 V

    Width : 160 mm

    Supply : (serial)Serial link supply: 5 V, <200 mA

    Data Backed Up : 256 kB built-in flash memory for backup of application and data

    Data Storage Equipment : 2 GB SD card (optional)

    Reset Time : 1 s

    Clock Drift : <= 30 s/month at 25-25 °C

    Immunity To Microbreaks : 10 ms

    Discrete Input Current : 7 mA for discrete input, 5 mA for fast input

    Voltage State 1 Guaranteed : >= 15 V for input

    Discrete Input Voltage : 24 V

    Backup Time : 1 year at 25 °C (by interruption of power supply)

    Voltage State 0 Guaranteed : <= 5 V for input

    Discrete Input Number : 24 , discrete input conforming to IEC 61131-2 Type 1

    Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3

    Surge Withstand : 2 kV power lines (AC) common mode conforming to EN/IEC 61000-4-5, 2 kV relay output common mode conforming to EN/IEC 61000-4-5, 1 kV I/O common mode conforming to EN/IEC 61000-4-5, 1 kV shielded cable common mode conforming to EN/IEC 61000-4-5, 0.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-5, 1 kV power lines (AC) differential mode conforming to EN/IEC 61000-4-5, 1 kV relay output differential mode conforming to EN/IEC 61000-4-5, 0.5 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5

    Resistance To Fast Transients : 2 kV (power lines) conforming to EN/IEC 61000-4-4, 2 kV (relay output) conforming to EN/IEC 61000-4-4, 1 kV (I/O) conforming to EN/IEC 61000-4-4, 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4, 1 kV (serial link) conforming to EN/IEC 61000-4-4

    Electromagnetic Emission : Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15-0.5 MHz conforming to EN/IEC 55011, conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5-300 MHz conforming to EN/IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to EN/IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to EN/IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to EN/IEC 55011, radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200-1000 MHz conforming to EN/IEC 55011

    Permitted Overload On Inputs : +/- 30 V DC for 5 min (maximum) for analog input, +/- 13 V DC (permanent) for analog input

    Discrete Output Type : Relay normally open

    Analogue Input Resolution : 10 bits

    LSB Value : 10 mV

    Conversion Time : 1 ms per channel + 1 controller cycle time for analogue input analog input

    Analogue Input Number : 2 at 0...10 V

    Discrete Output Number : 16 relay

    Sensor Power Supply : 24-24 V DC at 250 mA supplied by the controller

    Realtime Clock : With

    Discrete Input Logic : Sink or source (positive/negative)

    Discrete Input Voltage Type : DC

    Maximum Number Of I/O Expansion Module : 7 for relay output

    Counting Input Number : 4 fast input (HSC mode) at 100 kHz 32 bits

    Resistance To Conducted Disturbances : 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6, 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

    Maximum Cable Distance Between Devices : Shielded cable: <10 m for fast input, unshielded cable: <30 m for output, unshielded cable: <30 m for digital input, unshielded cable: <1 m for analog input

    Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 480 Mbit/s for USB

    Discrete I/O Number : 40

    Configurable Filtering Time : 0 ms for input, 3 ms for input, 12 ms for input

    Discrete Output Voltage : 5...125 V DC, 5...250 V AC

    Memory Capacity : 256 kB for user application and data RAM with 10000 instructions, 256 kB for internal variables RAM

    Execution Time For 1 KInstruction : 0.3 ms for event and periodic task

    Absolute Accuracy Error : +/- 1 % of full scale for analog input

    Resistance To Magnetic Fields : 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8

    Maximum Power Consumption in VA : 70 VA at 100...240 V with max number of I/O expansion module, 41 VA at 100...240 V without I/O expansion module

    Regulation Loop : Adjustable PID regulator up to 14 simultaneous loops

    Exct Time For Event Task : 60 µs response time

    Execution Time Per Instruction : 0.2 µs Boolean

    Maximum Size Of Object Areas : 8000 %MW memory words, 255 %TM timers, 512 %KW constant words, 255 %C counters, 512 %M memory bits

    Minimum Load : 1 mA at 5 V DC for relay output

    Vibration Resistance : 3.5 mm at 5-8.4 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on panel mounting, 1 gn at 8.4-150 Hz on symmetrical rail, 1 gn at 8.4-150 Hz on panel mounting

    Ambient Air Temperature For Operation : -10-55 °C (horizontal installation), -10-35 °C (vertical installation)

    Standards : EN/IEC 61010-2-201, EN/IEC 61131-2, EN/IEC 60664-1

    Communication Port Protocol : USB port: USB - SoMachine-Network, non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet

    Control Signal Type : single phase, A/B, pulse/direction

    Switching Frequency : 20 switching operations/minute with maximum load

    Storage Altitude : 0-3000 m

    Electrical Durability : 100000 cycles AC-12, 120 V, 240 VA, resistive, 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive, 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive, 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive, 100000 cycles DC-12, 24 V, 48 W, resistive, 300000 cycles DC-12, 24 V, 16 W, resistive, 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms), 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms), 100000 cycles AC-12, 240 V, 480 VA, resistive, 300000 cycles AC-12, 120 V, 80 VA, resistive, 300000 cycles AC-12, 240 V, 160 VA, resistive, 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive, 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive, 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive

    Ambient Air Temperature For Storage : -25-70 °C
