Schneider Electric Modicon M221 Analogue Input Cartridge 2 Analog Inputs I/O Extension TMC2AI2 in Dubai, UAE
Schneider Electric Modicon M221 Analogue Input Cartridge 2 Analog Inputs I/O Extension TMC2AI2 in Dubai, UAE

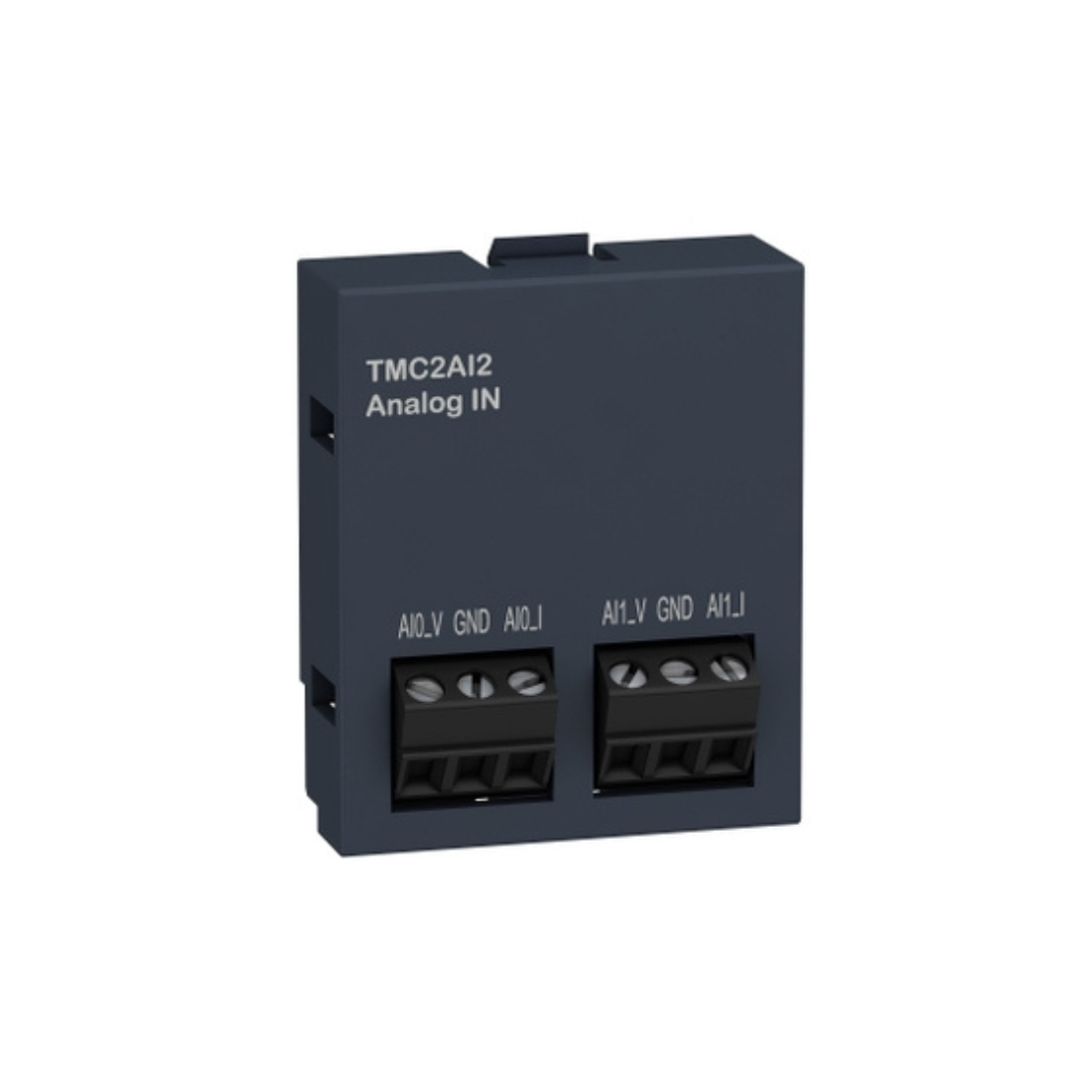

Schneider Electric Modicon M221 Analogue Input Cartridge 2 Analog Inputs I/O Extension TMC2AI2

Regular price AED 194.25
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Analogue Input Cartridge
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric TMC2AI2 2 Analogue Input Cartridge is part of the Modicon M221 series, a range of programmable logic controllers for wired architectures. This analog input Cartridge offers 2 inputs with a 12-bit input resolution. It requires minimal installation and offers enormous versatility. The maximum distance between shielded twisted pair cables between devices is <30 m for the input, there is no isolation between the analog input and the internal logic.

    Schneider Electric TMC2AI2 Modicon M221 2 Analogue Input Cartridge is equipped with a screw terminal for electrical connection. Its dimensions are 35mm (width) x 15mm (depth) x 41mm (height). It weighs 0.015 kg. This cartridge is compatible with the Modicon M221C PLC. Achieve benchmark performance with the Modicon M221 while increasing profitability through intuitive machine programming with SoMachine Basic, ready-to-use applications, and function blocks.

    Features
    • It offers 2 inputs with a 12-bit input resolution
    • It requires minimal installation and offers enormous versatility.
    • Equipped with a screw terminal for electrical connection.
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Analog Input Cartridge

    Model : TMC2AI2

    Depth : 15 mm

    Height : 41 mm

    IP Degree Of Protection : IP20

    Range Of Product : Modicon M221

    Width : 35 mm

    Temperature Drift : +/- 0.02 %FS/°C

    Analogue Input Resolution : 12 bits

    Analogue Input Number : 2

    Immunity To Microbreaks : 10 ms

    Analogue Input Type : Current 4...20 mA, current 0...20 mA, voltage 0...10 V

    Repeat Accuracy : +/- 0.5 %FS

    LSB Value : 2.44 mV 0...10 Vvoltage, 4.88 µA 0...20 mAcurrent, 3.91 µA 4...20 mAcurrent

    Conversion Time : 20 ms

    Maximum cable distance between devices : Twisted shielded pairs cable: <30 m for input

    Non-linearity : +/- 0.01 %FS

    Absolute Accuracy Error : +/- 0.1 % of full scale at 25 °C, +/- 1 % of full scale

    Cross Talk : <= 1 LSB

    Sampling Duration : 10 ms

    Permissible Continuous Overload : 13 V, analogue input type: voltage, 40 mA, analogue input type: current

    Compatibility : Modicon M221C

    Electrical Connection : 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs

    Input Impedance : <= 250 Ohm current, >= 1 MOhm voltage

    Insulation : Non-insulated between analogue input and internal logic

    Type of Cable : Twisted shielded pairs cable

    Weight : 0.015 kg
