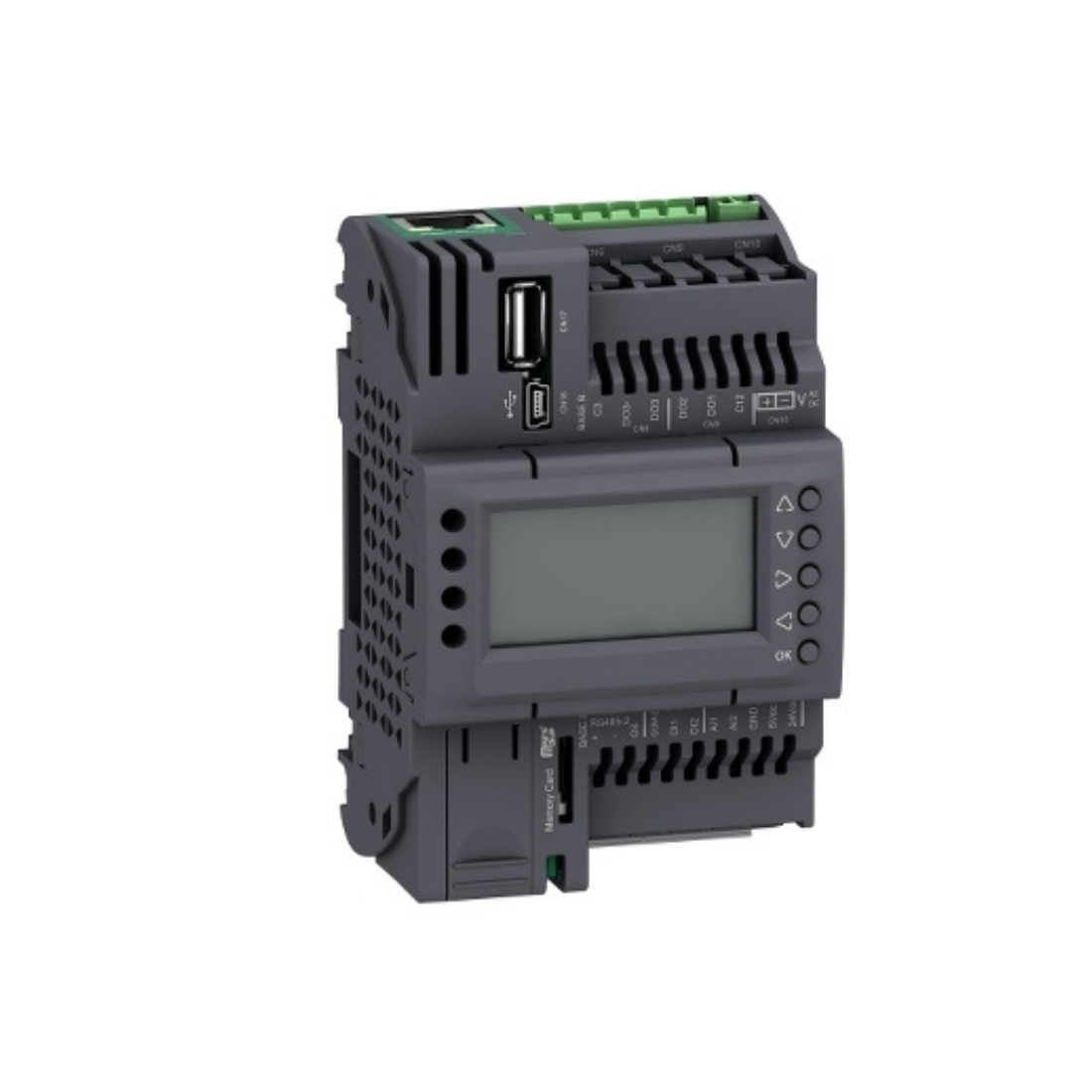

Schneider Electric Modicon M172 Performance Display 7 I/Os Ethernet Modbus TM172PDG07R

Name: Schneider Electric Modicon M172 Performance Display 7 I/Os Ethernet Modbus TM172PDG07R
Brand: Schneider Electric
Price: 1493.1 AED
Availability: InStock

AED 1,493.10

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Programmable Controllers

Description

Schneider Electric TM172PDG07R Modicon M172 Performance Display is a range of programmable controllers for HVAC solutions. This programmable controller offers 2 discrete inputs with discrete sink or source logic (positive/negative) up to 2 kHz. It is a module with a discrete input voltage of 24 V AC/DC, 5 mA. It offers 2 analog inputs that can be configured in pairs and it has 3 programming LEDs and 1 power signaling LED. It has an IP20 certification. The main application of this module is HVAC control. It weighs 0.2 kg.

Schneider Electric TM172PDG07R Modicon M172 Performance Display is certified by CE, RCM, EAC, CSA, and CURus. Complies with IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mounting and panel mounting with accessories. Modicon M171/M172 benefits maximize cost effectiveness and energy efficiency by using scalable automation control with Modicon M171/M172. Modicon M171/M172 logic controls and intuitive EcoStruxure Machine Expert – HVAC software are designed for maximum cost-effectiveness and energy efficiency.

Features

The controller supports up to 7 input/output points.
It has an integrated display
The Modbus communication protocol is used
Used for control and monitoring of various processes.
It is suitable for DIN rail mounting and panel mounting with accessories

Specifications

Brand : Schneider Electric

Item Name : Programmable Controllers

Model : TM172PDG07R

Rated Supply Voltage : 24 V +/- 10 % AC, 20...38 V DC

Depth : 60.5 mm

Operating Altitude : 0...2000 m

Overvoltage Category : II

Pollution Degree : 2

Certifications : CSA, RCM, cURus, CE, EAC

Range Of Product : Modicon M171/M172

Relative Humidity : 5-95 % non-condensing

Width : 72 mm

Discrete Output Current : 3 A for relay SPST, 3 A for relay SPDT

Discrete Input Current : 5 mA AC/DC

Discrete Input Voltage : 24 V AC/DC

Discrete Input Number : 2

Analogue Input Number : 2 configurable by pair

Analogue Input Type Voltage : NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C), NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C), voltage 0...10 V - resolution: 1 digit at > 10 kOhm, voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric), impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm, impedance 0...300 daOhm - resolution: 1 daOhm at 1500 Ohm, PTC temperature probe - 55...150 °C - resolution: 0.1 °C at 1500 Ohm, Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 1500 Ohm, current 0...20 mA/4...20 mA - resolution: 1 digit at < 150 Ohm, direct input at 10 kOhm (Dry contact)

Discrete Output Number : 1 for relay outputs SPDT with independent common, 2 for relay outputs SPST with same common

Variant : Programmable

Number Of Port : 1 CAN port - screw terminal block, 1 USB type A - USB type A female, 1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver)

Sensor Power Supply : 5-5 V DC at 40 mA supplied by the controller, 24-24 V DC at 100 mA supplied by the controller

Realtime Clock : Built-in clock at -20-60 °C

Discrete Input Logic : Sink or source (positive/negative) up to 2 kHz

Number Of Inputs/Outputs : 7

Input/Output Number : 2 digital input(s), 2 analog input(s), 3 digital output(s)

Display Type : Backlit LCD - 128 x 64 pixels

Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility

Ambient Air Temperature For Operation : -20-60 °C

Ambient Air Temperature For Storage : -30-70 °C

Standards : EN 60730-1, UL 60730-1, IEC 61000-4-6, IEC 61000-4-3, UL 60730-2-9, IEC 61000-4-4, IEC 61000-4-2, CSA E60730-2-9, IEC 61000-4-5, EN 60068-2-6 Fc, IEC 61000-4-11, EN 60730-2-9, EN 60068-2-27, CAN/CSA-E60730-1, UL94 (material V0)
