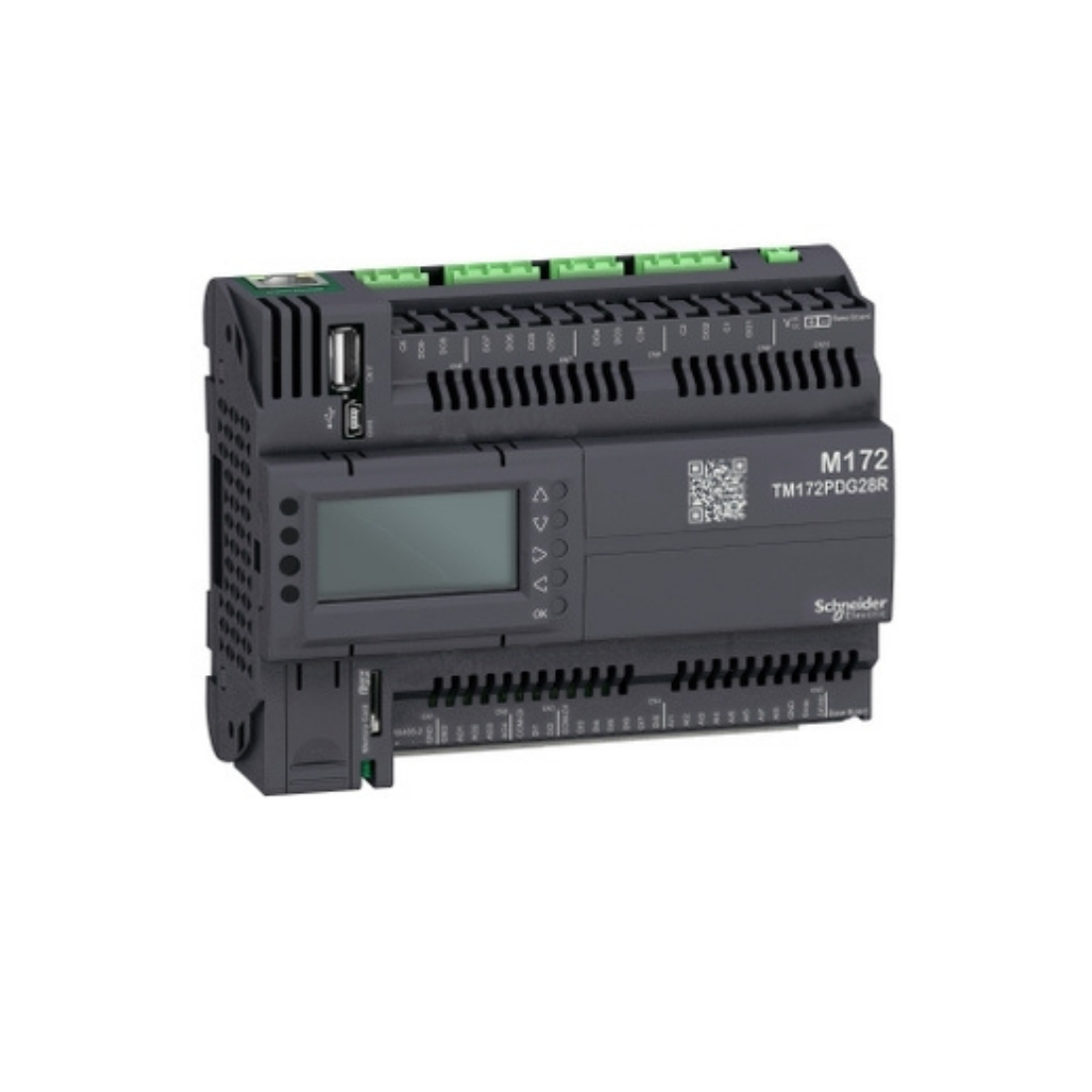

Schneider Electric Modicon M172 Performance Display 28 I/Os Ethernet Modbus TM172PDG28R
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Programmable Controllers
Description
Schneider Electric TM172PDG28R Modicon M172 Performance Display is a range of programmable controllers for HVAC solutions. This programmable controller offers 8 discrete inputs with discrete source or sink logic (positive/negative). It is a module with a discrete input voltage of 24 V AC/DC, 2.5 mA. It offers 8 analog inputs configurable in pairs and 2 analog outputs from 4 mA to 20 mA, ±0 V to ±10 V. It has 3 LEDs for programming and 1 LED for current signaling and has an IP20 certification.
The main application of this module is HVAC control. Schneider Electric TM172PDG28R Modicon M172 Performance Display is certified by CE, EAC, CSA, and CURus. Complies with EN/IEC 60730 standard. It is suitable for panel mounting with accessories. Modicon M171/M172 benefits maximize cost effectiveness and energy efficiency by using scalable automation control with Modicon M171/M172. Modicon M171/M172 logic controls and intuitive EcoStruxure Machine Expert – HVAC software are designed for maximum cost-effectiveness and energy efficiency.
Features
- The controller supports up to 28 input/output points.
- It has an integrated display
- The Modbus communication protocol is used
- Used for control and monitoring of various processes.
- It is suitable for panel mounting with accessories.
| Brand | Schneider Electric |
| Item Name | Programmable Controllers |
| Model | TM172PDG28R |
| Rated Supply Voltage | 24 V +/- 10 % AC, 20...38 V DC |
| Depth | 60.5 mm |
| Height | 110 mm |
| IP Degree Of Protection | IP20 |
| Mounting Support | Panel mounting with accessory, DIN rail |
| Operating Altitude | 0...2000 m |
| Overvoltage Category | II |
| Pollution Degree | 2 |
| Certifications | EAC, CSA, CE, cURus |
| Range Of Product | Modicon M171/M172 |
| Relative Humidity | 5-95 % non-condensing |
| Width | 144 mm |
| Discrete Output Current | 1 A for relay SPDT, 3 A for relay SPST |
| Discrete Input Current | 2.5 mA |
| Discrete Input Voltage | 24 V AC/DC |
| Discrete Input Number | 8 |
| Analogue Input Number | 8 configurable by pair |
| Analogue Input Type Voltage | Impedance 0...1500 hOhm, impedance 0...300 daOhm, NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended), voltage 0...10 V, NTC temperature probe - 40...150 °C - resolution: 0.1 °C, current 0...20 mA/4...20 mA, PTC temperature probe - 55...150 °C - resolution: 0.1 °C, voltage 0...5 V (absolute or ratiometric), Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C |
| Analogue Output Number | 2 voltage, range: 0...10 V, 2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz) |
| Discrete Output Number | 1 for relay outputs SPDT with independent common, 3 for relay outputs SPST with same common, 2 for relay outputs SPST with same common, 2 for relay outputs SPST with independent common |
| Variant | Programmable |
| Number Of Port | 1 CAN port - screw terminal block, 1 USB type A - USB type A female, 1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver) |
| Sensor Power Supply | 5-5 V DC at 50 mA supplied by the controller, 24-24 V DC at 150 mA supplied by the controller |
| Realtime Clock | Built-in clock at -20-60 °C |
| Discrete Input Logic | Sink or source (positive/negative) |
| Number Of Inputs/Outputs | 28 |
| Input/Output Number | 8 digital input(s), 8 analog input(s), 4 analog output(s), 8 digital output(s) |
| Display Type | LCD display - 128 x 64 pixels |
| Input Impedance | 20 kOhm |
| Directives | 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive |
| Ambient Air Temperature For Operation | -20-60 °C conforming to UL 60730-1, -20-65 °C with derating conforming to UL 60730-1 |
| Ambient Air Temperature For Storage | -30-70 °C |
| Local Signalling | 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power |
| Standards | EN/IEC 60730, UL94 (material V0) |
| Weight | 0.3kg |
