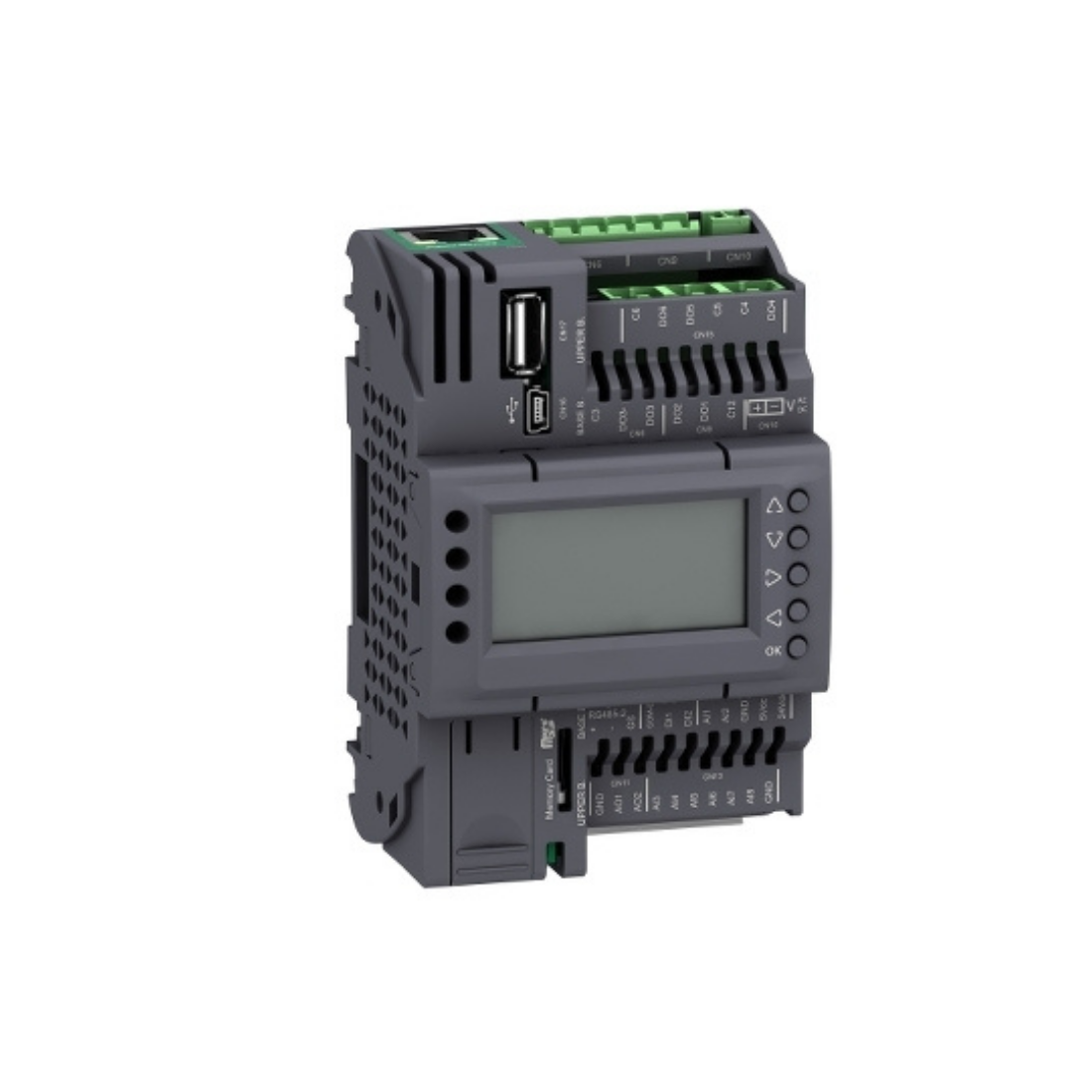

Schneider Electric Modicon M172 Performance Display 18 I/Os Ethernet Modbus TM172PDG18R
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Programmable Controllers
Description
Schneider Electric TM172PDG18R Modicon M172 Performance Display is a range of programmable controllers for HVAC solutions. This programmable controller offers 2 discrete inputs with discrete sink or source logic (positive/negative) up to 2 kHz. It is a module with a discrete input voltage of 24 V AC/DC, 5 mA and it has 3 programming LEDs and 1 power signaling LED. It has an IP20 certification. The main application of this module is HVAC control. It weighs 0.225 kg.
Performance Display is certified by CE, RCM, EAC, CSA, and CURus. Complies with IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mounting and panel mounting with accessories. Modicon M171/M172 benefits maximize cost effectiveness and energy efficiency by using scalable automation control with Modicon M171/M172. Modicon M171/M172 logic controls and intuitive EcoStruxure Machine Expert – HVAC software are designed for maximum cost-effectiveness and energy efficiency.
Features
- The controller supports up to 18 input/output points.
- It has an integrated display
- The Modbus communication protocol is used
- Used for control and monitoring of various processes.
- It is suitable for DIN rail mounting and panel mounting with accessories
| Brand | Schneider Electric |
| Item Name | Programmable Controllers |
| Model | TM172PDG18R |
| Rated Supply Voltage | 24 V +/- 10 % AC, 20...38 V DC |
| Depth | 60.5 mm |
| Operating Altitude | 0...2000 m |
| Overvoltage Category | II |
| Pollution Degree | 2 |
| Certifications | CSA, RCM, cURus, CE, EAC |
| Range Of Product | Modicon M171/M172 |
| Relative Humidity | 5-95 % non-condensing |
| Width | 72 mm |
| Discrete Output Current | 3 A for relay SPST, 3 A for relay SPDT |
| Discrete Input Current | 5 mA AC/DC |
| Discrete Input Voltage | 24 V AC/DC |
| Discrete Input Number | 2 |
| Analogue Input Number | 8 configurable by pair |
| Analogue Input Type Voltage | NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C), NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C), voltage 0...10 V - resolution: 1 digit at > 10 kOhm, voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric), impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm, impedance 0...300 daOhm - resolution: 1 daOhm at 1500 Ohm, PTC temperature probe - 55...150 °C - resolution: 0.1 °C at 1500 Ohm, Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 1500 Ohm, current 0...20 mA/4...20 mA - resolution: 1 digit at < 150 Ohm, direct input at 10 kOhm (Dry contact) |
| Analogue Output Number | 2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz) |
| Discrete Output Number | 1 for relay outputs SPDT with independent common, 2 for relay outputs SPST with same common, 3 for relay outputs SPST with independent common |
| Variant | Programmable |
| Number Of Port | 1 CAN port - screw terminal block, 1 USB type A - USB type A female, 1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver) |
| Sensor Power Supply | 5-5 V DC at 40 mA supplied by the controller, 24-24 V DC at 100 mA supplied by the controller |
| Realtime Clock | Built-in clock at -20-60 °C |
| Discrete Input Logic | Sink or source (positive/negative) up to 2 kHz |
| Number Of Inputs/Outputs | 18 |
| Input/Output Number | 2 analog output(s), 6 digital output(s), 8 analog input(s), 2 digital input(s) |
| Display Type | Backlit LCD - 128 x 64 pixels |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Ambient Air Temperature For Operation | -20-60 °C |
| Ambient Air Temperature For Storage | -30-70 °C |
