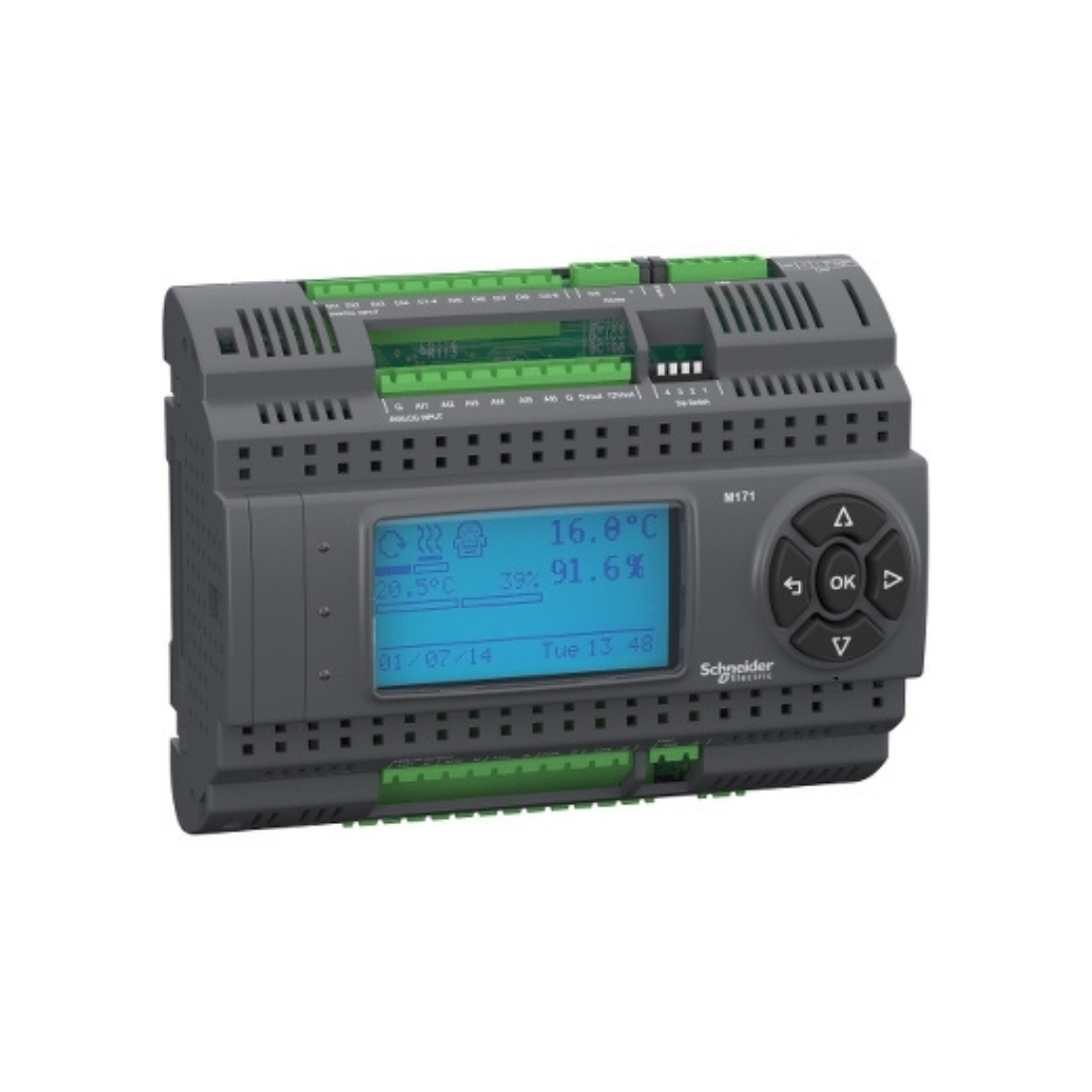

Schneider Electric Modicon M171 Performance Display 27 I/Os Modbus TM171PDM27R

Regular price AED 2,475.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Programmable Controllers
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric TM171PDM27R Modicon M171 Performance Display is a programmable controller designed for applications requiring control and monitoring of various processes. It has an integrated display, which will likely allow local monitoring and basic configuration without the need for additional devices. The controller supports up to 27 input/output points. Inputs are typically used to receive signals, while outputs are used to send signals.

    Modbus is a communication protocol widely used in industrial automation. It allows communication between different devices on a network, including controllers, sensors, and other devices. The Modicon M171 is likely to support Modbus as a communication medium, which would allow for easy integration with other Modbus-compatible devices.

    Schneider Electric TM171PDM27R Modicon M171 Performance Display is likely to be used in various industrial applications where process control and monitoring are required. This could include manufacturing, process control, and other automation applications.

    Features
    • The controller supports up to 27 input/output points.
    • It has an integrated display
    • The Modbus communication protocol is used
    • Used for control and monitoring of various processes.
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Programmable Controllers

    Model : TM171PDM27R

    Rated Supply Voltage : 24 V +/- 20 % AC/DC, 48 V +/- 20 % DC

    Depth : 10 mm

    Height : 96 mm

    IP Degree Of Protection : IP20 place

    Mounting Support : Flush Mounting

    Overvoltage Category : II

    Pollution Degree : 2

    Certifications : CE, CSA, cURus, EAC

    Range Of Product : Modicon M171/M172

    Relative Humidity : 10-90 % non-condensing

    Discrete Output Current : 8 A for relay SPDT, 5 A for relay SPST

    Discrete Input Current : 2.5 mA

    Discrete Input Voltage : 24 V AC/DC, 48 V DC

    Discrete Input Number : 8

    Analogue Input Number : 2 Analog input NTC, 4 configurable

    Analogue Input Type Voltage : 0...5 V (ratiometric), current 4...20 mA, impedance 0...1500 hOhm, impedance 0...300 daOhm, NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended), voltage 0...10 V, Pt 1000 temperature probe - 200...800 °C - resolution: 0.1 °C, NTC temperature probe - 40...150 °C - resolution: 0.1 °C

    Analogue Output Number : 3 voltage/current, range: 4...20 mA or 0...10 V, 2 open collector, range: 1 kHz, 12 V, 35 mA

    Discrete Output Number : 3 for relay outputs SPST with same common, 2 for relay outputs SPST with same common, 2 for relay outputs SPDT with independent common

    Variant : Programmable

    Number Of Port : 1 CAN port - screw terminal block, 1 USB type A - USB type A female, 1 USB type mini B - USB device port Mini-B, 1 RS485 - screw terminal block (Modbus serial link)

    Sensor Power Supply : 5-5 V DC at 50 mA, 12-12 V DC at 150 mA

    Realtime Clock : Built-in clock at -10-55 °C

    Discrete Input Logic : Sink or source (positive/negative)

    Number Of Inputs/Outputs : 27

    Input/Output Number : 6 Analog input(s), 5 analog
    output(s), 8 digital input(s), 7 digital output(s), 1 high-speed counter(s)

    Display Type : LCD display - 128 x 64 pixels

    Input Impedance : 20 kOhm

    Directives : 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive

    Width : 160 mm

    Ambient Air Temperature For Operation : -10-55 °C conforming to UL 60730-1

    Ambient Air Temperature For Storage : -20-85 °C

    Local Signalling : 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable

    Standards : EN/IEC 60730

    Weight : 0.32 kg
